3.7 V Rechargeable Battery Charger Rechargeable Aaa Battery Charger Fast Rechargeable Battery Charger

• Max Output Power: 20W

• PD output: 5V3A, 9V2.22A, 12V1.67A

• UL,FCC,CE,CB,UKCA,SAA,KC,PSE,CCC,EAC etc for different countries

• Meet the US DoE level VI, EU CoC Tier 2 efficiency standards

This product suitable for battery device, mobile phone, mini player, power bank, IT product, razor, shaver, electric toy

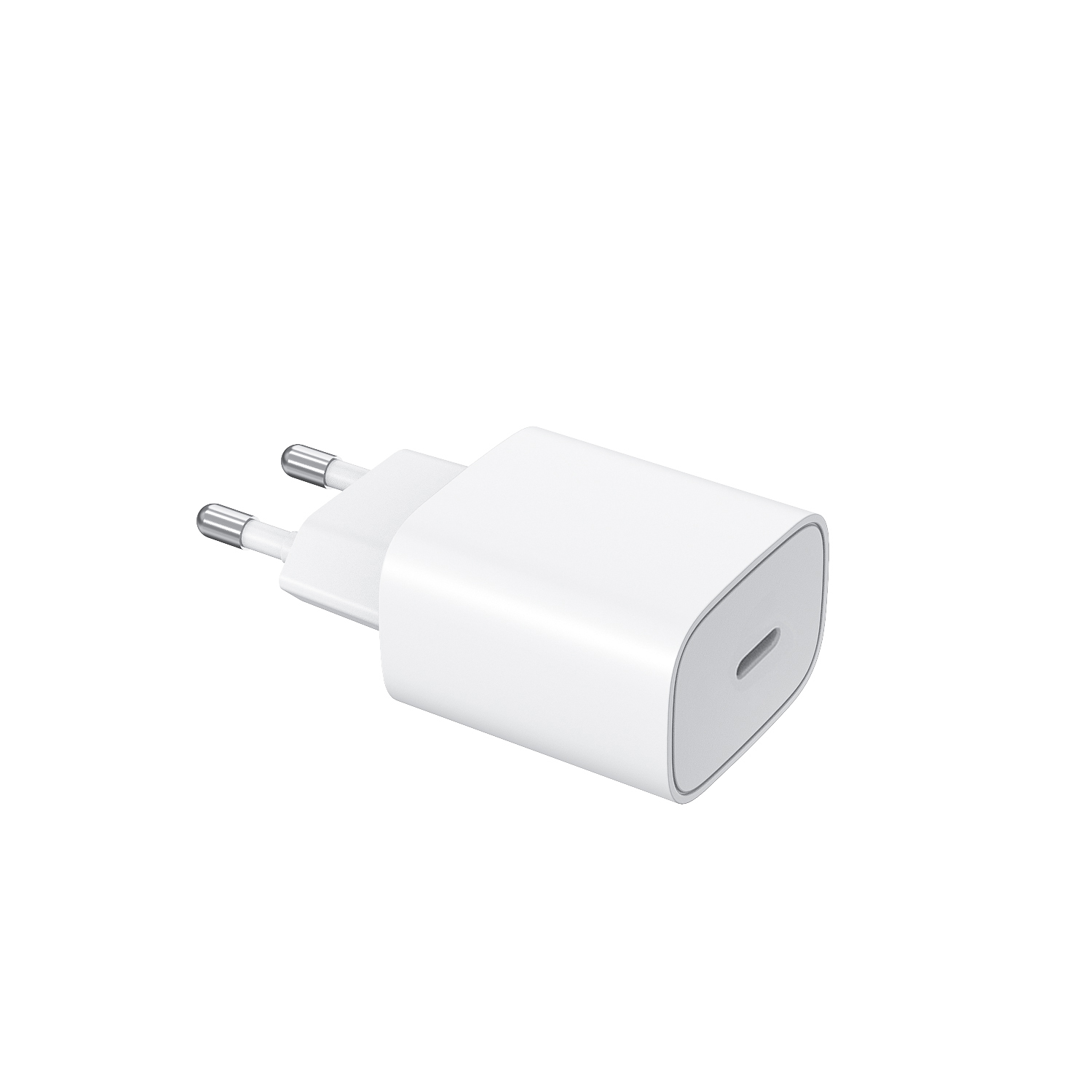

FEATURES		SAFETIES APPROVALS		PRODUCTS PICTURE
v EFFICIENCY VI v 20W PD OUTPUT POWER v OVERCURRENT PROTECTION v SHORT CIRCUIT PROTECTION v INPUT PROTECTION v Many colors for choice		v UL,FCC v CB,CE,UKCA v SAA,PSE,CCC,KC v REACH, ROHS
TYPICAL MODEL LIST
I/P Voltage	Typical model	Output Voltage	Output Current	Ripple & noise		Efficiency Level
90 - 264V 47 - 63HZ	DO03A	5V	3000mA	30mV		6 L VI
	DO03A	5V	3000mA	30mV		6 L VI
	DO03A	9V	2220mA	40mV		6 L VI
	DO03A	9V	2220mA	40mV		6 L VI
	DO03A	12V	1670mA	50mV		6 L VI
	DO03A	12V	1670mA	50mV		6 L VI
INPUT SPECIFICATIONS			GENERAL SPECIFICATIONS
Input Voltage		90〜264VAC	Primary to Secondary		50MΩ MIN
Input Frequency		47〜63Hz	Efficiency		VI
Input Current		0.5A Max	Standby Power		0.2W MAX
Inrush Current		40A Max	Leakage Current		0.25mA MAX
OUTPUT SPECIFICATIONS			ENVIRONMENTAL SPECIFICATIONS
Output Voltage Range		5V / 9V / 12V	Operating Temperature		10°C~40°C
Output Current Range		100mA-3000mA	Cooling		Convection
Output Power Range		20W Max	Temperature Coefficient		0.05%/°C
Short Circuit Protection		Automatic Recovery	Humidity		5~95%RH(non-condensing)
Over-Current Protection		Automatic Recovery	Storage Temperature		-20°C~+80%°C
Ripple and Noise		100mVp-p max	PHYSICAL SPECIFICATIONS
Turn On Time		20-30mS normal	Physical Specifications		43mm *28mm *41mm
Line Regulation		1% max	SAFETIES STANDARD
Output Regulation		±5%	Safeties Standard		62368 / 60950 / 61558
