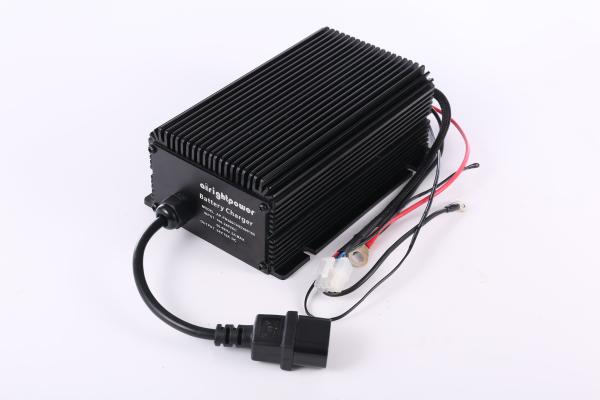

360W Lithium Ion Battery Charger 8 AA Battery Charger Rechargeable Battery Charger

• Max Output Power: 360W

• Typical output: 12V15A, 24V10A, 36V7A,48V6A, etc

• UL,FCC,CE,CB, UKCA, KC, PSE, CCC, etc Certifications

• Meet very high efficiency standards

• Custome make DC connector

深圳市盈源电子有限公司 Shenzhen YingYuan Electronics Co., Ltd Address:The 4-7th Floor, Building 8, HongYe Industrial Park, XiXiang Town, BaoAn District, ShenZhen, China
Specifications			PRODUCTS PICTURE
360W BATTERY CHAEGER l AC Input Voltage Range:AC100V～AC240V l AC Input Frequency: 45～65HZ l AC Power Factor Correction: ≥0.98 l Output Voltage:12V～60V l Output Current:15A(Max) l Full Load Efficiency: ≥90% l Shock & Vibration: 10～50HZ 2G 10 minutes,X,Y,Z /60 minutes l Operating Temperature: -20ºC～+45ºC(-20ºF～+113ºF) l Storage Temperature: -40ºC～+85ºC(-40ºF～+185ºF) l Dimensions (mm):(L)183х(W)122.5х(H)69 l Net Weight: 2kg
TYPICAL MODEL LIST
Charger Model	Rated Input Voltage	Battery Standard Voltage	Maximum charging Current	Maximum charging Current
AP-PN360CH01460150	100-240	12	14.6	15
AP-PN360CH02920100	100-240	24	29.2	10
AP-PN360CH04200070	100-240	36	42	7
AP-PN360CH05460060	100-240	48	54.6	6
AP-PN360CH01200150	100-240	12	14.6	15
AP-PN360CH02400100	100-240	24	29.2	10
AP-PN360CH03600070	100-240	36	42	7
AP-PN360CH04800060	100-240	48	54.6	6
SPECIFICATIONS
AC Input Voltage Range:	AC100V～AC240V	Shock & Vibration:	10～50HZ 2G 10 minutes,X,Y,Z /60 minutes
AC Input Frequency:	45～65HZ	Operating Temperature:	-20ºC～45ºC(-20ºF～+113ºF)
AC Power Factor Correction:	≥0.98	Storage Temperature:	-40ºC～+85ºC(-40ºF～185ºF)
Output Voltage:	12V～60V	Dimensions (mm):	(L)183х(W)122.5х(H)69
Output Current:	15A(Max)	Net Weigh:	2kg
Full Load Efficiency:	≥90%	Certifications	UL CE FCC RoHs
Protections	Thermal Self-Protection Charger will be stopped automatically when reaches to Maximum temperature , LED light will be red to warn it
	Short- circuit Protection When Short Circuit happened ,charger will turn off
	Reverse Connection Protection When the battery is polarity reversed ,the charger will cut off the connection between the circuit and the battery
	Battery Broken protection When some battery broke ,battery can not reach 100% full-charged ,charger will be shut down automatically
Application	Forklift/ground washer/electric motorcycle and so on
MECHANICAL SPECIFICATION			PACKING DETAILS
			2kg/pcs 12pcs/Carton Carton size: 580*480*185mm

This product has different charging modes basic on different types battery and can trace the charging process correctly.

Main application of charger: e-bike, e-scooters, forklift, Delivery robot, ground washer, electric motorcycle, golf cart, low speed car and so on.
