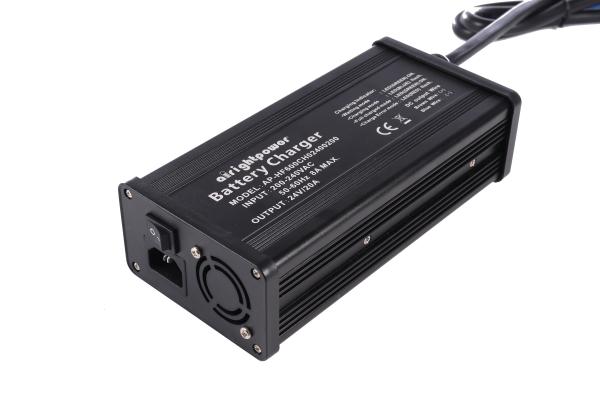

600W Ce Fcc Etl 60v Lithium Battery Charger Universal Battery Charger For Power Tools

• Max Output Power: 600W

• Typical output: 12V25A, 24V20A, 36V15A, 48V12A, 60V10A 72V8A etc

• FCC, ETL, CE, UKCA, KC, PSE etc Certifications

• Meet very high efficiency standards, Low standby power

• All kinds of DC connector

深圳市盈源电子有限公司 Shenzhen YingYuan Electronics Co., Ltd Address:The 4-7th Floor, Building 8, HongYe Industrial Park, XiXiang Town, BaoAn District, ShenZhen, China
Specifications			PRODUCTS PICTURE
600W BATTERY CHAEGER l AC Input Voltage Range: AC100V/AC220V l AC Input Frequency: 45～65HZ l AC Power Factor Correction: ≥0.55 l Output Voltage:12V～90V l Output Current:25A(Max) l Full Load Efficiency: ≥90% l Shock & Vibration: 10～50HZ 2G 10 minutes,X,Y,Z /60 minutes l Operating Temperature: -20ºC～+45ºC(-20ºF～+113ºF) l Storage Temperature: -40ºC～+85ºC(-40ºF～+185ºF) l Dimensions (mm):(L)204х(W)100х(H)55 l Net Weight: 1.8kg
TYPICAL MODEL LIST
Charger Model	Rated Input Voltage	Battery Standard Voltage	Maximum charging Current	Maximum charging Current
AP-H/LF600CH01460250	110/220	12	14.6	25
AP-H/LF600CH02920200	110/220	24	29.2	20
AP-H/LF600CH04200150	110/220	36	42	15
AP-H/LF600CH05460120	110/220	48	54.6	12
AP-H/LF600CH07140100	110/220	60	71.4	10
AP-H/LF600CH08400080	110/220	72	84	8
AP-H/LF600CH01200250	110/220	12	14.7	25
AP-H/LF600CH02400200	110/220	24	29.4	20
AP-H/LF600CH03600150	110/220	36	44.1	15
AP-H/LF600CH04800120	110/220	48	58.8	12
AP-H/LF600CH06000100	110/220	60	73.5	10
AP-H/LF600CH07200080	110/220	72	88.2	8
SPECIFICATIONS
AC Input Voltage Range:	AC100V/AC220V	Shock & Vibration:	10～50HZ 2G 10 minutes,X,Y,Z /60 minutes
AC Input Frequency:	45～65HZ	Operating Temperature:	-20ºC～45ºC(-20ºF～+113ºF)
AC Power Factor Correction:	≥0.55	Storage Temperature:	-40ºC～+85ºC(-40ºF～185ºF)
Output Voltage:	12V～90V	Dimensions (mm):	(L)203х(W)100х(H)55
Output Current:	25A(Max)	Net Weigh:	1.8kg
Full Load Efficiency:	≥90%	certifications	UL CE FCC RoHs
Protections	Thermal Self-Protection Charger will be stopped automatically when reaches to Maximum temperature , LED light will be red to warn it
	Short- circuit Protection When Short Circuit happened ,charger will turn off
	Reverse Connection Protection When the battery is polarity reversed ,the charger will cut off the connection between the circuit and the battery
	Battery Broken protection When some battery broke ,battery can not reach 100% full-charged ,charger will be shut down automatically
Application	Forklift/ground washer/electric motorcycle and so on

MECHANICAL SPECIFICATION

Features:
1: work with different charging modes according to different battery,

2: can trace the charging process.
3: Suitable for many product: tricycles, scooters,forklift, ground washer, sightseeing car, cleaning car, delivery car, delivery robot, industrial robot.

4: Very compatitive price than other factory

5: Very good service.

We are specialized in the design, manufacture of 5W to 120W power supplies, vehicle power adapters, USB chargers, and 100W to 3600W battery chargers. Almost all our products are with safety approvals such as UL, CE, GS, RCM, PSE, KC, KCC, BS, CCC, and so on. Our customers are from all over the world including the United States, Canada, Europe, Japan, Korea, and so on.

Our R& D department has more than 30 professional technicians and engineers. During these years, we have developed hundreds of products and obtained more than 30 patents. Our battery charger and usb charger factory is equipped with a total of 8 automatic production lines. And thanks to modern production and testing devices, our factory stable output can reach 2.4Millions units/ month.

Always attaching great importance to product quality and environmental protection, we are approved by the ISO9001 quality management system and ISO14001 environment management system. Over the years, our factory has won credibility from numerous Chinese and international customers. Our ideas are Integrity, Dedication, Practicability, innovation and to be one of the leaders in this industry. Warmly welcome you to visit us and make win-win cooperation!
