ABS PC 9V 3A 30W USB C Power Adapter 5V 3A 12V 2A 15V 2A 20V 1.5A Customized

Shenzhen Ying Yuan Electronics Co., Ltd.
Contact Now
    Buy cheap ABS PC 9V 3A 30W USB C Power Adapter 5V 3A 12V 2A 15V 2A 20V 1.5A Customized from wholesalers

    Buy cheap ABS PC 9V 3A 30W USB C Power Adapter 5V 3A 12V 2A 15V 2A 20V 1.5A Customized from wholesalers
    • Buy cheap ABS PC 9V 3A 30W USB C Power Adapter 5V 3A 12V 2A 15V 2A 20V 1.5A Customized from wholesalers
    • Buy cheap ABS PC 9V 3A 30W USB C Power Adapter 5V 3A 12V 2A 15V 2A 20V 1.5A Customized from wholesalers
    • Buy cheap ABS PC 9V 3A 30W USB C Power Adapter 5V 3A 12V 2A 15V 2A 20V 1.5A Customized from wholesalers

    ABS PC 9V 3A 30W USB C Power Adapter 5V 3A 12V 2A 15V 2A 20V 1.5A Customized

    Ask Lasest Price
    Brand Name : Fullpower
    Model Number : C1802
    Certification : FCC,UL,CE,UKCA,SAA,KC,PSE,CCC,etc
    Payment Terms : T/T, Western Union
    Supply Ability : 100000PCS/Day
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    ABS PC 9V 3A 30W USB C Power Adapter 5V 3A 12V 2A 15V 2A 20V 1.5A Customized

    30W USB-C Power Adapter 5V3A 9V3A 12V2A 15V2A 20V1.5A Or Fixed Output AU EU UK US Plugs


    About Yingyuan:

    Our company has equipment like ad-vanced testing instruments, high temperature ovens, tensile testers, UV testers, salt spray testers,two-dimensional

    measuring instruments, automatic welding machines,injection molding machines,automatic testing machines, extrusion out of the machine, automatic

    punching, reflow soldering, auto-matic high-speed punching, these equipment to strictly control the product quality. Adheres to the corevalues of "hard

    work, respect for nature and love, and keep improving" , continues to innovate producttechnology, improves product quality, improves product productivity, and strengthens operation andmanagement. Adhering to the business philosophy of "the greatest value of enterprise operation is tobenefit more people", we are responsible for users, and win-win with customers.Facing the future fulof opportunities and challenges, Zhize technology is willing to join hands with all customers to create abetter tomorrow.


    Data-sheet

    FEATURESSAFETIES APPROVALSPRODUCTS PICTURE

    v EFFICIENCY VI

    v 30W PD OUTPUT POWER

    v OVERCURRENT PROTECTION

    v SHORT CIRCUIT PROTECTION

    v INPUT PROTECTION

    v Interchangeable AC plugs


    Interchangeable Plug

    v UL,FCC

    v CB,CE,UKCA

    v SAA,PSE,CCC,KC

    v REACH, ROHS


    TYPICAL MODEL LIST
    I/P VoltageTypical modelOutput VoltageOutput CurrentRipple & noiseEfficiency

    90 - 264V

    47 - 63HZ

    C8025V3000mA30mV6 VI Level
    C802​9V3000mA30mV6 VI Level
    C802​12V2000mA40mV6 VI Level
    C802​15V2000mA40mV6 VI Level
    C802​20V1500mA50mV6 VI Level
    C802​5V3000mA50mV6 VI Level
    INPUT SPECIFICATIONSGENERAL SPECIFICATIONS
    Input Voltage90〜264VACPrimary to Secondary50MΩ MIN
    Input Frequency47〜63HzEfficiencyVI
    Input Current0.5A MaxStandby Power0.2W MAX
    Inrush Current40A MaxLeakage Current0.25mA MAX
    OUTPUT SPECIFICATIONSENVIRONMENTAL SPECIFICATIONS
    Output Voltage Range5V/ 9V/ 12V/ 15V/ 20VOperating Temperature10°C~40°C
    Output Current Range100mA-3000mACoolingConvection
    Output Power Range30W MaxTemperature Coefficient0.05%/°C
    Short Circuit ProtectionAutomatic RecoveryHumidity5~95%RH(non-condensing)
    Over-Current ProtectionAutomatic RecoveryStorage Temperature-20°C~+80%°C
    Ripple and Noise100mVp-p maxPHYSICAL SPECIFICATIONS
    Turn On Time20-30mS normalPhysical Specifications53mm *53mm *28mm
    Line Regulation1% maxSAFETIES STANDARD
    Output Regulation±5%Safeties Standard62368 / 60950 / 61558

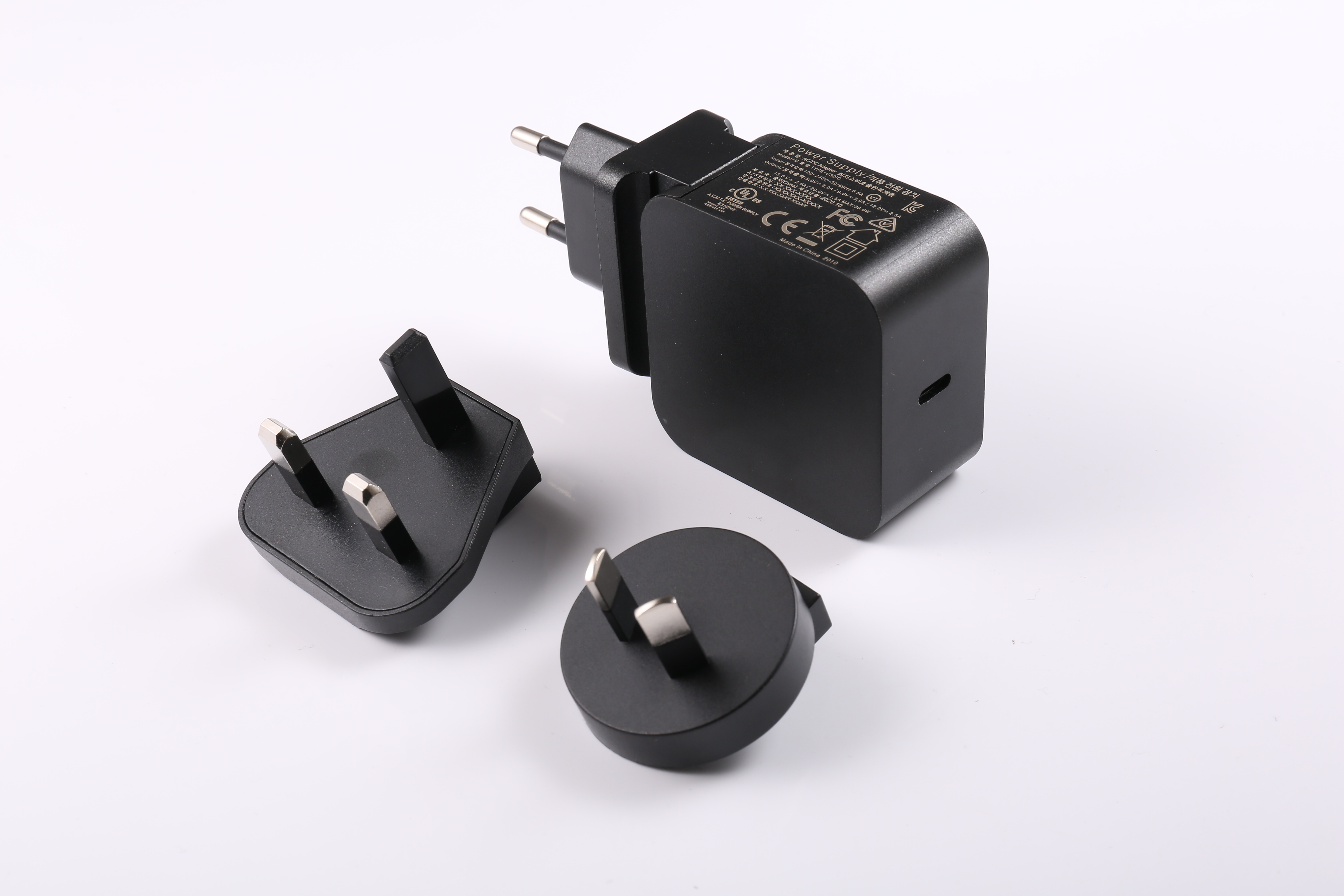

    Product Pictures


    FQA:

    1. who are we?
    We are based in Guangdong, China, start from 2006,sell to Southeast Asia(70.00%),North America(10.00%),Southern Europe(5.00%),Northern Europe(5.00%),Western Europe(5.00%). There are total about 800 people in our company.

    2. how can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment;

    3.what can you buy from us?
    charger,usb cable,speaker,Earphone

    4. why should you buy from us not from other suppliers?
    12,000 square meters factory, 10 person R & D team, 20 person QC department. More than 50 patents, ISO9001:2015, FCC, ROHS,CE, CB, ETL,

    5. what services can we provide?
    Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;
    Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
    Accepted Payment Type: T/T,PayPal,Western Union;
    Language Spoken:English,Chinese
