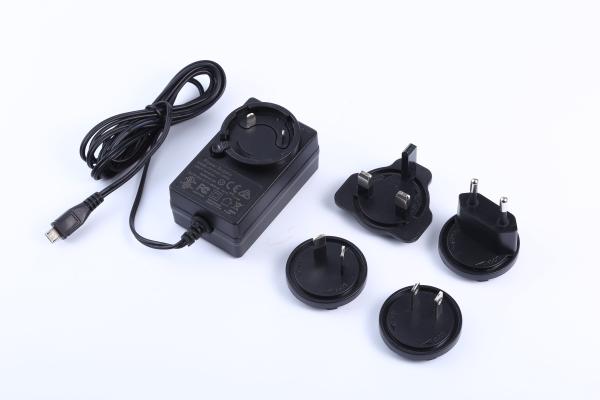

48W 9V5A 12V4A 15V3A 24V2A Interchangeable Plug Power Adapter

About us:

We have a professional and dynamic sales team that provides our customers with the best before-sales and after-sales services. For the market's comprehensive worldwide, we also offer excellent Quality, Best Service, Powerful and Efficient plate form for Manufacturing and Distribution worldwide. Our company's management concept "winning through Quality and Price ". At the same time, we promoted these marketing concepts: sales of branded products, standardized quality, market globalization, and professional services. Facing an extremely competitive environment in the industry, we were able to stand out and become a significant player in the market. ISO9001:2000 is the affirmative of our management philosophy. SPECIAL Electronics has established long-term cooperation with many local manufacturers. We have also built a global sales network with various leading manufacturers and trading companies in the world. We also offer a full set Service of OEM and ODM for our Customers: Product Design, Mechanical Design, Electronic Design and Mold Development according to the Customers' Require

FEATURES			SAFETIES APPROVALS		PRODUCTS PICTURE
v AU US UK EU CN JP KR Plugs v EFFICIENCY VI v 36-48 WATT OUTPUT POWER v OVERCURRENT PROTECTION v SHORT CIRCUIT PROTECTION v INPUT PROTECTION v ROHS COMPLIANT			Multi-blade Type v UL,FCC v CB,CE,UKCA v SAA,PSE,CCC,KC,BIS,BSMI v REACH, ROHS
TYPICAL MODEL LIST
I/P Voltage	Typical model		Output Voltage	Output Current	Ripple & noise		Efficiency Level
90 - 264V 47 - 63HZ	ICP48-090-5000		9V	5000mA	90mV		6 Level IIIIII
	ICP48-120-4000		12V	4000mA	90mV		6 Level IIIIII
	ICP48-150-3000		15V	3000mA	120mV		6 Level IIIIII
	ICP48-180-2666		18V	2666mA	120mV		6 Level IIIIII
	ICP48-240-2000		24V	2000mA	150mV		6 Level IIIIII
	ICP48-360-1333		36V	1333mA	150mV		6 Level IIIIII
INPUT SPECIFICATIONS				GENERAL SPECIFICATIONS
Input Voltage		90〜264VAC		Primary to Secondary		50MΩ MIN
Input Frequency		47〜63Hz		Efficiency		VI
Input Current		1.2A Max		Standby Power		0.30W MAX
Inrush Current		40.0A Max		Leakage Current		0.25mA MAX
OUTPUT SPECIFICATIONS				ENVIRONMENTAL SPECIFICATIONS
Output Voltage Range		5V-36V		Operating Temperature		10°C~40°C
Output Current Range		100mA-5000mA		Cooling		Convection
Output Power Range		48.0W Max		Temperature Coefficient		0.05%/°C
Short Circuit Protection		Automatic Recovery		Humidity		5~95%RH(non-condensing)
Over-Current Protection		Automatic Recovery		Storage Temperature		-20°C~+80%°C
Ripple and Noise		100mVp-p max		PHYSICAL SPECIFICATIONS
Turn On Time		20-30mS normal		Physical Specifications		97.7mm *45.7mm *32.7mm
Line Regulation		1% max		SAFETIES STANDARD
Output Regulation		±5%		Safeties Standard		62368 / 60950/ 60335/ 61558/ 60065 /UL1310

We are specialized in the design, manufacture of 5W to 120W power supplies, vehicle power adapters, USB chargers, and 100W to 3600W battery chargers. Almost all our products are with safety approvals such as UL, CE, GS, RCM, PSE, KC, KCC, BS, CCC, and so on. Our customers are from all over the world including the United States, Canada, Europe, Japan, Korea, and so on.

Our R& D department has more than 30 professional technicians and engineers. During these years, we have developed hundreds of products and obtained more than 30 patents. Our battery charger and usb charger factory is equipped with a total of 8 automatic production lines. And thanks to modern production and testing devices, our factory stable output can reach 2.4Millions units/ month.

Always attaching great importance to product quality and environmental protection, we are approved by the ISO9001 quality management system and ISO14001 environment management system. Over the years, our factory has won credibility from numerous Chinese and international customers. Our ideas are Integrity, Dedication, Practicability, innovation and to be one of the leaders in this industry. Warmly welcome you to visit us and make win-win cooperation!
