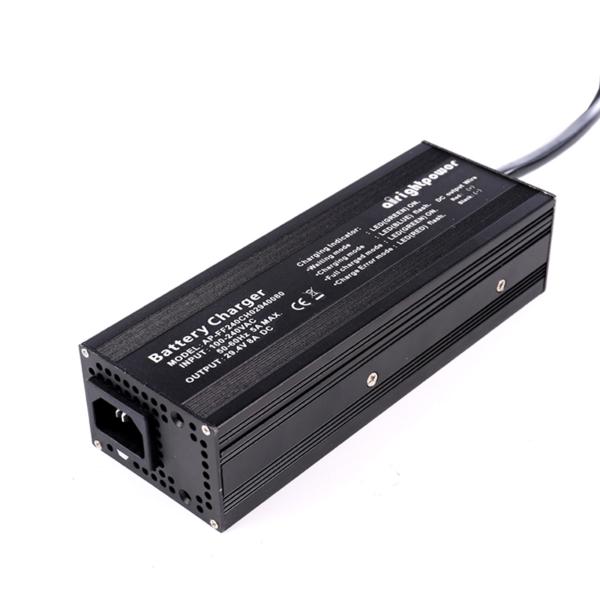

360w 300W Single Output Switching Power Supply 12v Dc Universal Switching Power Supply

深圳市盈源电子有限公司 Shenzhen YingYuan Electronics Co., Ltd Address:The 4-7th Floor, Building 8, HongYe Industrial Park, XiXiang Town, BaoAn District, ShenZhen, China

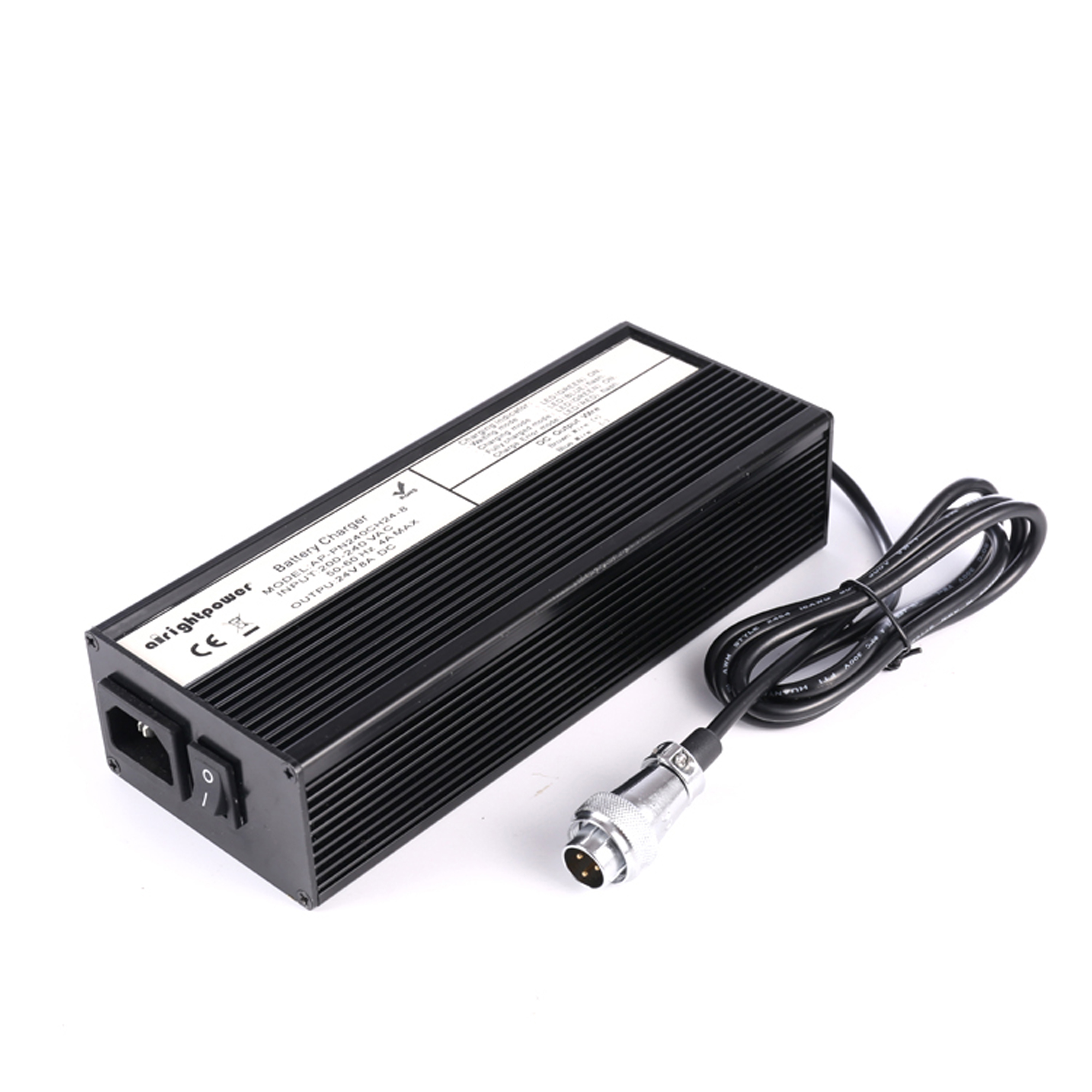

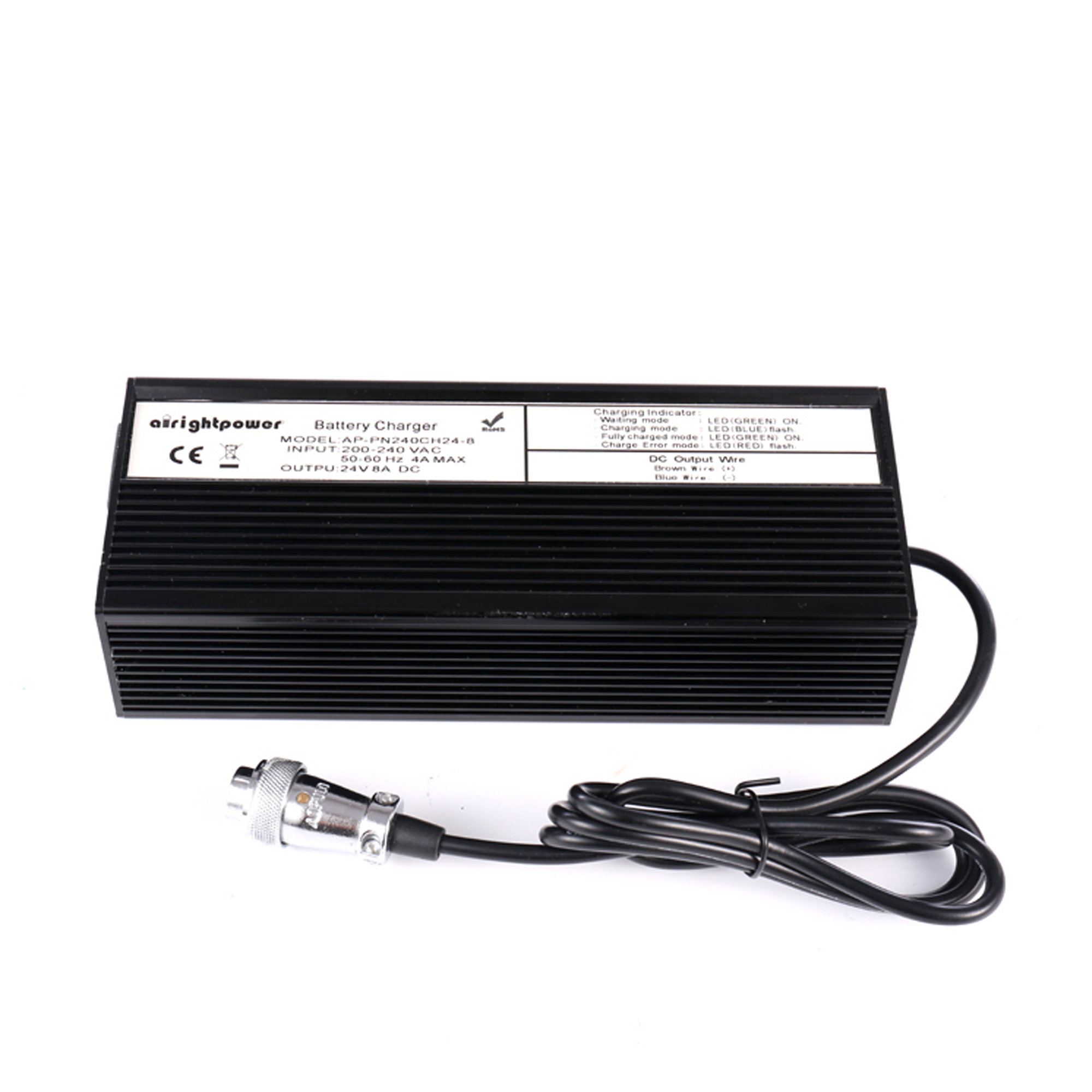

Specifications			PRODUCTS PICTURE
360W BATTERY CHAEGER l AC Input Voltage Range:AC100V～AC240V l AC Input Frequency: 45～65HZ l AC Power Factor Correction: ≥0.98 l Output Voltage:12V～60V l Output Current:15A(Max) l Full Load Efficiency: ≥90% l Shock & Vibration: 10～50HZ 2G 10 minutes,X,Y,Z /60 minutes l Operating Temperature: -20ºC～+45ºC(-20ºF～+113ºF) l Storage Temperature: -40ºC～+85ºC(-40ºF～+185ºF) l Dimensions (mm):(L)183х(W)122.5х(H)69 l Net Weight: 2kg
TYPICAL MODEL LIST
Charger Model	Rated Input Voltage	Battery Standard Voltage	Maximum charging Current	Maximum charging Current
AP-PN360CH01460150	100-240	12	14.6	15
AP-PN360CH02920100	100-240	24	29.2	10
AP-PN360CH04200070	100-240	36	42	7
AP-PN360CH05460060	100-240	48	54.6	6
AP-PN360CH01200150	100-240	12	14.6	15
AP-PN360CH02400100	100-240	24	29.2	10
AP-PN360CH03600070	100-240	36	42	7
AP-PN360CH04800060	100-240	48	54.6	6
SPECIFICATIONS
AC Input Voltage Range:	AC100V～AC240V	Shock & Vibration:	10～50HZ 2G 10 minutes,X,Y,Z /60 minutes
AC Input Frequency:	45～65HZ	Operating Temperature:	-20ºC～45ºC(-20ºF～+113ºF)
AC Power Factor Correction:	≥0.98	Storage Temperature:	-40ºC～+85ºC(-40ºF～185ºF)
Output Voltage:	12V～60V	Dimensions (mm):	(L)183х(W)122.5х(H)69
Output Current:	15A(Max)	Net Weigh:	2kg
Full Load Efficiency:	≥90%	Certifications	UL CE FCC RoHs
Protections	Thermal Self-Protection Charger will be stopped automatically when reaches to Maximum temperature , LED light will be red to warn it
	Short- circuit Protection When Short Circuit happened ,charger will turn off
	Reverse Connection Protection When the battery is polarity reversed ,the charger will cut off the connection between the circuit and the battery
	Battery Broken protection When some battery broke ,battery can not reach 100% full-charged ,charger will be shut down automatically
Application	Forklift/ground washer/electric motorcycle and so on
MECHANICAL SPECIFICATION			PACKING DETAILS
			2kg/pcs 12pcs/Carton Carton size: 580*480*185mm

Certification

Shipping

We are specialized in the design, manufacture of 5W to 120W power supplies, vehicle power adapters, USB chargers, and 100W to 3600W battery chargers. Almost all our products are with safety approvals such as UL, CE, GS, RCM, PSE, KC, KCC, BS, CCC, and so on. Our customers are from all over the world including the United States, Canada, Europe, Japan, Korea, and so on.

Our R& D department has more than 30 professional technicians and engineers. During these years, we have developed hundreds of products and obtained more than 30 patents. Our battery charger and usb charger factory is equipped with a total of 8 automatic production lines. And thanks to modern production and testing devices, our factory stable output can reach 2.4Millions units/ month.

Always attaching great importance to product quality and environmental protection, we are approved by the ISO9001 quality management system and ISO14001 environment management system. Over the years, our factory has won credibility from numerous Chinese and international customers. Our ideas are Integrity, Dedication, Practicability, innovation and to be one of the leaders in this industry. Warmly welcome you to visit us and make win-win cooperation!
