15W Series AC DC Power Supply

About Yingyuan:

We continuously developed ourcustomer service staff to satisfy our clients' demand. We have established close cooperative relationswith multinational

companies in lndia, the Middle East,Bangladesh, the United States and South America. Through unremitting efforts, it has been recognized and

praised by many of our customers. Wewarmly welcome customers to visit and sincerely hope to cooperate with you and win-win together in thefuturel

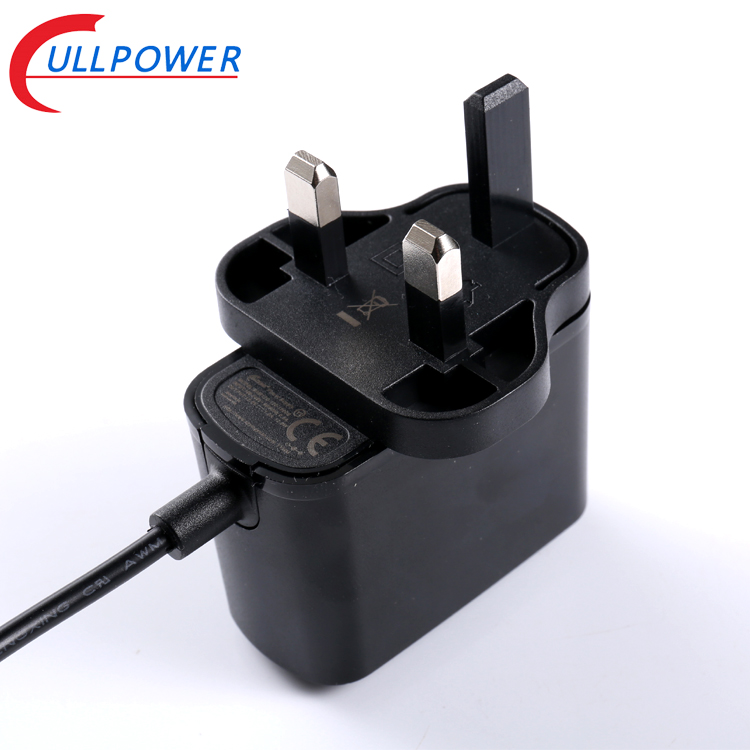

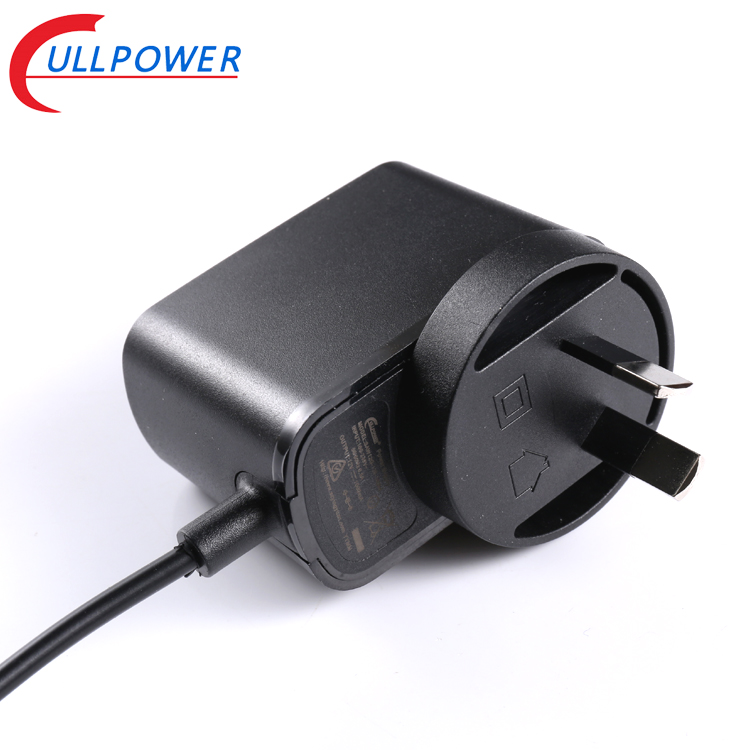

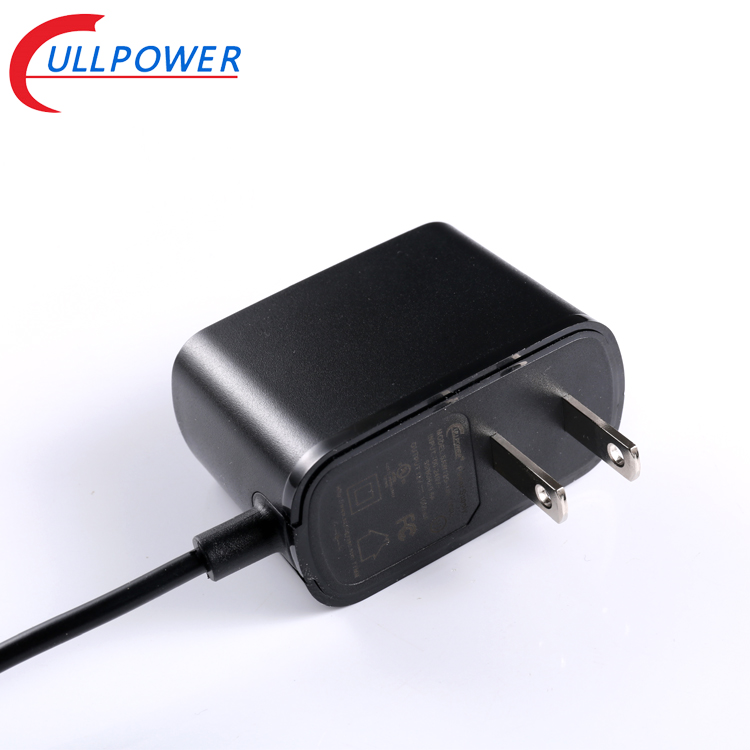

FEATURES			SAFETIES APPROVALS		PRODUCTS PICTURE
v EFFICIENCY VI v 12-15 WATT OUTPUT POWER v OVERCURRENT PROTECTION v SHORT CIRCUIT PROTECTION v INPUT PROTECTION v ROHS COMPLIANT			US Type v UL v CB v FCC v ROHS v REACH
TYPICAL MODEL LIST
I/P Voltage	Typical model		Output Voltage	Output Current	Ripple & noise		Efficiency
90 - 264V 47 - 63HZ	SAW15F-050-2000		5V	2000mA	60mV		6 VI
	SAW15F-050-2500		5V	2500mA	60mV		6 VI
	SAW15F-120-1000		12V	1000mA	60mV		6 VI
	SAW15F-120-1250		12V	1250mA	60mV		6 VI
	SAW15F-150-1000		15V	1000mA	60mV		6 VI
	SAW15F-240-1600		24V	1600mA	60mV		6 VI
INPUT SPECIFICATIONS				GENERAL SPECIFICATIONS
Input Voltage		90〜264VAC		Primary to Secondary		50MΩ MIN
Input Frequency		47〜63Hz		Efficiency		VI
Input Current		0.5A Max		Standby Power		0.1W MAX
Inrush Current		40A Max		Leakage Current		0.25mA MAX
OUTPUT SPECIFICATIONS				ENVIRONMENTAL SPECIFICATIONS
Output Voltage Range		3.0V-36.0V		Operating Temperature		10°C~40°C
Output Current Range		100mA-2500mA		Cooling		Convection
Output Power Range		15.0W Max		Temperature Coefficient		0.05%/°C
Short Circuit Protection		Automatic Recovery		Humidity		5~95%RH(non-condensing)
Over-Current Protection		Automatic Recovery		Storage Temperature		-20°C~+80%°C
Ripple and Noise		100mVp-p max		PHYSICAL SPECIFICATIONS
Turn On Time		20-30mS normal		Physical Specifications		0.0mm *0.0mm *0.0mm
Line Regulation		1% max		SAFETIES STANDARD
Output Regulation		±5%		Safeties Standard		62368 / 60950/ 60335/ 61558/ 60065

FQA:

Q,Are there any certificates for your products?
A: All of our products pass the RoHS 2.0 certification, all the accessory that is designed for Apple devices have the MFi certification. We also
provide specific certifications for related oversea markets: FCC and Amazon UL for the USA, UKCA for the UK, CE for Europe, PSE for
Japan, etc.

Q2: Any patent for Vention products?
A: More than 200 product patents has been acquired which includes multiple industrial design patent and patent for utility models.

Q. Shipment method?
A: a.International express: DHL /TNT/FEDEX/UPS(For sample)
b.By air(For trial orders)
c.By sea(15-45 days)
d.By domestic logistics

Q: How long will it take for shipment?
A.: For the sample shipment, it will usually takes 3-5 days for domestic distributors and around 30 days for international post delivery. Large order will be uncertain due to the different custom clearance situation.

Q: Where is your factory located?
A: Our factory is located in Shenzhen and Huizhou city, Guangdong.

We are specialized in the design, manufacture of 5W to 120W power supplies, vehicle power adapters, USB chargers, and 100W to 3600W battery chargers. Almost all our products are with safety approvals such as UL, CE, GS, RCM, PSE, KC, KCC, BS, CCC, and so on. Our customers are from all over the world including the United States, Canada, Europe, Japan, Korea, and so on.

Our R& D department has more than 30 professional technicians and engineers. During these years, we have developed hundreds of products and obtained more than 30 patents. Our battery charger and usb charger factory is equipped with a total of 8 automatic production lines. And thanks to modern production and testing devices, our factory stable output can reach 2.4Millions units/ month.

Always attaching great importance to product quality and environmental protection, we are approved by the ISO9001 quality management system and ISO14001 environment management system. Over the years, our factory has won credibility from numerous Chinese and international customers. Our ideas are Integrity, Dedication, Practicability, innovation and to be one of the leaders in this industry. Warmly welcome you to visit us and make win-win cooperation!
