65W AC DC Power Supply

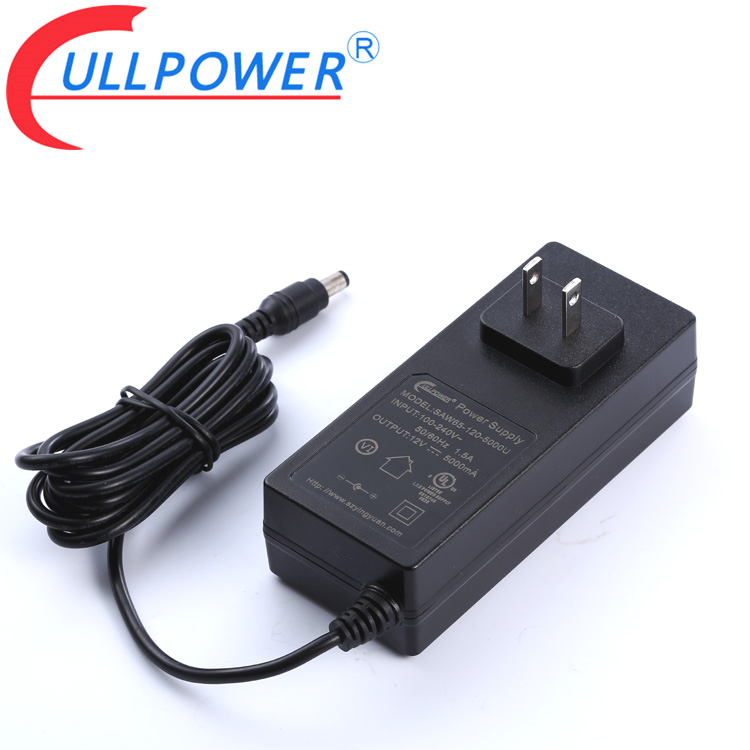

FEATURES			SAFETIES APPROVALS		PRODUCTS PICTURE
v EFFICIENCY VI v 48-65W WATT OUTPUT POWER v OVERCURRENT PROTECTION v SHORT CIRCUIT PROTECTION v INPUT PROTECTION v ROHS COMPLIANT			US Type v UL v CB v FCC v ROHS v REACH
TYPICAL MODEL LIST
I/P Voltage	Typical model		Output Voltage	Output Current	Ripple & noise		Efficiency
90 - 264V 47 - 63HZ	SAW65D-050-7000		5V	7000mA	90mV		6.0 Level
	SAW65D-090-6000		9V	6000mA	90mV		6.0 Level
	SAW65D-120-5000		12V	5000mA	120mV		6.0 Level
	SAW65D-180-3300		18V	3300mA	120mV		6.0 Level
	SAW65D-240-2500		24V	2500mA	150mV		6.0 Level
	SAW65D-480-1250		48V	1250mA	150mV		6.0 Level
INPUT SPECIFICATIONS				GENERAL SPECIFICATIONS
Input Voltage		90〜264VAC		Primary to Secondary		50MΩ MIN
Input Frequency		47〜63Hz		Efficiency		VI
Input Current		1.2A Max		Standby Power		0.3W MAX
Inrush Current		40A Max		Leakage Current		0.25mA MAX
OUTPUT SPECIFICATIONS				ENVIRONMENTAL SPECIFICATIONS
Output Voltage Range		5.00V-48.00V		Operating Temperature		10°C~40°C
Output Current Range		100mA-7000mA		Cooling		Convection
Output Power Range		65.00W Max		Temperature Coefficient		0.05%/°C
Short Circuit Protection		Automatic Recovery		Humidity		5~95%RH(non-condensing)
Over-Current Protection		Automatic Recovery		Storage Temperature		-20°C~+80%°C
Ripple and Noise		100mVp-p max		PHYSICAL SPECIFICATIONS
Turn On Time		20-30mS normal		Physical Specifications		117.4mm *50.4mm *33.4mm
Line Regulation		1% max		SAFETIES STANDARD
Output Regulation		±5%		Safeties Standard		62368 / 60950/ 60335/ 61558/ 60065

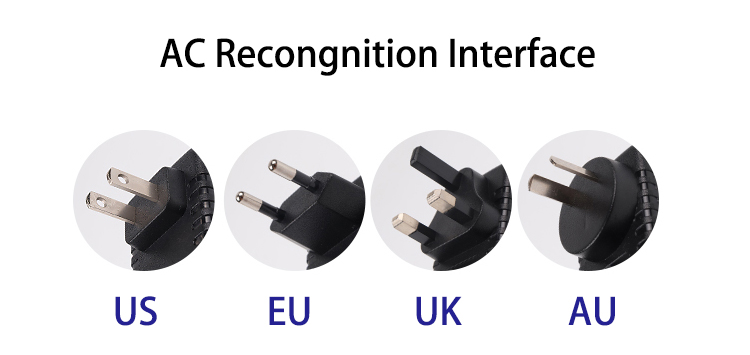

AC Plug

Certificaiton

FQA:

Q1: Can l get a sample before order?
A1: Yes,we'd like to provide the free samples for your test in advance.
Q2: What about the lead time?
A2:Regular models are available;Customized Models depends on your quantity.
Q3: Do you have any MOQ?
A3:Regular models(No limit);Customized models depends on your requests.
Q4: How do you ship the goods and how long does it take to arrive?
A4: We usually ship the goods by DHL,Fedex,UPS or TNT.It usually takes 3-5 days to arrive.Airline and Sea shipping are also optional.
Q5: How to proceed an order?
A5:1: Quotation stage: Provide the detailed parameters.2: Sample stage: Make the sample as requests.
3: Payment stage: Provide the proforma invoice for payment.
4: Production stage : Arrange the production as approved samples5: Shipment stage : Ship the goods via our forwarder or your forwarder
Q6: Do you have certificates?
A6:Yes,we have the worldwide certificates,such as UL FCC CE ROHS BS TUV CBSAA KC PSE CCC etc.
Q7: What about the Warranty?
A7: Solutions will be provided within 24hours if any quality issues generated in warranty period2-5 years
