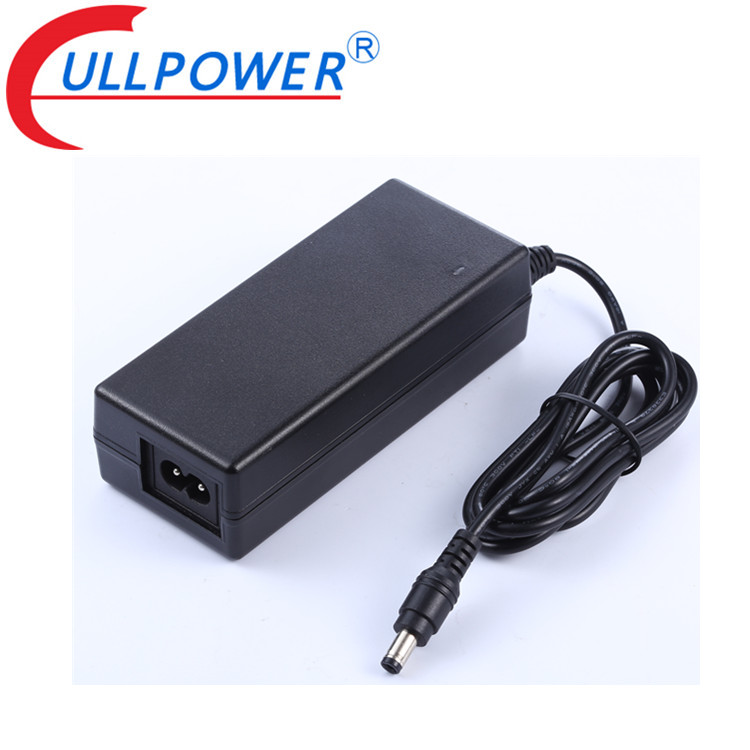

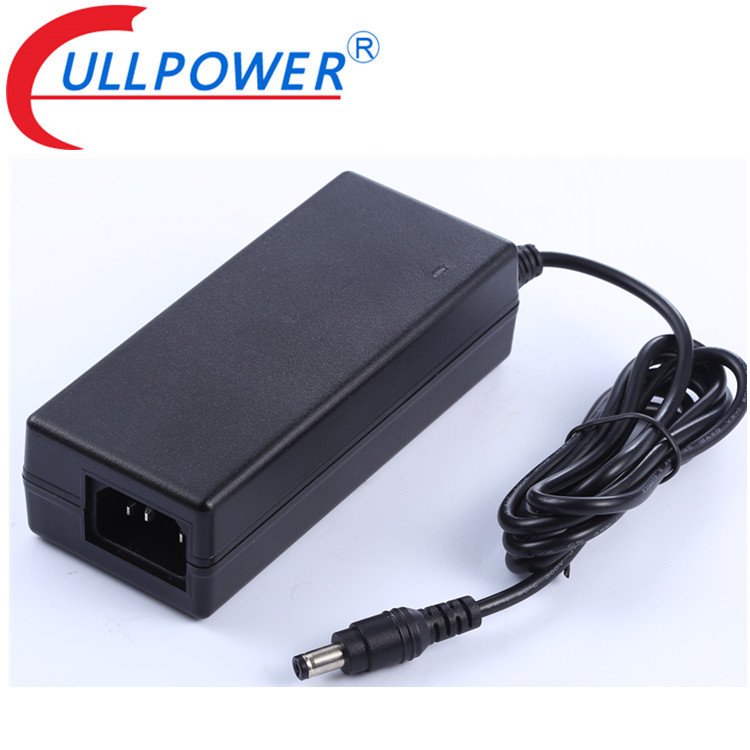

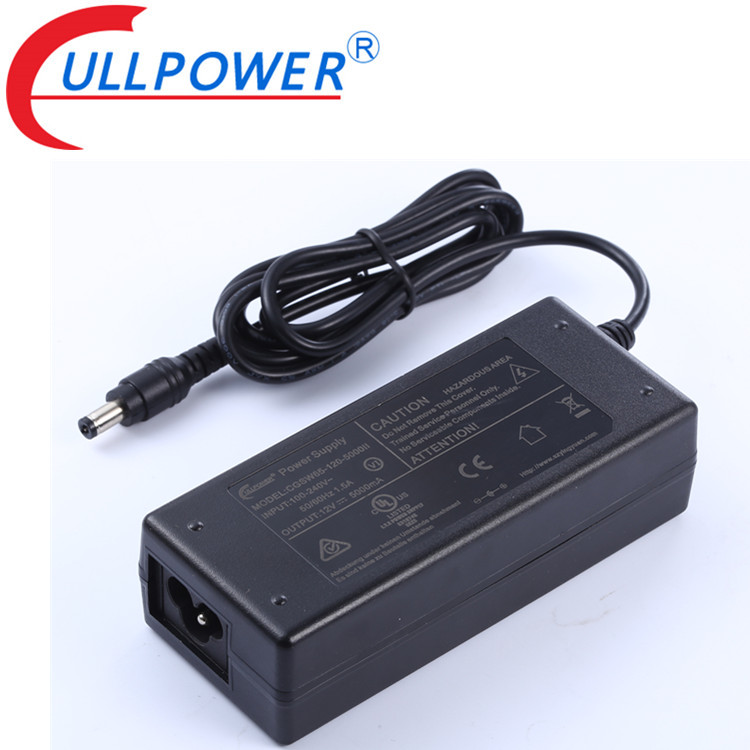

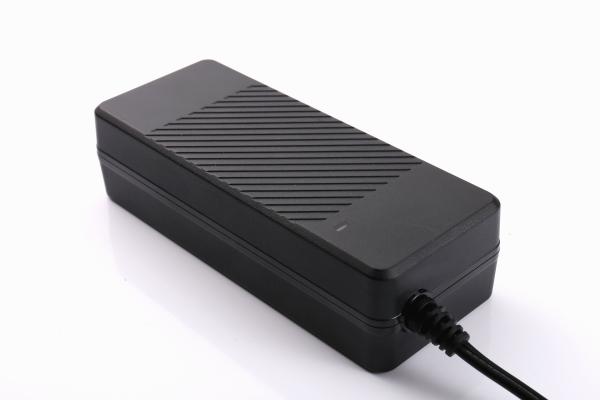

12V7.5A 15V6A 24V3.75A 24V4A Desktop 90W AC DC Power Supply

About us:

FEATURES			SAFETIES APPROVALS		PRODUCTS PICTURE
v EFFICIENCY VI v 90W WATT OUTPUT POWER v OVERCURRENT PROTECTION v SHORT CIRCUIT PROTECTION v INPUT PROTECTION v ROHS COMPLIANT			v UL v FCC v ROHS v REACH
TYPICAL MODEL LIST
I/P Voltage	Typical model		Output Voltage	Output Current	Ripple & noise		Efficiency Level
90 - 264V 47 - 63HZ	CGSW90D-120-7500		12V	7500mA	30mV		6 LV
	CGSW90D-150-6000		15V	6000mA	40mV		6 LV
	CGSW90D-240-3750		24V	3750mA	50mV		6 LV
	CGSW90D-240-4000		24V	4000mA	70mV		6 LV
	CGSW90D-480-2000		48V	2000mA	50mV		6 LV
	CGSW90D-480-1500		48V	1500mA	50mV		6 LV
INPUT SPECIFICATIONS				GENERAL SPECIFICATIONS
Input Voltage		90〜264VAC		Primary to Secondary		50MΩ MIN
Input Frequency		47〜63Hz		Efficiency		VI
Input Current		1.5A Max		Standby Power		0.5W MAX
Inrush Current		40A Max		Leakage Current		0.25mA MAX
OUTPUT SPECIFICATIONS				ENVIRONMENTAL SPECIFICATIONS
Output Voltage Range		12V-48V		Operating Temperature		10°C~40°C
Output Current Range		100mA-7500mA		Cooling		Convection
Output Power Range		96.00W Max		Temperature Coefficient		0.05%/°C
Short Circuit Protection		Automatic Recovery		Humidity		5~95%RH(non-condensing)
Over-Current Protection		Automatic Recovery		Storage Temperature		-20°C~+80%°C
Ripple and Noise		100mVp-p max		PHYSICAL SPECIFICATIONS
Turn On Time		20-30mS normal		Physical Specifications		150.3mm *50.3mm *25.3mm
Line Regulation		1% max		SAFETIES STANDARD
Output Regulation		±5%		Safeties Standard		62368 / 60950 / 60335 / 61558 / 60065 / UL1310

FAQ:

1. What's Your MOQ?
A: Small order can be accepted if we have in stock.The MOQ for OEM order is 500PCS.

2. Are you a manufacturer or trade company?
A:we are the most professional manufacturer for PD Charger, Wall Charger, USB Cable, car charger and wireless charger or ODM/OEM .

3. Can you offer samples for testing?
A: Sure, samples are available and delivery time usually 2-3 days.Customized order samples which based on our products will take 5-10 days. Proofing time of special and complex samples depends on the actual situation.

4. About the sample fee?
A:1) lf you need samples for quality check, sample fees and shipping fees should be charged from buyer's aside.
2) Free sample are available when order confirmed.
3) Most of the sample fees can be returned to you when order confirmed.

5. How can you control of product quality?
A: We always focus on high quality products, and all goods will be 100% tested with 4 times before shipment.

6. What is the warranty?
A: All products have 12 months warranty. Once there is any defective goods within 12 months, we will repair or give you a new one.

7.Can you help me to ship my goods to Amazon FBA?
A: Yes, we have many experiences to help our customer to ship their goods to Amazon FBA directly.

We are specialized in the design, manufacture of 5W to 120W power supplies, vehicle power adapters, USB chargers, and 100W to 3600W battery chargers. Almost all our products are with safety approvals such as UL, CE, GS, RCM, PSE, KC, KCC, BS, CCC, and so on. Our customers are from all over the world including the United States, Canada, Europe, Japan, Korea, and so on.

Our R& D department has more than 30 professional technicians and engineers. During these years, we have developed hundreds of products and obtained more than 30 patents. Our battery charger and usb charger factory is equipped with a total of 8 automatic production lines. And thanks to modern production and testing devices, our factory stable output can reach 2.4Millions units/ month.

Always attaching great importance to product quality and environmental protection, we are approved by the ISO9001 quality management system and ISO14001 environment management system. Over the years, our factory has won credibility from numerous Chinese and international customers. Our ideas are Integrity, Dedication, Practicability, innovation and to be one of the leaders in this industry. Warmly welcome you to visit us and make win-win cooperation!
