Focus on every detail of power supply!
3 Years
| Ask Lasest Price | |
| Brand Name : | Alrightpower |
| Model Number : | AP-PN900-1500 |
| Certification : | UL,FCC,CB,CE,UKCA,CCC,PSE,KC,RCM etc |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 50000PCS/Day |
| Delivery Time : | 30 working days |
1000W 1200W1500W High Power Dc Power Supply Ac Dc Converter Power Supply
Features Technology:

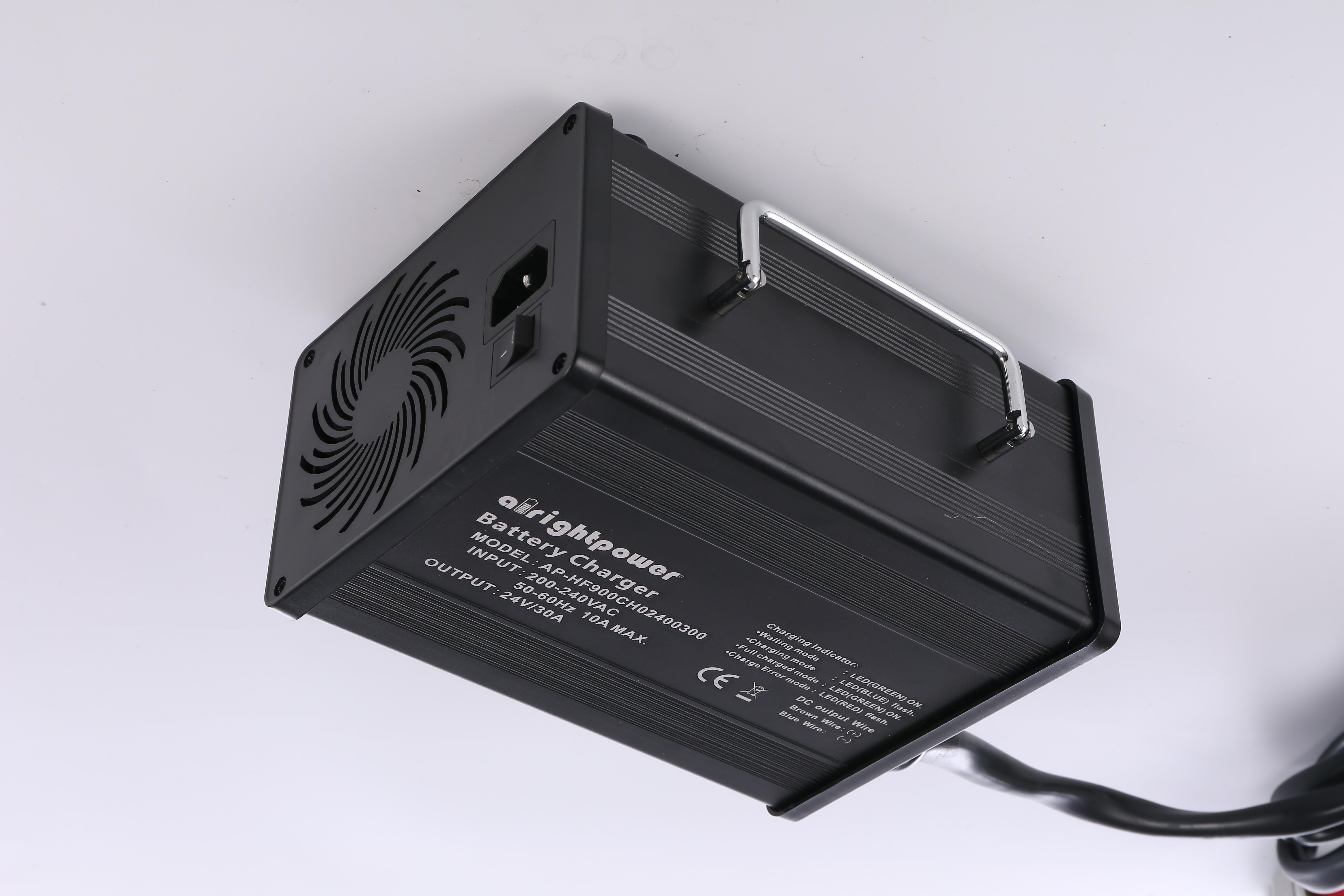

| Specifications | PRODUCTS PICTURE | |||
900W-1500W BATTERY CHAEGER l AC Input Voltage Range:AC100V-AC 240V l AC Input Frequency: 45～65HZ l AC Power Factor Correction: ≥0.98 l Output Voltage:12V～90V l Output Current:60A(Max) l Full Load Efficiency: ≥90% l Shock & Vibration: 10～50HZ 2G 10 minutes,X,Y,Z /60 minutes l Operating Temperature: -20ºC～+45ºC(-20ºF～+113ºF) l Storage Temperature: -40ºC～+85ºC(-40ºF～+185ºF) l Dimensions (mm):(L)266х(W)142х(H)91 l Net Weight: 3kg |  | |||
| TYPICAL MODEL LIST | ||||
| Charger Model | Rated Input Voltage | Battery Standard Voltage | Maximum charging Current | Maximum charging Current |
| AP-PF900CH01460600 | 100-240 | 12 | 14.6 | 60 |
| AP-PF900CH02920300 | 100-240 | 24 | 29.2 | 30 |
| AP-PF900CH04200200 | 100-240 | 36 | 42 | 20 |
| AP-PF900CH05460150 | 100-240 | 48 | 54.6 | 15 |
| AP-PF900CH07140120 | 100-240 | 60 | 71.4 | 12 |
| AP-PF900CH0840100 | 100-240 | 72 | 84 | 10 |
| AP-PF900CH01200600 | 100-240 | 12 | 14.7 | 60 |
| AP-PF900CH02400300 | 100-240 | 24 | 29.4 | 30 |
| AP-PF900CH03600200 | 100-240 | 36 | 44.1 | 20 |
| AP-PF900CH04800150 | 100-240 | 48 | 58.8 | 15 |
| AP-PF900CH06000120 | 100-240 | 60 | 73.5 | 12 |
| AP-PF900CH07200100 | 100-240 | 72 | 88.2 | 10 |
| SPECIFICATIONS | ||||
| AC Input Voltage Range: | AC100V-AC 240V | Shock & Vibration: | 10～50HZ 2G 10 minutes,X,Y,Z /60 minutes | |
| AC Input Frequency: | 45～65HZ | Operating Temperature: | -20ºC～45ºC(-20ºF～+113ºF) | |
| AC Power Factor Correction: | ≥0.98 | Storage Temperature: | -40ºC～+85ºC(-40ºF～185ºF) | |
| Output Voltage: | 12V～90V | Dimensions (mm): | (L)266х(W)142х(H)91 | |
| Output Current: | 60A(Max) | Net Weigh: | 3kg | |
| Full Load Efficiency: | ≥90% | certifications | UL CE FCC RoHs | |
| Protections | Thermal Self-Protection Charger will be stopped automatically when reaches to Maximum temperature , LED light will be red to warn it | |||
Short- circuit Protection When Short Circuit happened ,charger will turn off | ||||
Reverse Connection Protection When the battery is polarity reversed ,the charger will cut off the connection between the circuit and the battery | ||||
Battery Broken protection When some battery broke ,battery can not reach 100% full-charged ,charger will be shut down automatically | ||||
MECHANICAL SPECIFICATION |
 |
| Application |
 |
1. MOQ:
For common products, we don't have MOQ limit, you can order any
quantity you want if we have stocks.
If you need scooters with your specification, logo, packing, etc,
please negotiate with us.
2. Delivery date:
25days after order confirmed.(maybe it's slower than other sellers,
it's because we need time to make sure and test the material
quality. quality is our priority!)
3. OEM Service:
We can produce scooters with your logo, brand, packing. MOQ is
100pcs/model.
If your trail order is less than 100pcs, please pay us 100USD for
OEM.
We will refund you once your order is over 100pcs.
4. Warranty:
All our scooters are with 3 months warranty.
During the warranty time, if any scales is out of service because
of quality problem,
we will send you spare parts and teach you how to repair until
problem solved.
and we will afford all the freight cost for warranty.
5. Payment Method:
L/C at sight, T/T, Western Union and Paypal are all available.
6. Visit our factory:
Welcome visit our factory at any time, and we will pick up you.
|
|
