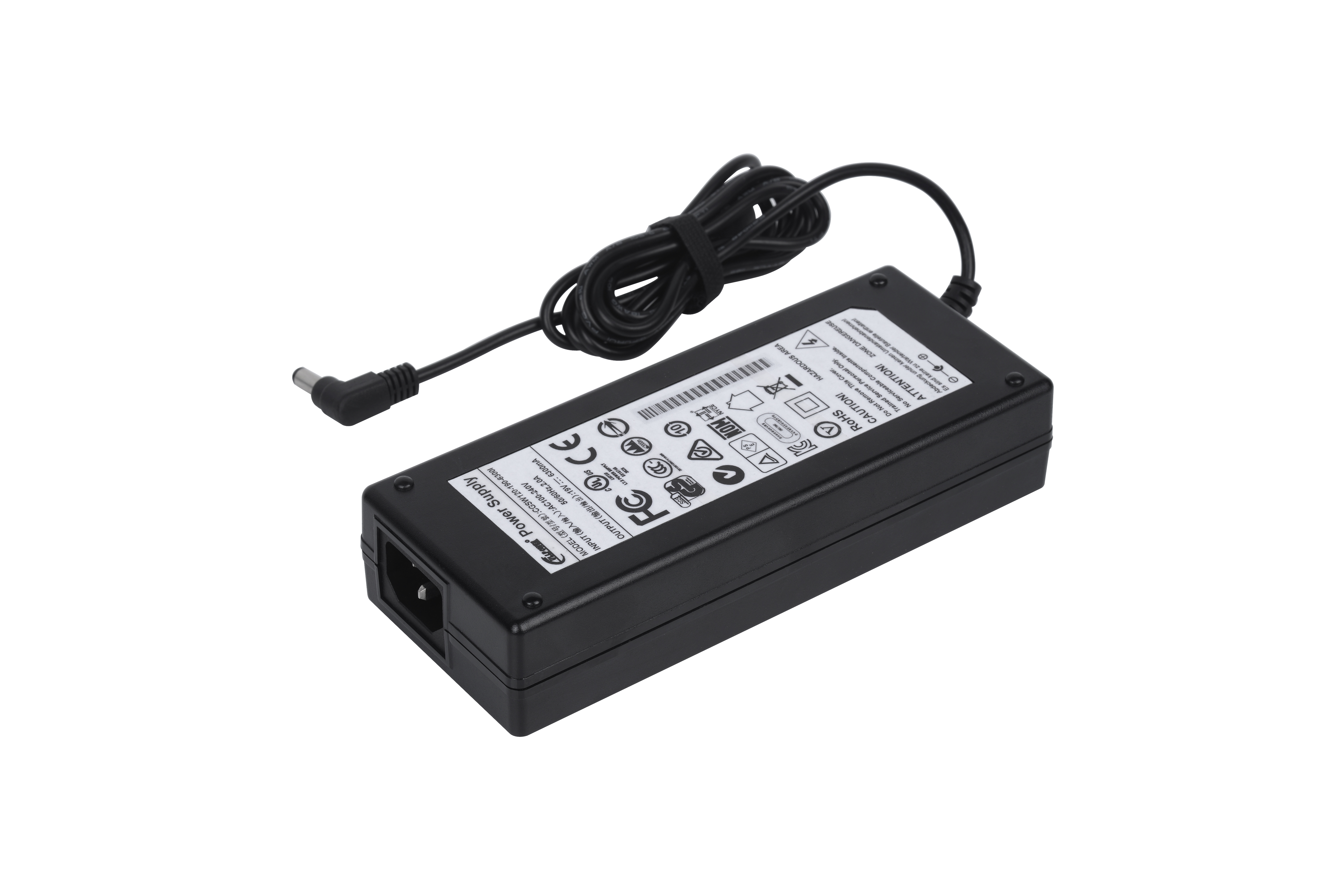

120W 12V10A 15V8A 24V5A 48V2.5A Desktop Switching Power Supply

FEATURES			SAFETIES APPROVALS		PRODUCTS PICTURE
v EFFICIENCY VI v 100-120W OUTPUT POWER v OVERCURRENT PROTECTION v SHORT CIRCUIT PROTECTION v INPUT PROTECTION v C6 C8 C14 Socket v ROHS REACHCOMPLIANT			Desktop Type v UL, FCC v CB, CE, UKCA v CCC, KC, PSE v SAA v REACH, ROHS
TYPICAL MODEL LIST
I/P Voltage	Typical model		Output Voltage	Output Current	Ripple & noise		Efficiency Level
90 - 264V 47 - 63HZ	CGSW120D-120-10000		12V	10000mA	30mV		Level VI ++++++
	CGSW120D-150-8000		15V	8000mA	40mV		Level VI ++++++
	CGSW120D-180-6666		18V	6666mA	50mV		Level VI ++++++
	CGSW120D-200-6000		20V	6000mA	70mV		Level VI ++++++
	CGSW120D-360-3333		36V	3333mA	50mV		Level VI ++++++
	CGSW120D-480-2500		48V	2500mA	50mV		Level VI ++++++
INPUT SPECIFICATIONS				GENERAL SPECIFICATIONS
Input Voltage		90〜264VAC		Primary to Secondary		50MΩ MIN
Input Frequency		47〜63Hz		Efficiency		VI
Input Current		1.5A Max		Standby Power		0.5W MAX
Inrush Current		40A Max		Leakage Current		0.25mA MAX
OUTPUT SPECIFICATIONS				ENVIRONMENTAL SPECIFICATIONS
Output Voltage Range		12.0V-48.0V		Operating Temperature		10°C~40°C
Output Current Range		100mA-10000mA		Cooling		Convection
Output Power Range		120W Max		Temperature Coefficient		0.05%/°C
Short Circuit Protection		Automatic Recovery		Humidity		5~95%RH(non-condensing)
Over-Current Protection		Automatic Recovery		Storage Temperature		-20°C~+80%°C
Ripple and Noise		100mVp-p max		PHYSICAL SPECIFICATIONS
Turn On Time		20-30mS normal		Physical Specifications		172.4mm *72.5mm *33.6mm
Line Regulation		1% max		SAFETIES STANDARD
Output Regulation		±5%		Safeties Standard		62368 / 60950 / 60335 / 61558 / 60065 / UL1310

FQA:

Q1:Are you a manufacturer or trade company?
A:Yes. We are a professional laptop and mobile phone accessory(chargers & power supply) man-ufacturer more than 16 years experience.

Q2.Can l have a sample even pre-production beforelsend you the order?

A: Yes, We can send you a free sample for your approval first.

Q3. What is the housing material for the charger ?
A: lt is ABS+PCfire-proofing housing.

Q4. What is your MOQ for the chargers ?
A:Our MOQ usually is 100pcs/model. but we accept the smallquantity to establish the long busi-ness.

Q5.Canl make my private label on the charger ?
A:We can make your private label on the charger. Meanwhile you can make your own packagedesign.

Q6.I make business on Amazon ? Can you ship my goods to Amazon FBA ?

A: Yes, we have shipped many goods for customer to Amazon FBA directly.

We are specialized in the design, manufacture of 5W to 120W power supplies, vehicle power adapters, USB chargers, and 100W to 3600W battery chargers. Almost all our products are with safety approvals such as UL, CE, GS, RCM, PSE, KC, KCC, BS, CCC, and so on. Our customers are from all over the world including the United States, Canada, Europe, Japan, Korea, and so on.

Our R& D department has more than 30 professional technicians and engineers. During these years, we have developed hundreds of products and obtained more than 30 patents. Our battery charger and usb charger factory is equipped with a total of 8 automatic production lines. And thanks to modern production and testing devices, our factory stable output can reach 2.4Millions units/ month.

Always attaching great importance to product quality and environmental protection, we are approved by the ISO9001 quality management system and ISO14001 environment management system. Over the years, our factory has won credibility from numerous Chinese and international customers. Our ideas are Integrity, Dedication, Practicability, innovation and to be one of the leaders in this industry. Warmly welcome you to visit us and make win-win cooperation!
