18W Series Switching Power Supply

About us:

At Yingyuan, we have been dedicated to designingand manufacturing consumer electronics andmobile accessories with technological innova-tions

since our foundation in 2006. Our mainmanufacturing facility is located in Shenzhen,the capital of world electronics. We have over 800 staff, and

more than 60 of them are seniorengineers.

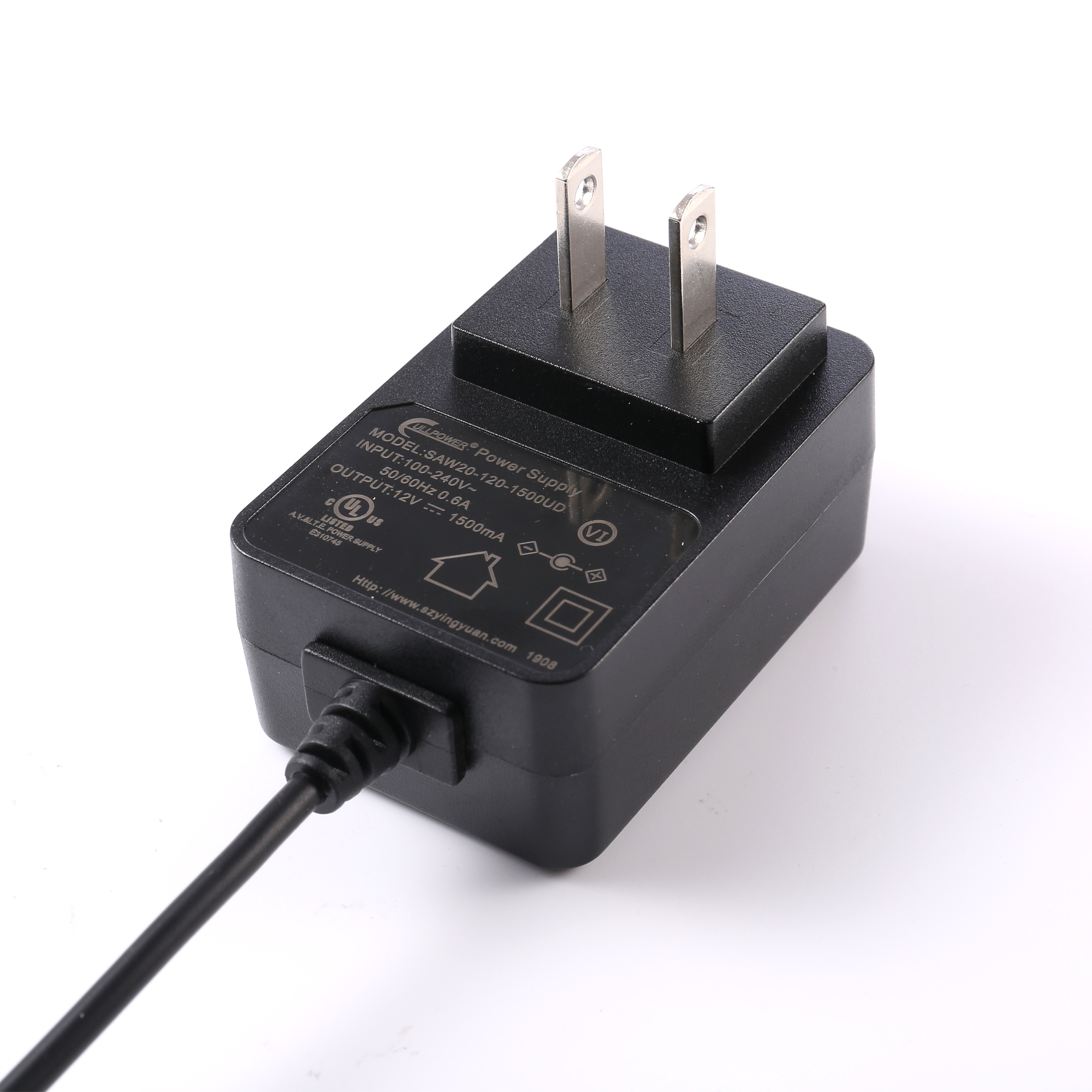

FEATURES			SAFETIES APPROVALS		PRODUCTS PICTURE
v EFFICIENCY VI v 12-20 WATT OUTPUT POWER v OVERCURRENT PROTECTION v SHORT CIRCUIT PROTECTION v INPUT PROTECTION v ROHS COMPLIANT			US Type v UL v CB v FCC v ROHS v REACH
TYPICAL MODEL LIST
I/P Voltage	Typical model		Output Voltage	Output Current	Ripple & noise		Efficiency
90 - 264V 47 - 63HZ	SAW20D-050-3000		5V	3000mA	60mV		6
	SAW20D-060-3000		6V	3000mA	60mV		6
	SAW20D-090-2000		9V	2000mA	60mV		6
	SAW20D-120-1500		12V	1500mA	60mV		6
	SAW20D-180-1000		18V	1000mA	60mV		6
	SAW20D-240-1333		24V	1333mA	60mV		6
INPUT SPECIFICATIONS				GENERAL SPECIFICATIONS
Input Voltage		90〜264VAC		Primary to Secondary		50MΩ MIN
Input Frequency		47〜63Hz		Efficiency		VI
Input Current		0.6A Max		Standby Power		0.1W MAX
Inrush Current		40A Max		Leakage Current		0.25mA MAX
OUTPUT SPECIFICATIONS				ENVIRONMENTAL SPECIFICATIONS
Output Voltage Range		5.00V-36.00V		Operating Temperature		10°C~40°C
Output Current Range		100mA-3000mA		Cooling		Convection
Output Power Range		20W Max		Temperature Coefficient		0.05%/°C
Short Circuit Protection		Automatic Recovery		Humidity		5~95%RH(non-condensing)
Over-Current Protection		Automatic Recovery		Storage Temperature		-20°C~+80%°C
Ripple and Noise		100mVp-p max		PHYSICAL SPECIFICATIONS
Turn On Time		20-30mS normal		Physical Specifications		59.6mm *40.8mm *26.0mm
Line Regulation		1% max		SAFETIES STANDARD
Output Regulation		±5%		Safeties Standard		62368 / 60950/ 60335/ 61558/ 60065

Our service and advantage:

Service:
— A reliable OEM/ODM supplier of consumer electronics for more than 16+ years.
— Authentic and patented product designs.
— Competitive pricing.
— Fast turnaround time(most products can be shipped within 3-7 business days).

Quality:
— Rigorous and redundant quality control and inspection ensure superb defect rate.
— A member of BSCI and WPC.
— All products are certified or adhere to CE, FCC, RoHS, ETL, KC, KCC, UN38.3, MSDS, and Qi-Certified.

Manufacturing:
— Manufacturing capacity: 20 production lines with up to 50,000 units per day.
— Flexible manufacturing supports low MOQ(minimum order quantity)requirements.

We are specialized in the design, manufacture of 5W to 120W power supplies, vehicle power adapters, USB chargers, and 100W to 3600W battery chargers. Almost all our products are with safety approvals such as UL, CE, GS, RCM, PSE, KC, KCC, BS, CCC, and so on. Our customers are from all over the world including the United States, Canada, Europe, Japan, Korea, and so on.

Our R& D department has more than 30 professional technicians and engineers. During these years, we have developed hundreds of products and obtained more than 30 patents. Our battery charger and usb charger factory is equipped with a total of 8 automatic production lines. And thanks to modern production and testing devices, our factory stable output can reach 2.4Millions units/ month.

Always attaching great importance to product quality and environmental protection, we are approved by the ISO9001 quality management system and ISO14001 environment management system. Over the years, our factory has won credibility from numerous Chinese and international customers. Our ideas are Integrity, Dedication, Practicability, innovation and to be one of the leaders in this industry. Warmly welcome you to visit us and make win-win cooperation!
