12W Series Switching Powre Supply

About us:

Shenzhen Yingyuan electronics Co., Ltd. was established in 2006. It is a high-tech enterprise integrating R&D, production, and sales. It focuses

on the field of consumer electronics. It is an expert manufacturer and solution provider of consumer electronics in Shenzhen China. Its products

mainly include Chargers, Power Banks, Wireless Microphones, and more Electronics.

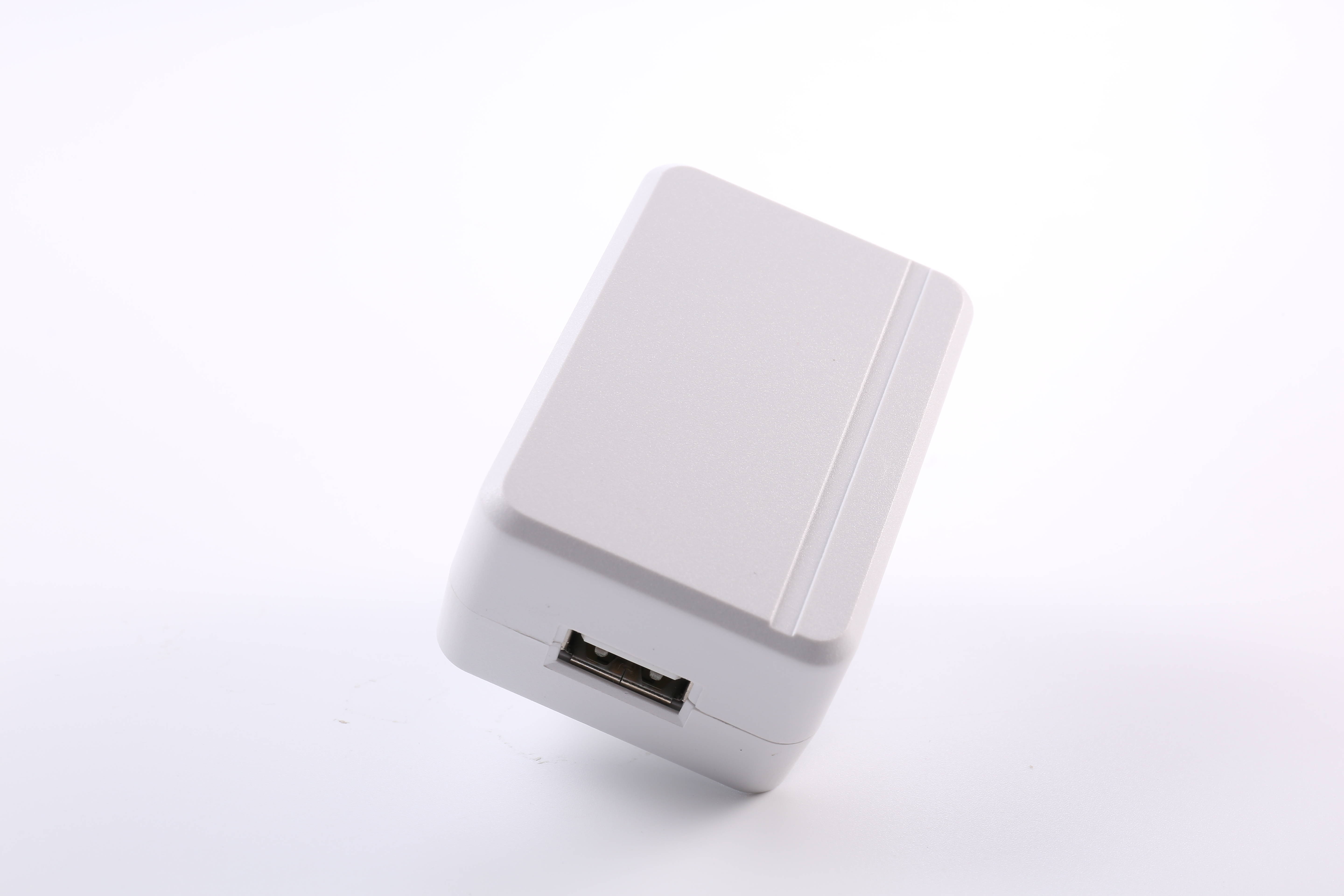

FEATURES			SAFETIES APPROVALS		PRODUCTS PICTURE
v EFFICIENCY VI v 6-12 WATT OUTPUT POWER v OVERCURRENT PROTECTION v SHORT CIRCUIT PROTECTION v INPUT PROTECTION v ROHS COMPLIANT			US Type v UL v CB v FCC v ROHS v REACH
TYPICAL MODEL LIST
I/P Voltage	Typical model		Output Voltage	Output Current	Ripple & noise		Efficiency
90 - 264V 47 - 63HZ	SAW12A-050-1500		5V	1500mA	60mV		Level 6
	SAW12A-050-2000		5V	2000mA	60mV		Level 6
	SAW12A-090-1000		9V	1000mA	60mV		Level 6
	SAW12A-120-1000		12V	1000mA	60mV		Level 6
	SAW12A-150-0800		15V	800mA	60mV		Level 6
	SAW12A-240-0500		24V	500mA	60mV		Level 6
INPUT SPECIFICATIONS				GENERAL SPECIFICATIONS
Input Voltage		90〜264VAC		Primary to Secondary		50MΩ MIN
Input Frequency		47〜63Hz		Efficiency		VI
Input Current		0.2A Max		Standby Power		0.2W MAX
Inrush Current		40A Max		Leakage Current		0.25mA MAX
OUTPUT SPECIFICATIONS				ENVIRONMENTAL SPECIFICATIONS
Output Voltage Range		4.00V-36.00V		Operating Temperature		10°C~40°C
Output Current Range		100mA-2100mA		Cooling		Convection
Output Power Range		12W Max		Temperature Coefficient		0.05%/°C
Short Circuit Protection		Automatic Recovery		Humidity		5~95%RH(non-condensing)
Over-Current Protection		Automatic Recovery		Storage Temperature		-20°C~+80%°C
Ripple and Noise		100mVp-p max		PHYSICAL SPECIFICATIONS
Turn On Time		20-30mS normal		Physical Specifications		59.3mm *40.2mm *26.1mm
Line Regulation		1% max		SAFETIES STANDARD
Output Regulation		±5%		Safeties Standard		62368 / 60950/ 60335/ 61558/ 60065
