48W Ac Dc Universal Power Adapter 24 Volt Ac Power Adapter 2.1*5,5 2.5*5.5 Dc Connector

About Yingyuan

Yingyuan electronics, which has been engaged in R&D, production and sales of switching power supply. Our efficient and green products

are widely used in Office Electronics, Network Communications, Financial Equipment Terminals, Audio and Video Device, Smart Household

Applications, Industrial Control Terminals, AGV and Automation Equipment etc.

FEATURES			SAFETIES APPROVALS		PRODUCTS PICTURE
v EFFICIENCY VI v 36-48 WATT OUTPUT POWER v OVERCURRENT PROTECTION v SHORT CIRCUIT PROTECTION v INPUT PROTECTION v ROHS REACH COMPLIANT v C6, C8, C14 AC Socket			Desktop Type v UL, FCC v CB, CE, UKCA v CCC, KC, PSE v SAA v REACH, ROHS
TYPICAL MODEL LIST
I/P Voltage	Typical model		Output Voltage	Output Current	Ripple & noise		Efficiency Level
90 - 264V 47 - 63HZ	CGSW48-090-5000		9V	5000mA	90mV		6 Level
	CGSW48-120-4000		12V	4000mA	90mV		6 Level
	CGSW48-150-3000		15V	3000mA	120mV		6 Level
	CGSW48-180-2666		18V	2666mA	120mV		6 Level
	CGSW48-240-2000		24V	2000mA	150mV		6 Level
	CGSW48-360-1333		36V	1333mA	150mV		6 Level
INPUT SPECIFICATIONS				GENERAL SPECIFICATIONS
Input Voltage		90〜264VAC		Primary to Secondary		50MΩ MIN
Input Frequency		47〜63Hz		Efficiency		VI
Input Current		1.2A Max		Standby Power		0.30W MAX
Inrush Current		40.0A Max		Leakage Current		0.25mA MAX
OUTPUT SPECIFICATIONS				ENVIRONMENTAL SPECIFICATIONS
Output Voltage Range		5V-36V		Operating Temperature		10°C~40°C
Output Current Range		100mA-5000mA		Cooling		Convection
Output Power Range		48W Max		Temperature Coefficient		0.05%/°C
Short Circuit Protection		Automatic Recovery		Humidity		5~95%RH(non-condensing)
Over-Current Protection		Automatic Recovery		Storage Temperature		-20°C~+80%°C
Ripple and Noise		100mVp-p max		PHYSICAL SPECIFICATIONS
Turn On Time		20-30mS normal		Physical Specifications		97.6mm *45.6mm *32.6mm
Line Regulation		1% max		SAFETIES STANDARD
Output Regulation		±5%		Safeties Standard		62368 / 60950/ 60335/ 61558/ 60065 / UL1310

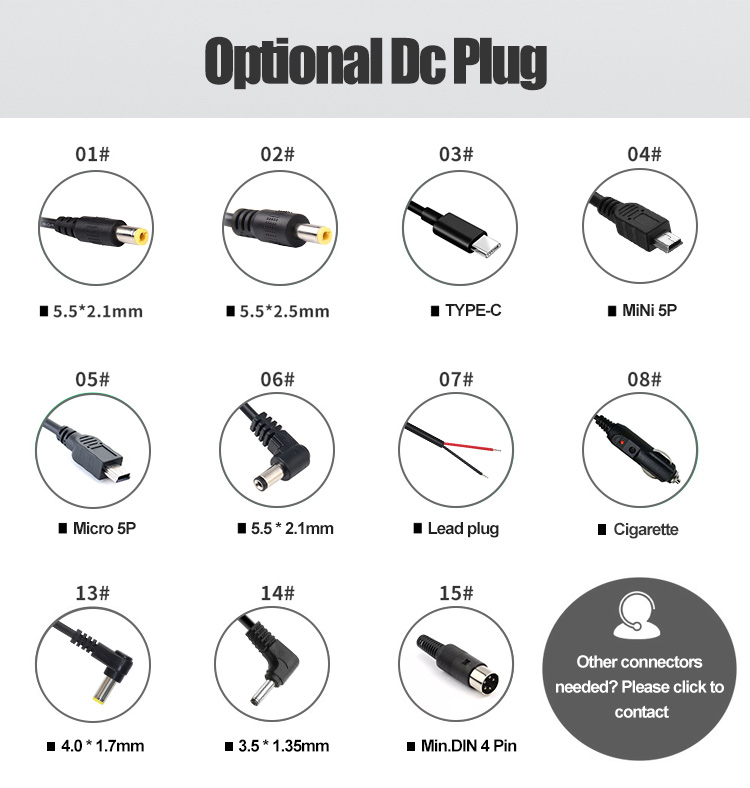

DC Plug

Certification

FQA:

Q1. Are you a Manufacturer or Trade Company?
We are a professional Manufacturer of ac dc power adapter, battery chargers since 2006.

Q2. Do you inspect the finished products?

We are specialized in the design, manufacture of 5W to 120W power supplies, vehicle power adapters, USB chargers, and 100W to 3600W battery chargers. Almost all our products are with safety approvals such as UL, CE, GS, RCM, PSE, KC, KCC, BS, CCC, and so on. Our customers are from all over the world including the United States, Canada, Europe, Japan, Korea, and so on.

Our R& D department has more than 30 professional technicians and engineers. During these years, we have developed hundreds of products and obtained more than 30 patents. Our battery charger and usb charger factory is equipped with a total of 8 automatic production lines. And thanks to modern production and testing devices, our factory stable output can reach 2.4Millions units/ month.

Always attaching great importance to product quality and environmental protection, we are approved by the ISO9001 quality management system and ISO14001 environment management system. Over the years, our factory has won credibility from numerous Chinese and international customers. Our ideas are Integrity, Dedication, Practicability, innovation and to be one of the leaders in this industry. Warmly welcome you to visit us and make win-win cooperation!
