    EN60950 90W 48V Switch Mode Power Adapter Overload Protection

    Ask Lasest Price
    Brand Name : Fullpower
    Model Number : 19280
    Certification : FCC,UL,CE,UKCA,SAA,KC,PSE,CCC,etc
    Payment Terms : T/T, Western Union
    Supply Ability : 50000PCS/Day
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    EN60950 90W 48V Switch Mode Power Adapter Overload Protection


    90W Power Switch Adapter 48v Switching Power Supply Switching Mode Power Adapter


    Key Specifications/ Special Features:

    90W wall mount power supply
    Features:

    1) UL/GS/CE/SAA/PSE/C-Tick/RoHS Directive-compliant/REACH certified
    2) EN60950
    3) 100% aging 4 hours
    4) Warranty for 20,000 hours
    5) Wide input range, high precision voltage
    6) Overload protection
    7) Short circuit protection
    8) Over-temperature protection
    9) Saving power
    10) Input: 100-240V, 50/60Hz
    11) Output: 2.2-36V DC, 0.01-4A
    12) Plug: EU standard adapter
    13) Cable length: about 150cm
    14) Color: black
    15) Packing: PE/polybag/box/customized
    Note: advise the voltage and the connector when inquire

    Data-sheet

    FEATURESSAFETIES APPROVALSPRODUCTS PICTURE

    v EFFICIENCY VI

    v 90W WATT OUTPUT POWER

    v OVERCURRENT PROTECTION

    v SHORT CIRCUIT PROTECTION

    v INPUT PROTECTION

    v ROHS COMPLIANT


    Desktop Type


    v UL, FCC

    v CB, CE, UKCA

    v CCC, KC, PSE

    v SAA

    v REACH, ROHS


    TYPICAL MODEL LIST
    I/P VoltageTypical modelOutput VoltageOutput CurrentRipple & noiseEfficiency Level

    90 - 264V

    47 - 63HZ

    CGSW90F-120-750012V7500mA30mV6 Level
    CGSW90F-150-600015V6000mA40mV6 Level
    CGSW90F-240-375024V3750mA50mV6 Level
    CGSW90F-240-400024V4000mA70mV6 Level
    CGSW90F-480-200048V2000mA50mV6 Level
    CGSW90F-480-150048V1500mA50mV6 Level
    INPUT SPECIFICATIONSGENERAL SPECIFICATIONS
    Input Voltage90〜264VACPrimary to Secondary50MΩ MIN
    Input Frequency47〜63HzEfficiencyVI
    Input Current1.5A MaxStandby Power0.5W MAX
    Inrush Current40A MaxLeakage Current0.25mA MAX
    OUTPUT SPECIFICATIONSENVIRONMENTAL SPECIFICATIONS
    Output Voltage Range12.0V-48.0VOperating Temperature10°C~40°C
    Output Current Range100mA-7500mACoolingConvection
    Output Power Range96.0W MaxTemperature Coefficient0.05%/°C
    Short Circuit ProtectionAutomatic RecoveryHumidity5~95%RH(non-condensing)
    Over-Current ProtectionAutomatic RecoveryStorage Temperature-20°C~+80%°C
    Ripple and Noise100mVp-p maxPHYSICAL SPECIFICATIONS
    Turn On Time20-30mS normalPhysical Specifications150.2mm *50.3mm *25.5mm
    Line Regulation1% maxSAFETIES STANDARD
    Output Regulation±5%Safeties Standard62368 / 60950 / 60335 / 61558 / 60065 / UL1310

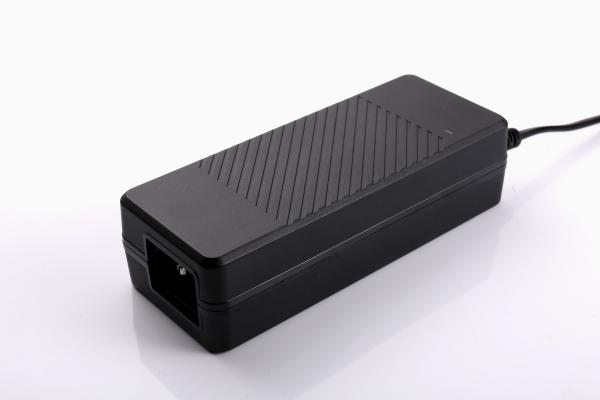

    Pictures


    Certification

    Application:
    DVD players, LCD and TFT TVs, MP4 players, digital cameras, CCTV, other A/V products, cell phone charger, network information, security equipment, small home appliances, LED, etc.


    Why choose us?
    1. Abundant experiences: we are the power adapter manufacturer in this line for many years
    2.Quality approved: all of our products have passed the safety standard IEC60950
    3.On time delivery
    4.Best service best quality best price
