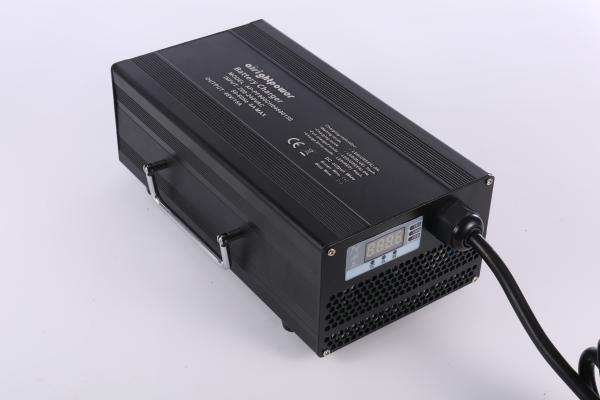

Black 12v 24V 36V 48V 72V Lithium Battery Charger 1500W Max Output

1500W Battery charger 12v 24V 36V 48V 72V Lithium Battery Charger for Electric motorcycle Golf cart Sightseeing car

深圳市盈源电子有限公司 Shenzhen YingYuan Electronics Co., Ltd Address:The 4-7th Floor, Building 8, HongYe Industrial Park, XiXiang Town, BaoAn District, ShenZhen, China
Specifications			PRODUCTS PICTURE
900W-1500W BATTERY CHAEGER l AC Input Voltage Range:AC100V-AC 240V l AC Input Frequency: 45～65HZ l AC Power Factor Correction: ≥0.98 l Output Voltage:12V～90V l Output Current:60A(Max) l Full Load Efficiency: ≥90% l Shock & Vibration: 10～50HZ 2G 10 minutes,X,Y,Z /60 minutes l Operating Temperature: -20ºC～+45ºC(-20ºF～+113ºF) l Storage Temperature: -40ºC～+85ºC(-40ºF～+185ºF) l Dimensions (mm):(L)266х(W)142х(H)91 l Net Weight: 3kg
TYPICAL MODEL LIST
Charger Model	Rated Input Voltage	Battery Standard Voltage	Maximum charging Current	Maximum charging Current
AP-PF900CH01460600	100-240	12	14.6	60
AP-PF900CH02920300	100-240	24	29.2	30
AP-PF900CH04200200	100-240	36	42	20
AP-PF900CH05460150	100-240	48	54.6	15
AP-PF900CH07140120	100-240	60	71.4	12
AP-PF900CH0840100	100-240	72	84	10
AP-PF900CH01200600	100-240	12	14.7	60
AP-PF900CH02400300	100-240	24	29.4	30
AP-PF900CH03600200	100-240	36	44.1	20
AP-PF900CH04800150	100-240	48	58.8	15
AP-PF900CH06000120	100-240	60	73.5	12
AP-PF900CH07200100	100-240	72	88.2	10
SPECIFICATIONS
AC Input Voltage Range:	AC100V-AC 240V	Shock & Vibration:	10～50HZ 2G 10 minutes,X,Y,Z /60 minutes
AC Input Frequency:	45～65HZ	Operating Temperature:	-20ºC～45ºC(-20ºF～+113ºF)
AC Power Factor Correction:	≥0.98	Storage Temperature:	-40ºC～+85ºC(-40ºF～185ºF)
Output Voltage:	12V～90V	Dimensions (mm):	(L)266х(W)142х(H)91
Output Current:	60A(Max)	Net Weigh:	3kg
Full Load Efficiency:	≥90%	certifications	UL CE FCC RoHs
Protections	Thermal Self-Protection Charger will be stopped automatically when reaches to Maximum temperature , LED light will be red to warn it
	Short- circuit Protection When Short Circuit happened ,charger will turn off
	Reverse Connection Protection When the battery is polarity reversed ,the charger will cut off the connection between the circuit and the battery
	Battery Broken protection When some battery broke ,battery can not reach 100% full-charged ,charger will be shut down automatically

Application

MECHANICAL SPECIFICATION

About Yingyuan

Yingyuan is a switching power supply&adapter manufacturer which is producing a variety of AC/DC DC/DC switching power supply,power adapters and more.Our factory is positioned in the international business city Shenzhen of China,close to the Guangzhou Baiyun international airport with most convenient transportations.With more than 15 years experience in the global power supply industry. We are the recognized technology leader and a manufacturer of ac dc/dc dc switching power supply&adapter and more,with most popular,stylish and luxurious designs worldwide,to exactly do the high technology &engineering power supply production and sales even design.

We are specialized in the design, manufacture of 5W to 120W power supplies, vehicle power adapters, USB chargers, and 100W to 3600W battery chargers. Almost all our products are with safety approvals such as UL, CE, GS, RCM, PSE, KC, KCC, BS, CCC, and so on. Our customers are from all over the world including the United States, Canada, Europe, Japan, Korea, and so on.

Our R& D department has more than 30 professional technicians and engineers. During these years, we have developed hundreds of products and obtained more than 30 patents. Our battery charger and usb charger factory is equipped with a total of 8 automatic production lines. And thanks to modern production and testing devices, our factory stable output can reach 2.4Millions units/ month.

Always attaching great importance to product quality and environmental protection, we are approved by the ISO9001 quality management system and ISO14001 environment management system. Over the years, our factory has won credibility from numerous Chinese and international customers. Our ideas are Integrity, Dedication, Practicability, innovation and to be one of the leaders in this industry. Warmly welcome you to visit us and make win-win cooperation!
