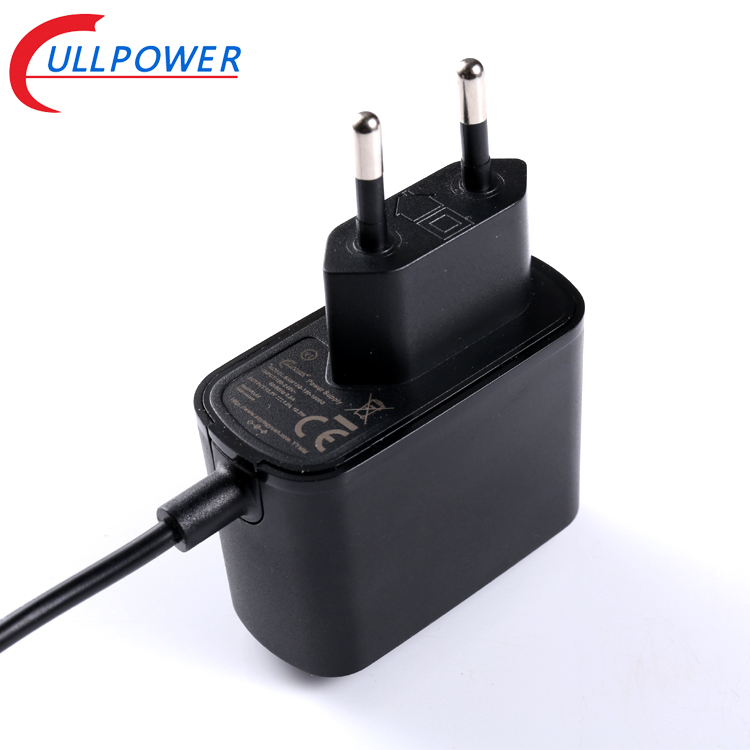

15W Series AC DC Power Adapter

• Max Output Power: 15W

• Typical output: 5V2A 5V2.5A 12V1A 12V1.25A etc

FEATURES			SAFETIES APPROVALS		PRODUCTS PICTURE
v EFFICIENCY VI v 12-15 WATT OUTPUT POWER v OVERCURRENT PROTECTION v SHORT CIRCUIT PROTECTION v INPUT PROTECTION v ROHS COMPLIANT			US Type v UL v CB v FCC v ROHS v REACH
TYPICAL MODEL LIST
I/P Voltage	Typical model		Output Voltage	Output Current	Ripple & noise		Efficiency
90 - 264V 47 - 63HZ	SAW15-050-2000		5V	2000mA	60mV		VI
	SAW15-050-2500		5V	2500mA	60mV		VI
	SAW15-120-1000		12V	1000mA	60mV		VI
	SAW15-120-1250		12V	1250mA	60mV		VI
	SAW15-150-1000		15V	1000mA	60mV		VI
	SAW15-240-1600		24V	1600mA	60mV		VI
INPUT SPECIFICATIONS				GENERAL SPECIFICATIONS
Input Voltage		90〜264VAC		Primary to Secondary		50MΩ MIN
Input Frequency		47〜63Hz		Efficiency		VI
Input Current		1.2A Max		Standby Power		0.1W MAX
Inrush Current		40A Max		Leakage Current		0.25mA MAX
OUTPUT SPECIFICATIONS				ENVIRONMENTAL SPECIFICATIONS
Output Voltage Range		3.60V-36.00V		Operating Temperature		10°C~40°C
Output Current Range		100mA-2500mA		Cooling		Convection
Output Power Range		15W Max		Temperature Coefficient		0.05%/°C
Short Circuit Protection		Automatic Recovery		Humidity		5~95%RH(non-condensing)
Over-Current Protection		Automatic Recovery		Storage Temperature		-20°C~+80%°C
Ripple and Noise		100mVp-p max		PHYSICAL SPECIFICATIONS
Turn On Time		20-30mS normal		Physical Specifications		~mm *~mm *~mm
Line Regulation		1% max		SAFETIES STANDARD
Output Regulation		±5%		Safeties Standard		62368 / 60950/ 60335/ 61558/ 60065
