200W 240W 120w 12v Power Supply 12 Volt Switching Power Supply For Ebike Electric Cart

深圳市盈源电子有限公司 Shenzhen YingYuan Electronics Co., Ltd Address:The 4-7th Floor, Building 8, HongYe Industrial Park, XiXiang Town, BaoAn District, ShenZhen, China

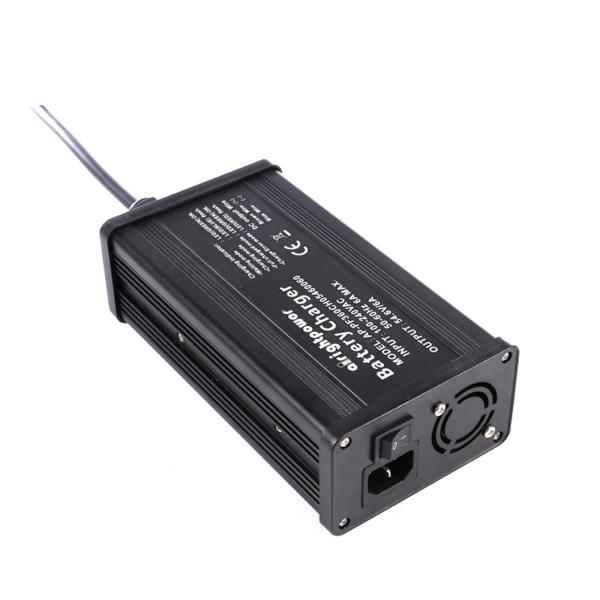

Specifications			PRODUCTS PICTURE
240W BATTERY CHAEGER l AC Input Voltage Range: AC100V～AC240V l AC Input Frequency: 45～65HZ l AC Power Factor Correction: ≥0.98 l Output Voltage:12V～60V l Output Current:16A(Max) l Full Load Efficiency: ≥90% l Shock & Vibration: 10～50HZ 2G 10 minutes,X,Y,Z /60 minutes l Operating Temperature: -20ºC～+45ºC(-20ºF～+113ºF) l Storage Temperature: -40ºC～+85ºC(-40ºF～+185ºF) l Dimensions (mm):(L)203х(W)81х(H)47.5 l Net Weight: 1.2kg
TYPICAL MODEL LIST
Charger Model	Rated Input Voltage	Battery Standard Voltage	Maximum charging Current	Maximum charging Current
AP-PN240CH01460160	100-240	12	14.6	16
AP-PN240CH02920080	100-240	24	29.2	8
AP-PN240CH04200060	100-240	36	42	6
AP-PN240CH05460040	100-240	48	54.6	4
AP-PN240CH01200160	100-240	12	14.7	16
AP-PN240CH02400080	100-240	24	29.4	8
AP-PN240CH03600060	100-240	36	44.1	6
AP-PN240CH04800040	100-240	48	58.8	4
SPECIFICATIONS
AC Input Voltage Range:	AC100V～AC240V	Shock & Vibration:	10～50HZ 2G 10 minutes,X,Y,Z /60 minutes
AC Input Frequency:	45～65HZ	Operating Temperature:	-20ºC～45ºC(-20ºF～+113ºF)
AC Power Factor Correction:	≥0.98	Storage Temperature:	-40ºC～+85ºC(-40ºF～185ºF)
Output Voltage:	12V～60V	Dimensions (mm):	(L)203х(W)81х(H)47.5
Output Current:	16A(Max)	Net Weigh:	1.2kg
Full Load Efficiency:	≥90%	Certifications	UL CE FCC RoHs
Protections	Thermal Self-Protection Charger will be stopped automatically when reaches to Maximum temperature , LED light will be red to warn it
	Short- circuit Protection When Short Circuit happened ,charger will turn off
	Reverse Connection Protection When the battery is polarity reversed ,the charger will cut off the connection between the circuit and the battery
	Battery Broken protection When some battery broke ,battery can not reach 100% full-charged ,charger will be shut down automatically
Application	Electric Bicycles/Tricycles/Scooters /Power tools and other electric-related equipment
MECHANICAL SPECIFICATION			PACKING DETAILS
			1pcs/Carton 1.2kg/Carton Carton size: 203*81*47.5mm

Certifications

Delivery

FAQ
Q: How can I get the sample to check your quality?
A: After price confrmation, you can require for samples to check our product's quality.
If you just need a blank sample to check the design and quality. We will provide you
sample for free as long as you afford the express freight.
Q: What can I get the price?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to
get the price, please tell us in
your email so that we will regard you inquiry priority.
Q: What is your term of delivery?
A: We accept FOB Shenzhen or FOB Guangzhou. You can choosethe one which is the
most convenient or cost
effective for you.
Q: What about the lead time for the mass production?
A: 20-30 working days.
