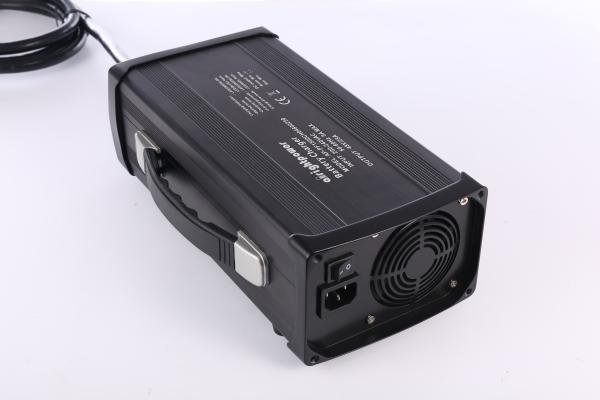

2000W 2400W 24 Volt Ac Dc Power Supply 48 Volt 60V 120A 100A Lithium Battery Charger

Advantage Features:

深圳市盈源电子有限公司 Shenzhen YingYuan Electronics Co., Ltd Address:The 4-7th Floor, Building 8, HongYe Industrial Park, XiXiang Town, BaoAn District, ShenZhen, China
Specifications			PRODUCTS PICTURE
1800W--2400W BATTERY CHAEGER l AC Input Voltage Range :AC100V-AC240V l AC Input Frequency: 45～65HZ l AC Power Factor Correction: ≥0.98 l Output Voltage:24V～90V l Output Current:60A(Max) l Full Load Efficiency: ≥90% l Shock & Vibration: 10～50HZ 2G 10 minutes,X,Y,Z /60 minutes l Operating Temperature: -20ºC～+45ºC(-20ºF～+113ºF) l Storage Temperature: -40ºC～+85ºC(-40ºF～+185ºF) l Dimensions (mm): L)300х(W)140х(H)90 l Net Weight: 4.5kg
TYPICAL MODEL LIST
Charger Model	Rated Input Voltage	Battery Standard Voltage	Maximum charging Current	Maximum charging Current
AP-PF1800CH02920450	100-240	24	29.2	45
AP-PF1800CH04200300	100-240	36	42	30
AP-PF1800CH05460240	100-240	48	54.6	24
AP-PF1800CH07140180	100-240	60	71.4	18
AP-PF1800CH08400150	100-240	72	84	15
AP-PF1800CH02400450	100-240	24	29.4	45
AP-PF1800CH03600300	100-240	36	44.1	30
AP-PF1800CH04800220	100-240	48	58.8	22
AP-PF1800CH06000180	100-240	60	73.5	18
AP-PF1800CH07200150	100-240	72	88.2	15
AP-PF2400CH02920600	220V	24	29.2	60
AP-PF2400CH04200500	220V	36	42	50
AP-PF2400CH05460400	220V	48	54.6	40
AP-PF2400CH07140300	220V	60	71.4	30
AP-PF2400CH08400250	220V	72	84	25
AP-PF2400CH02400600	220V	24	29.2	45
AP-PF2400CH03600500	220V	36	44.1-	30
AP-PF2400CH04800380	220V	48	58.8	24
AP-PF2400CH06000300	220V	60	73.5	30
AP-PF2400CH07200250	220V	72	88.2	25
SPECIFICATIONS
AC Input Voltage Range:	AC100V-AC 240V	Shock & Vibration:	10～50HZ 2G 10 minutes,X,Y,Z /60 minutes
AC Input Frequency:	45～65HZ	Operating Temperature:	-20ºC～45ºC(-20ºF～+113ºF)
AC Power Factor Correction:	≥0.98	Storage Temperature:	-40ºC～+85ºC(-40ºF～185ºF)
Output Voltage:	24V～90V	Dimensions (mm):	(L)300х(W)140х(H)90
Output Current:	60A(Max)	Net Weigh:	4.5kg
Full Load Efficiency:	≥90%	certifications	UL CE FCC RoHs
Protections	Thermal Self-Protection Charger will be stopped automatically when reaches to Maximum temperature , LED light will be red to warn it
	Short- circuit Protection When Short Circuit happened ,charger will turn off
	Reverse Connection Protection When the battery is polarity reversed ,the charger will cut off the connection between the circuit and the battery
	Battery Broken protection When some battery broke ,battery can not reach 100% full-charged ,charger will be shut down automatically
Application	Electric motorcycle/Golf cart/Sightseeing car/Cleaning car/Low speed car and so on

Packing way :colorful box ,PE bag , white box and so on .

We are specialized in the design, manufacture of 5W to 120W power supplies, vehicle power adapters, USB chargers, and 100W to 3600W battery chargers. Almost all our products are with safety approvals such as UL, CE, GS, RCM, PSE, KC, KCC, BS, CCC, and so on. Our customers are from all over the world including the United States, Canada, Europe, Japan, Korea, and so on.

Our R& D department has more than 30 professional technicians and engineers. During these years, we have developed hundreds of products and obtained more than 30 patents. Our battery charger and usb charger factory is equipped with a total of 8 automatic production lines. And thanks to modern production and testing devices, our factory stable output can reach 2.4Millions units/ month.

Always attaching great importance to product quality and environmental protection, we are approved by the ISO9001 quality management system and ISO14001 environment management system. Over the years, our factory has won credibility from numerous Chinese and international customers. Our ideas are Integrity, Dedication, Practicability, innovation and to be one of the leaders in this industry. Warmly welcome you to visit us and make win-win cooperation!
