48W Series Switching Power Supply

About us:

We have manufacturing facilities in both Shenzhen and huizhou, the factory area of Shenzhen is over 12000m², with a total of 800 staff in both.

More than 50 of them are senior engineers of product design and development and mold design, QA, and security controls. At the same time,

it has a mold injection department, providing professional OEM/ODM services.

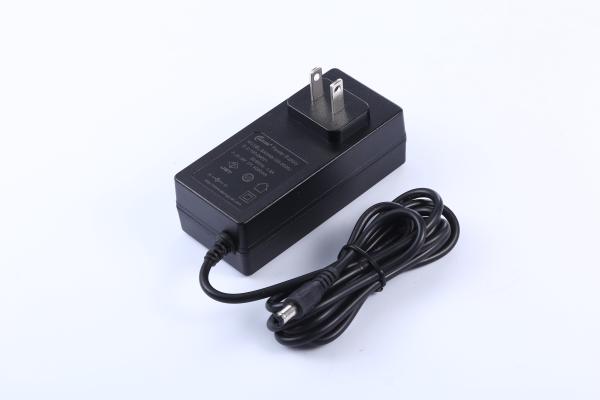

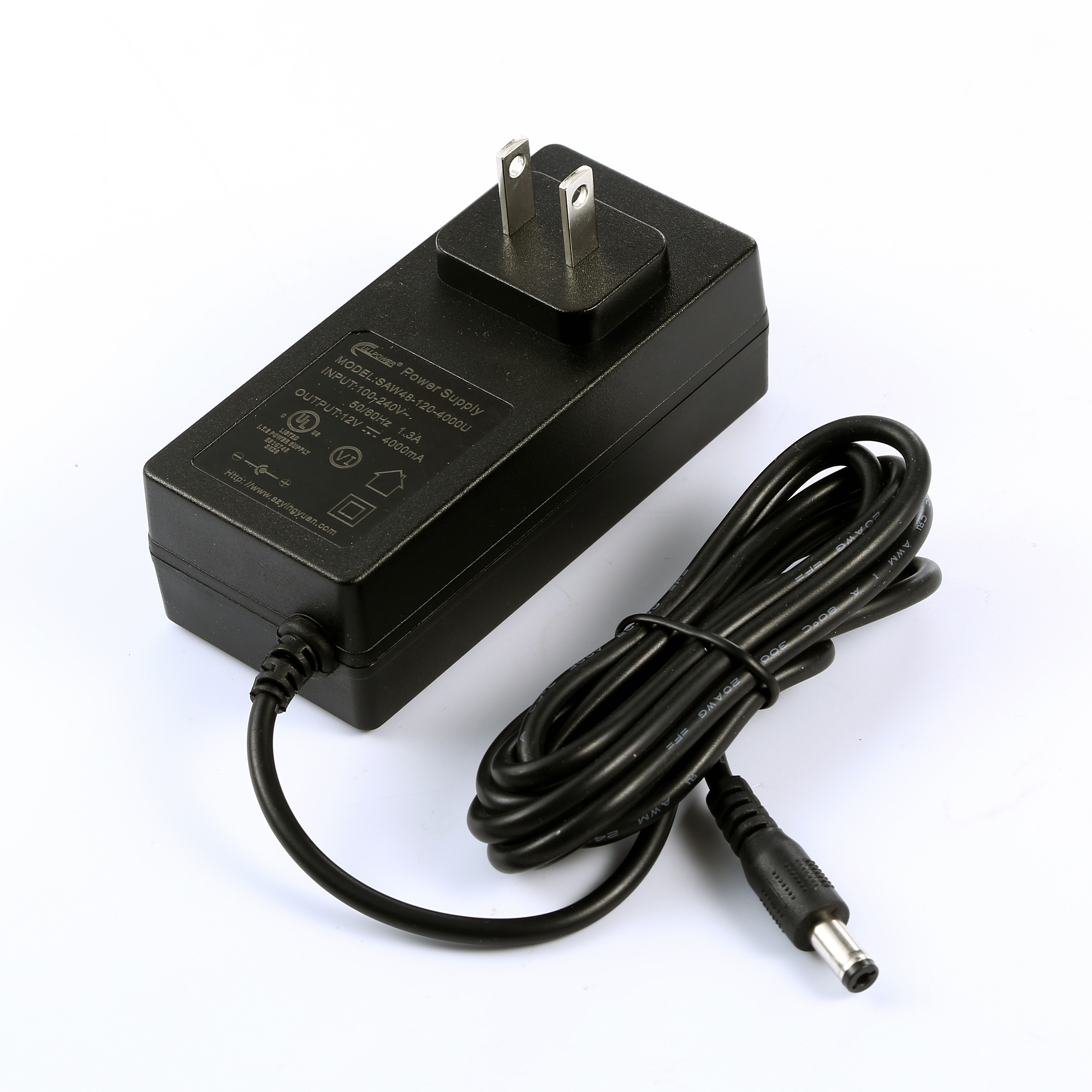

FEATURES			SAFETIES APPROVALS		PRODUCTS PICTURE
v EFFICIENCY VI v 36-48 WATT OUTPUT POWER v OVERCURRENT PROTECTION v SHORT CIRCUIT PROTECTION v INPUT PROTECTION v ROHS COMPLIANT			v UL v CB v FCC v ROHS v REACH
TYPICAL MODEL LIST
I/P Voltage	Typical model		Output Voltage	Output Current	Ripple & noise		Efficiency Level
90 - 264V 47 - 63HZ	SAW48C-090-5000		9V	5000mA	90mV		6.0 L
	SAW48C-120-4000		12V	4000mA	90mV		6.0 L
	SAW48C-150-3000		15V	3000mA	120mV		6.0 L
	SAW48C-180-2666		18V	2666mA	120mV		6.0 L
	SAW48C-240-2000		24V	2000mA	150mV		6.0 L
	SAW48C-360-1333		36V	1333mA	150mV		6.0 L
INPUT SPECIFICATIONS				GENERAL SPECIFICATIONS
Input Voltage		90〜264VAC		Primary to Secondary		50MΩ MIN
Input Frequency		47〜63Hz		Efficiency		VI
Input Current		1.20A Max		Standby Power		0.3W MAX
Inrush Current		40.0A Max		Leakage Current		0.25mA MAX
OUTPUT SPECIFICATIONS				ENVIRONMENTAL SPECIFICATIONS
Output Voltage Range		5V-36V		Operating Temperature		10°C~40°C
Output Current Range		100mA-5000mA		Cooling		Convection
Output Power Range		48.0W Max		Temperature Coefficient		0.05%/°C
Short Circuit Protection		Automatic Recovery		Humidity		5~95%RH(non-condensing)
Over-Current Protection		Automatic Recovery		Storage Temperature		-20°C~+80%°C
Ripple and Noise		100mVp-p max		PHYSICAL SPECIFICATIONS
Turn On Time		20-30mS normal		Physical Specifications		97.4mm *45.4mm *32.4mm
Line Regulation		1% max		SAFETIES STANDARD
Output Regulation		±5%		Safeties Standard		62368 / 60950/ 60335/ 61558/ 60065

Our advantage:

We are happy to receive you in Shenzhen China and show you around our workplaces. With more than 10+ years of experience in OEM/ODM

and service, authentic and patented product designs, you can trust us, check the produce program, start our cooperation.

Being grateful to customers, innovative in de-signing products, and practical with daily workare our core corporate values. We are determined to

provide customers with quality products atcompetitive prices, and with superior services.Don't take our word for it! Stop by, visit our facil-ity and

see how we work. We will be delighted toshow you around, and discuss any opportunitiesto work with you!

We are specialized in the design, manufacture of 5W to 120W power supplies, vehicle power adapters, USB chargers, and 100W to 3600W battery chargers. Almost all our products are with safety approvals such as UL, CE, GS, RCM, PSE, KC, KCC, BS, CCC, and so on. Our customers are from all over the world including the United States, Canada, Europe, Japan, Korea, and so on.

Our R& D department has more than 30 professional technicians and engineers. During these years, we have developed hundreds of products and obtained more than 30 patents. Our battery charger and usb charger factory is equipped with a total of 8 automatic production lines. And thanks to modern production and testing devices, our factory stable output can reach 2.4Millions units/ month.

Always attaching great importance to product quality and environmental protection, we are approved by the ISO9001 quality management system and ISO14001 environment management system. Over the years, our factory has won credibility from numerous Chinese and international customers. Our ideas are Integrity, Dedication, Practicability, innovation and to be one of the leaders in this industry. Warmly welcome you to visit us and make win-win cooperation!
