65W Switching Power Supply

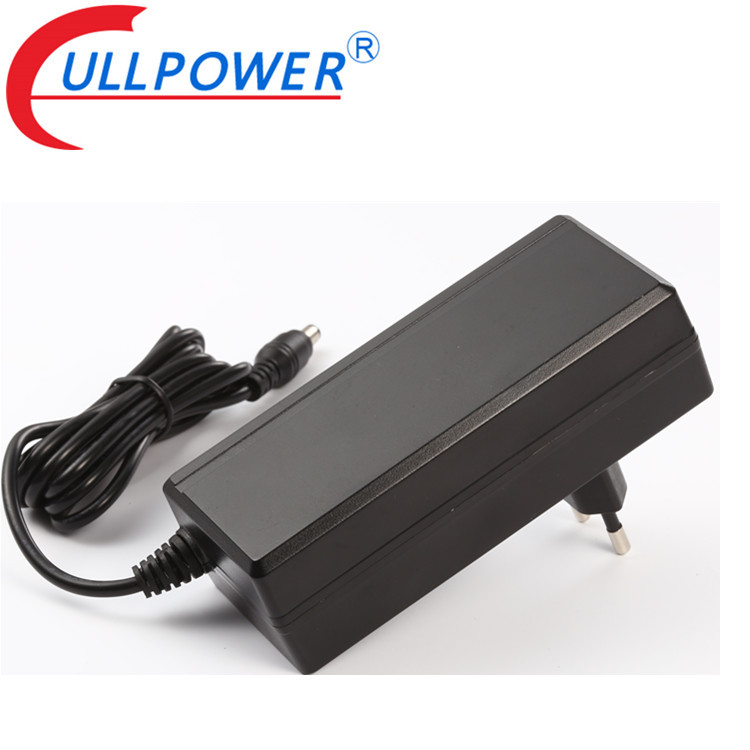

FEATURES			SAFETIES APPROVALS		PRODUCTS PICTURE
v EFFICIENCY VI v 48-65W WATT OUTPUT POWER v OVERCURRENT PROTECTION v SHORT CIRCUIT PROTECTION v INPUT PROTECTION v ROHS COMPLIANT			US Type v UL v CB v FCC v ROHS v REACH
TYPICAL MODEL LIST
I/P Voltage	Typical model		Output Voltage	Output Current	Ripple & noise		Efficiency
90 - 264V 47 - 63HZ	SAW65C-050-7000		5V	7000mA	90mV		VI 6.0 Level
	SAW65C-090-6000		9V	6000mA	90mV		VI 6.0 Level
	SAW65C-120-5000		12V	5000mA	120mV		VI 6.0 Level
	SAW65C-180-3300		18V	3300mA	120mV		VI 6.0 Level
	SAW65C-240-2500		24V	2500mA	150mV		VI 6.0 Level
	SAW65C-480-1250		48V	1250mA	150mV		VI 6.0 Level
INPUT SPECIFICATIONS				GENERAL SPECIFICATIONS
Input Voltage		90〜264VAC		Primary to Secondary		50MΩ MIN
Input Frequency		47〜63Hz		Efficiency		VI
Input Current		1.2A Max		Standby Power		0.30W MAX
Inrush Current		40A Max		Leakage Current		0.25mA MAX
OUTPUT SPECIFICATIONS				ENVIRONMENTAL SPECIFICATIONS
Output Voltage Range		5.0V-48.0V		Operating Temperature		10°C~40°C
Output Current Range		100mA-7000mA		Cooling		Convection
Output Power Range		65W Max		Temperature Coefficient		0.05%/°C
Short Circuit Protection		Automatic Recovery		Humidity		5~95%RH(non-condensing)
Over-Current Protection		Automatic Recovery		Storage Temperature		-20°C~+80%°C
Ripple and Noise		100mVp-p max		PHYSICAL SPECIFICATIONS
Turn On Time		20-30mS normal		Physical Specifications		117.3mm *50.3mm *33.3mm
Line Regulation		1% max		SAFETIES STANDARD
Output Regulation		±5%		Safeties Standard		62368 / 60950/ 60335/ 61558/ 60065

FQA:

Q1. Can I have a sample order for adaptor ?

A: Yes, we welcome sample order to test and check quality.

Q2: Do you offer guarantee for the products?
A: Yes, all the power adapter come with 3-5 years warranty.

Q3. Do you have certificates for your products?
A: :Yes,we have UL/CUL,FCC,RoHS,CE,KC,SAA,TUV GS,PSE,KCC,NOM,S-Mark,BSMI Certifications.

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5.What's your payment item?
A: Our standard payment is T/T in advance, Credit Card , E-Checking, Paypal and Trade Assurance on Alibaba.

Q6. Is it OK to print my logo on adaptor ?
A: Yes. Please inform us formally before our production and confirm the design firstly.

Q7: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.01%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.

We are specialized in the design, manufacture of 5W to 120W power supplies, vehicle power adapters, USB chargers, and 100W to 3600W battery chargers. Almost all our products are with safety approvals such as UL, CE, GS, RCM, PSE, KC, KCC, BS, CCC, and so on. Our customers are from all over the world including the United States, Canada, Europe, Japan, Korea, and so on.

Our R& D department has more than 30 professional technicians and engineers. During these years, we have developed hundreds of products and obtained more than 30 patents. Our battery charger and usb charger factory is equipped with a total of 8 automatic production lines. And thanks to modern production and testing devices, our factory stable output can reach 2.4Millions units/ month.

Always attaching great importance to product quality and environmental protection, we are approved by the ISO9001 quality management system and ISO14001 environment management system. Over the years, our factory has won credibility from numerous Chinese and international customers. Our ideas are Integrity, Dedication, Practicability, innovation and to be one of the leaders in this industry. Warmly welcome you to visit us and make win-win cooperation!
