12W Power Switch Adapter Switch Power Adapter Switching Power Adaptor 12v Switching

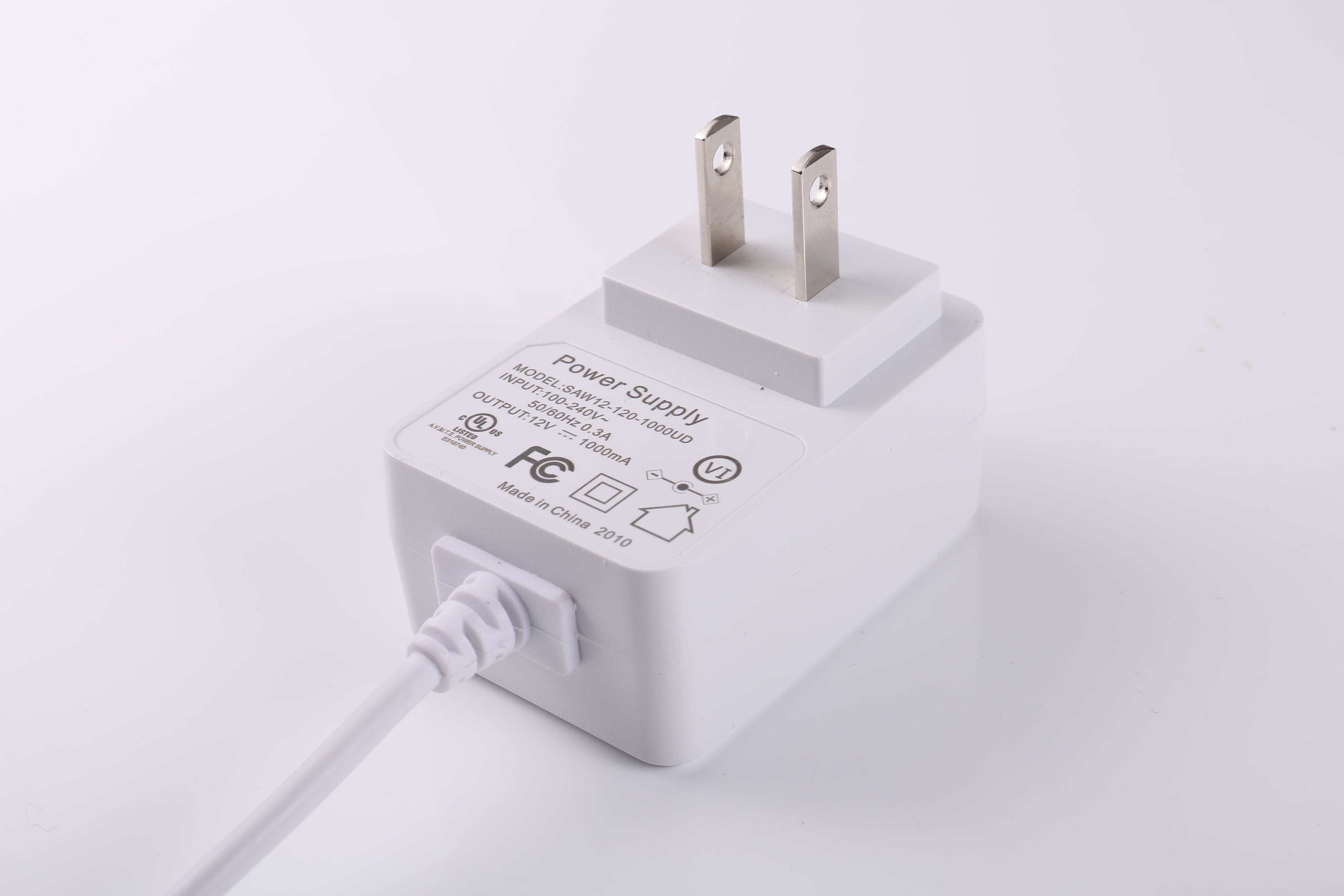

FEATURES			SAFETIES APPROVALS		PRODUCTS PICTURE
v EFFICIENCY VI v 6-12 WATT OUTPUT POWER v OVERCURRENT PROTECTION v SHORT CIRCUIT PROTECTION v INPUT PROTECTION v ROHS COMPLIANT			Desktop Type v UL v CB v FCC v ROHS v REACH
TYPICAL MODEL LIST
I/P Voltage	Typical model		Output Voltage	Output Current	Ripple & noise		Efficiency
90 - 264V 47 - 63HZ	CGSW12-050-1500		5V	1500mA	60mV		Level 6
	CGSW12-050-2000		5V	2000mA	60mV		Level 6
	CGSW12-090-1000		9V	1000mA	60mV		Level 6
	CGSW12-120-1000		12V	1000mA	60mV		Level 6
	CGSW12-150-0800		15V	800mA	60mV		Level 6
	CGSW12-240-0500		24V	500mA	60mV		Level 6
INPUT SPECIFICATIONS				GENERAL SPECIFICATIONS
Input Voltage		90〜264VAC		Primary to Secondary		50MΩ MIN
Input Frequency		47〜63Hz		Efficiency		VI
Input Current		0.2A Max		Standby Power		0.1W MAX
Inrush Current		40A Max		Leakage Current		0.25mA MAX
OUTPUT SPECIFICATIONS				ENVIRONMENTAL SPECIFICATIONS
Output Voltage Range		4.00V-36.00V		Operating Temperature		10°C~40°C
Output Current Range		100mA-2100mA		Cooling		Convection
Output Power Range		12.0W Max		Temperature Coefficient		0.05%/°C
Short Circuit Protection		Automatic Recovery		Humidity		5~95%RH(non-condensing)
Over-Current Protection		Automatic Recovery		Storage Temperature		-20°C~+80%°C
Ripple and Noise		100mVp-p max		PHYSICAL SPECIFICATIONS
Turn On Time		20-30mS normal		Physical Specifications		59.1mm *40.2mm *26.1mm
Line Regulation		1% max		SAFETIES STANDARD
Output Regulation		±5%		Safeties Standard		62368 / 60950/ 60335/ 61558/ 60065 / UL1310

DC Plug

Why choose us?

1.Professional: The company is committed to consumer electronic products power adapter, switching power supply, DC power

supply, voltage regulator power supply, charger and other professional production and processing companies.

2. Quality: the company introduced advanced aging equipment and testing equipment, so as to ensure the quality of products

we strictly control each process, products through professional aging test

3.Professional customization to your satisfaction, the way of cooperation is diversified and open, we can jointly develop and

execute projects with customers, and we can customize solutions according to customer requirements .OEM and

FQA:

Q1: Free sample ?
A1: Yes, 1-3pcs free sample is available delivery cost collect

Q2: What is the sample time? Mass production lead time ?
A2: About 3-5days for sample and 21-28days for mass production

Q3: What is MOQ ?
A3: 500pcs for transformer and 1,000pcs for adapters/ led driver, for trial order we could discuss quantity

Q4: How about the packages ?
A4: Fox export usually white box +shipping carton.

We are specialized in the design, manufacture of 5W to 120W power supplies, vehicle power adapters, USB chargers, and 100W to 3600W battery chargers. Almost all our products are with safety approvals such as UL, CE, GS, RCM, PSE, KC, KCC, BS, CCC, and so on. Our customers are from all over the world including the United States, Canada, Europe, Japan, Korea, and so on.

Our R& D department has more than 30 professional technicians and engineers. During these years, we have developed hundreds of products and obtained more than 30 patents. Our battery charger and usb charger factory is equipped with a total of 8 automatic production lines. And thanks to modern production and testing devices, our factory stable output can reach 2.4Millions units/ month.

Always attaching great importance to product quality and environmental protection, we are approved by the ISO9001 quality management system and ISO14001 environment management system. Over the years, our factory has won credibility from numerous Chinese and international customers. Our ideas are Integrity, Dedication, Practicability, innovation and to be one of the leaders in this industry. Warmly welcome you to visit us and make win-win cooperation!
