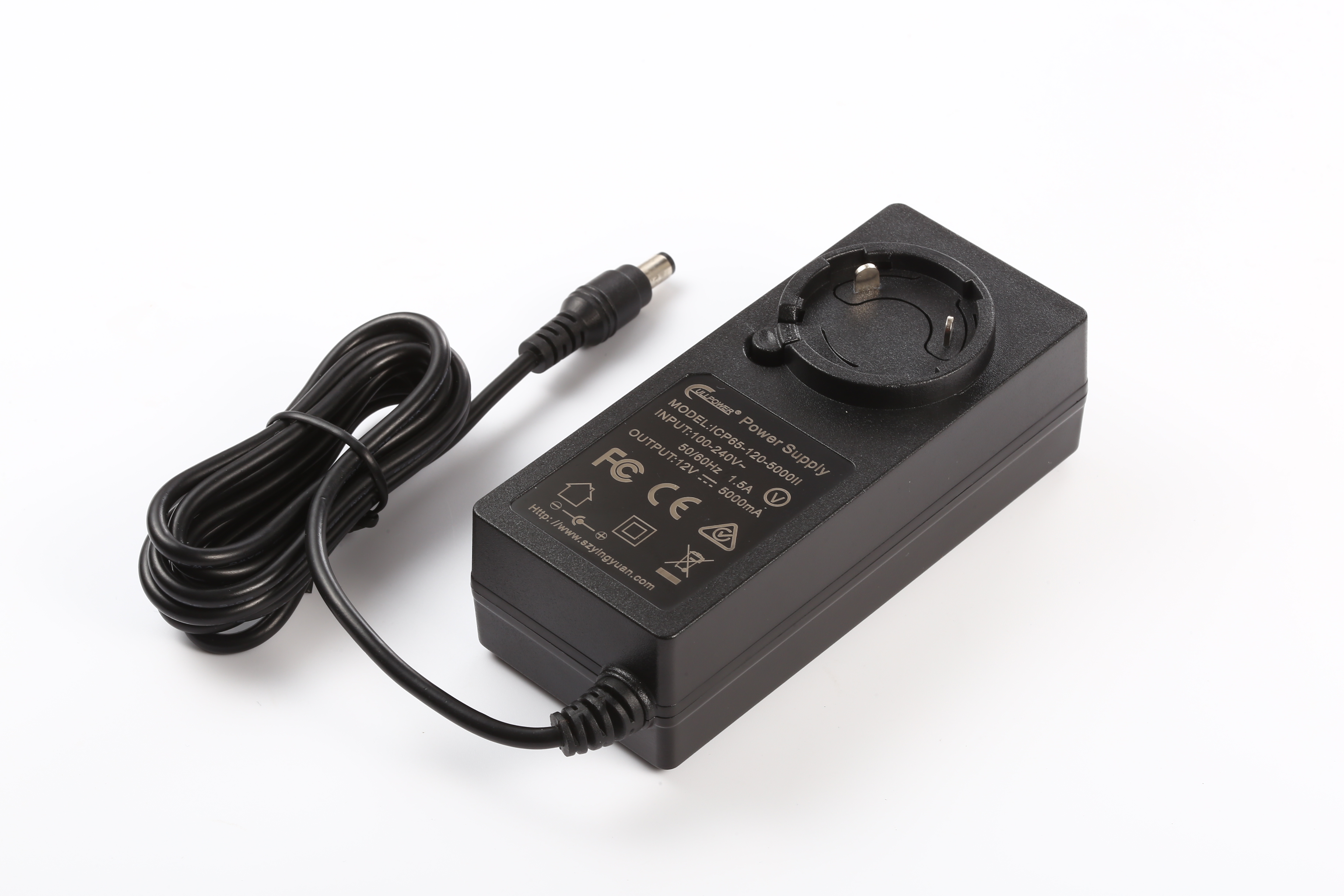

60W Switching Adapter 12v High Power Switching Power Supply Universal Switching Power Adapter

FEATURES			SAFETIES APPROVALS		PRODUCTS PICTURE
v EFFICIENCY VI v C6, C8, C14 AC Socket v 48-65W WATT OUTPUT POWER v OVERCURRENT PROTECTION v SHORT CIRCUIT PROTECTION v INPUT PROTECTION v REACH, ROHS COMPLIANT			Desktop Type v UL, FCC v CB, CE, UKCA v CCC, KC, PSE v SAA v REACH, ROHS
TYPICAL MODEL LIST
I/P Voltage	Typical model		Output Voltage	Output Current	Ripple & noise		Efficiency
90 - 264V 47 - 63HZ	CGSW60-050-7000		5V	7000mA	90mV		VI 6.0 Level
	CGSW60-090-6000		9V	6000mA	90mV		VI 6.0 Level
	CGSW60-120-5000		12V	5000mA	120mV		VI 6.0 Level
	CGSW60-180-3300		18V	3300mA	120mV		VI 6.0 Level
	CGSW60-240-2500		24V	2500mA	150mV		VI 6.0 Level
	CGSW60-480-1250		48V	1250mA	150mV		VI 6.0 Level
INPUT SPECIFICATIONS				GENERAL SPECIFICATIONS
Input Voltage		90〜264VAC		Primary to Secondary		50MΩ MIN
Input Frequency		47〜63Hz		Efficiency		VI
Input Current		1.2A Max		Standby Power		0.3W MAX
Inrush Current		40A Max		Leakage Current		0.25mA MAX
OUTPUT SPECIFICATIONS				ENVIRONMENTAL SPECIFICATIONS
Output Voltage Range		5.00V-48.00V		Operating Temperature		10°C~40°C
Output Current Range		100mA-7000mA		Cooling		Convection
Output Power Range		65.00W Max		Temperature Coefficient		0.05%/°C
Short Circuit Protection		Automatic Recovery		Humidity		5~95%RH(non-condensing)
Over-Current Protection		Automatic Recovery		Storage Temperature		-20°C~+80%°C
Ripple and Noise		100mVp-p max		PHYSICAL SPECIFICATIONS
Turn On Time		20-30mS normal		Physical Specifications		117.3mm *50.3mm *33.3mm
Line Regulation		1% max		SAFETIES STANDARD
Output Regulation		±5%		Safeties Standard		62368 / 60950/ 60335/ 61558/ 60065 / UL1310

Certification

FQA

Q: What is the main product of your company ?

A: 1. AC DC Power Adapters 2. USB Smart Charger 3. QC charger

Q: What certificates do you have ?

A: Our products have completely been approved UL,cUL,FCC,CCC,GS,CB,CE,TUV,SAA,KC,ROHS,PSE,etc. In order to make you fully understood the quality of our products,we would provide you with related certifications on your request.

Q: What`s your MOQ?

A: There is no MOQ and you are welcomed to order any amount.But you will get discount price for bulk order.

Q: Would you give me more details about the price of your products ?

A: We believe our quality and price are very competitive in worldwide market and We promise to offer you best cost-efficient products with higher quality.

Q: How can I get the matched adaptor production with only requirements/description ?

A: Ok Dear client, We`ll introduce you the matched products

according to your descriptions. Please kindly CLICK HERE to describe your requirements with following necessary tips :

a. What's the input please? Example:100-240VAC, 50/60Hz2

b. What's the output, please? Example: 5V DC 2A

c. What certificates do you need ?Example:UL+FCC needed

The more details you provide,the faster we could provide you with the corresponding products.

We are specialized in the design, manufacture of 5W to 120W power supplies, vehicle power adapters, USB chargers, and 100W to 3600W battery chargers. Almost all our products are with safety approvals such as UL, CE, GS, RCM, PSE, KC, KCC, BS, CCC, and so on. Our customers are from all over the world including the United States, Canada, Europe, Japan, Korea, and so on.

Our R& D department has more than 30 professional technicians and engineers. During these years, we have developed hundreds of products and obtained more than 30 patents. Our battery charger and usb charger factory is equipped with a total of 8 automatic production lines. And thanks to modern production and testing devices, our factory stable output can reach 2.4Millions units/ month.

Always attaching great importance to product quality and environmental protection, we are approved by the ISO9001 quality management system and ISO14001 environment management system. Over the years, our factory has won credibility from numerous Chinese and international customers. Our ideas are Integrity, Dedication, Practicability, innovation and to be one of the leaders in this industry. Warmly welcome you to visit us and make win-win cooperation!
