12W Switching Power Adapter 12v 2a Power Supply 6 Pin Adapter Notebook Power Adapter

About Yingyuan:

HK Yingyuan Electronics aiming to offer high quality and reliable products to customers, founded since 1989, headquarted in HK, global sales office

in Shenzhen and production factories in Shenzhen of over 1000 workers. Our products focus on ac ac/dc linear adapters,

switching adapters, power supplies etc. We have solid experience to offer good quality products to customers.

FEATURES			SAFETIES APPROVALS		PRODUCTS PICTURE
v EFFICIENCY VI v 6-12 WATT OUTPUT POWER v OVERCURRENT PROTECTION v SHORT CIRCUIT PROTECTION v INPUT PROTECTION v ROHS COMPLIANT			Multi-blade Type v UL,FCC v CB,CE,UKCA v SAA,PSE,CCC,KC,BIS,BSMI v REACH, ROHS
TYPICAL MODEL LIST
I/P Voltage	Typical model		Output Voltage	Output Current	Ripple & noise		Efficiency
90 - 264V 47 - 63HZ	ICP12-050-1500		5V	1500mA	60mV		Level 6 VI
	ICP12-050-2000		5V	2000mA	60mV		Level 6 VI
	ICP12-090-1000		9V	1000mA	60mV		Level 6 VI
	ICP12-120-1000		12V	1000mA	60mV		Level 6 VI
	ICP12-150-0800		15V	800mA	60mV		Level 6 VI
	ICP12-240-0500		24V	500mA	60mV		Level 6 VI
INPUT SPECIFICATIONS				GENERAL SPECIFICATIONS
Input Voltage		90〜264VAC		Primary to Secondary		50MΩ MIN
Input Frequency		47〜63Hz		Efficiency		VI
Input Current		0.2A Max		Standby Power		0.1W MAX
Inrush Current		40A Max		Leakage Current		0.25mA MAX
OUTPUT SPECIFICATIONS				ENVIRONMENTAL SPECIFICATIONS
Output Voltage Range		4.00V-36.00V		Operating Temperature		10°C~40°C
Output Current Range		100mA-2100mA		Cooling		Convection
Output Power Range		12.0W Max		Temperature Coefficient		0.05%/°C
Short Circuit Protection		Automatic Recovery		Humidity		5~95%RH(non-condensing)
Over-Current Protection		Automatic Recovery		Storage Temperature		-20°C~+80%°C
Ripple and Noise		100mVp-p max		PHYSICAL SPECIFICATIONS
Turn On Time		20-30mS normal		Physical Specifications		59.1mm *40.2mm *26.1mm
Line Regulation		1% max		SAFETIES STANDARD
Output Regulation		±5%		Safeties Standard		62368 / 60950/ 60335/ 61558/ 60065 / UL1310

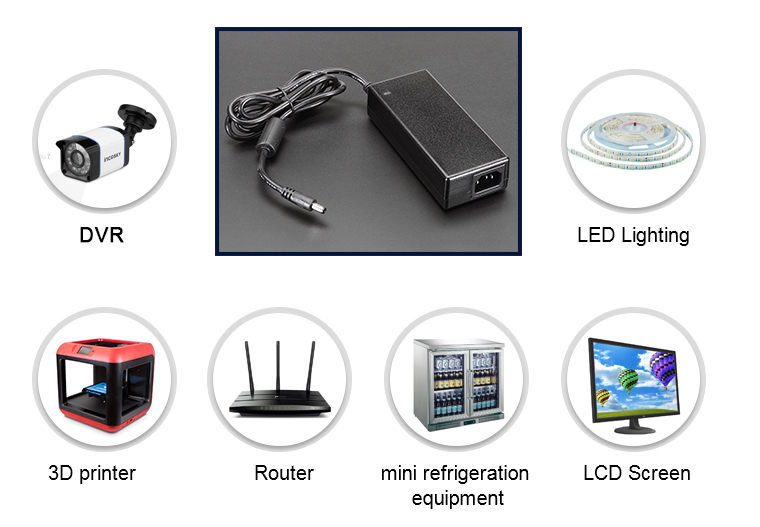

Application

FQA:

1. Are you factory?

Yes! we are FACTORY DIRECT, OEM ODM is welcomed.

2. Can you support OEM Service?

We could provide OEM design the products according to the specification.

3. Can you offer sample to check your quality?

Yes! After quotation, you can require for samples to check our quality.

4. What's the delivery/lead/production time?

1-3 working days for sample delivery, 10-20 working days for bulk production. For large quantity order, it depends on

5. How to get your samples?

Our samples less 5pcs will be free of charge, we will offer 3-5pcs in usual. Customer need offer us express account and address to send samples, samples lead time 7-10 days.The normal express account should be Fedex, TNT, UPS, DHL or EMS.

6. What is your terms and payment terms?

T/T, L/C or negotiable with sales representative.

7. Do you inspect the finished products?

Yes. Each product is 200% tested and inspected before package, then we have OQC to make sampling inspecttion to ensure good quality products. Our current quality level for linear adapters is below 100PPM.

We are specialized in the design, manufacture of 5W to 120W power supplies, vehicle power adapters, USB chargers, and 100W to 3600W battery chargers. Almost all our products are with safety approvals such as UL, CE, GS, RCM, PSE, KC, KCC, BS, CCC, and so on. Our customers are from all over the world including the United States, Canada, Europe, Japan, Korea, and so on.

Our R& D department has more than 30 professional technicians and engineers. During these years, we have developed hundreds of products and obtained more than 30 patents. Our battery charger and usb charger factory is equipped with a total of 8 automatic production lines. And thanks to modern production and testing devices, our factory stable output can reach 2.4Millions units/ month.

Always attaching great importance to product quality and environmental protection, we are approved by the ISO9001 quality management system and ISO14001 environment management system. Over the years, our factory has won credibility from numerous Chinese and international customers. Our ideas are Integrity, Dedication, Practicability, innovation and to be one of the leaders in this industry. Warmly welcome you to visit us and make win-win cooperation!
