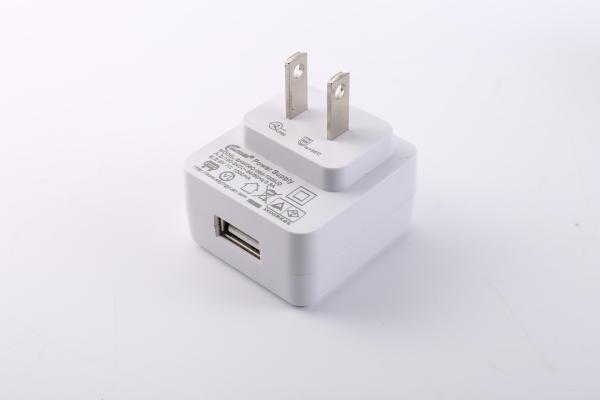

6W 5V0.5A 5V1A 5V1.2A 12V0.5A 24V0.25A AC DC Power Adapter

FEATURES			SAFETIES APPROVALS		PRODUCTS PICTURE
v EFFICIENCY VI v 0-6 WATT OUTPUT POWER v OVERCURRENT PROTECTION v SHORT CIRCUIT PROTECTION v INPUT PROTECTION v ROHS COMPLIANT			v UL v FCC v ROHS v REACH
TYPICAL MODEL LIST
I/P Voltage	Typical model		Output Voltage	Output Current	Ripple & noise		Efficiency
90 - 264V 47 - 63HZ	SAW06A1-050-0500		5V	500mA	30mV		6 VI
	SAW06A1-050-1000		5V	1000mA	40mV		6 VI
	SAW06A1-050-1200		5V	1200mA	50mV		6 VI
	SAW06A1-090-0500		9V	670mA	70mV		6 VI
	SAW06A1-120-0500		12V	500mA	50mV		6 VI
	SAW06A1-240-0250		24V	250mA	50mV		6 VI
INPUT SPECIFICATIONS				GENERAL SPECIFICATIONS
Input Voltage		90〜264VAC		Primary to Secondary		50MΩ MIN
Input Frequency		47〜63Hz		Efficiency		VI
Input Current		1.2A Max		Standby Power		0.1W MAX
Inrush Current		40A Max		Leakage Current		0.25mA MAX
OUTPUT SPECIFICATIONS				ENVIRONMENTAL SPECIFICATIONS
Output Voltage Range		5.00V-24.00V		Operating Temperature		10°C~40°C
Output Current Range		100mA-1200mA		Cooling		Convection
Output Power Range		6.00W Max		Temperature Coefficient		0.05%/°C
Short Circuit Protection		Automatic Recovery		Humidity		5~95%RH(non-condensing)
Over-Current Protection		Automatic Recovery		Storage Temperature		-20°C~+80%°C
Ripple and Noise		100mVp-p max		PHYSICAL SPECIFICATIONS
Turn On Time		20-30mS normal		Physical Specifications		43.2mm *40.2mm *22.2mm
Line Regulation		1% max		SAFETIES STANDARD
Output Regulation		±5%		Safeties Standard		62368 / 60950/ 60335/ 61558/ 60065

Factory Certification ISO 9001 Quality management system ISO 14001 Environment management system BSCI Business Social Compliance Initiative Certificate
Safety Certificates UL, FCC, CB, CE, UKCA, EAC, CCC, PSE, KC, KCC, RCM, C-TICK, SAA, BSMI, BIS etc

Powerful Customers

We are specialized in the design, manufacture of 5W to 120W power supplies, vehicle power adapters, USB chargers, and 100W to 3600W battery chargers. Almost all our products are with safety approvals such as UL, CE, GS, RCM, PSE, KC, KCC, BS, CCC, and so on. Our customers are from all over the world including the United States, Canada, Europe, Japan, Korea, and so on.

Our R& D department has more than 30 professional technicians and engineers. During these years, we have developed hundreds of products and obtained more than 30 patents. Our battery charger and usb charger factory is equipped with a total of 8 automatic production lines. And thanks to modern production and testing devices, our factory stable output can reach 2.4Millions units/ month.

Always attaching great importance to product quality and environmental protection, we are approved by the ISO9001 quality management system and ISO14001 environment management system. Over the years, our factory has won credibility from numerous Chinese and international customers. Our ideas are Integrity, Dedication, Practicability, innovation and to be one of the leaders in this industry. Warmly welcome you to visit us and make win-win cooperation!
