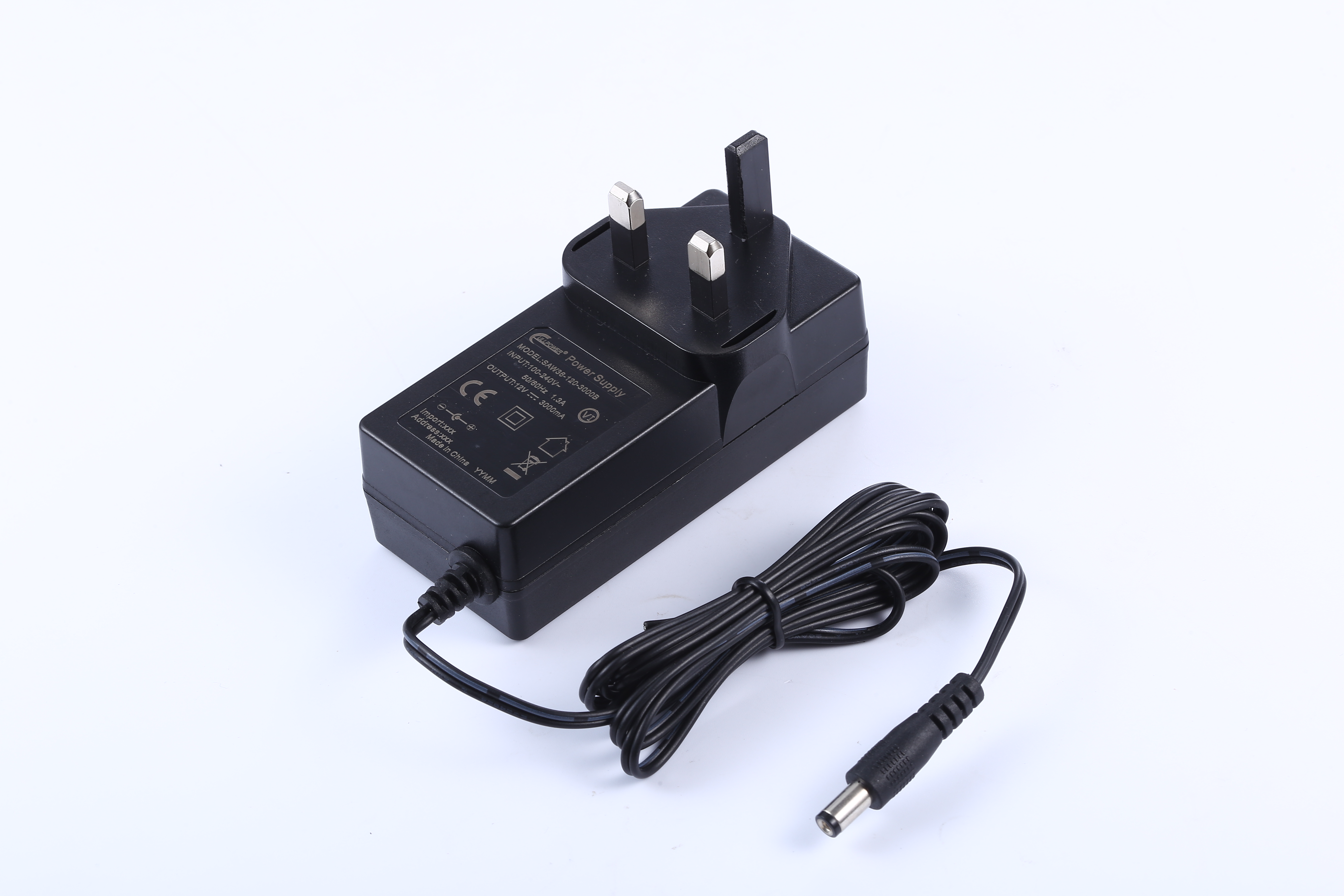

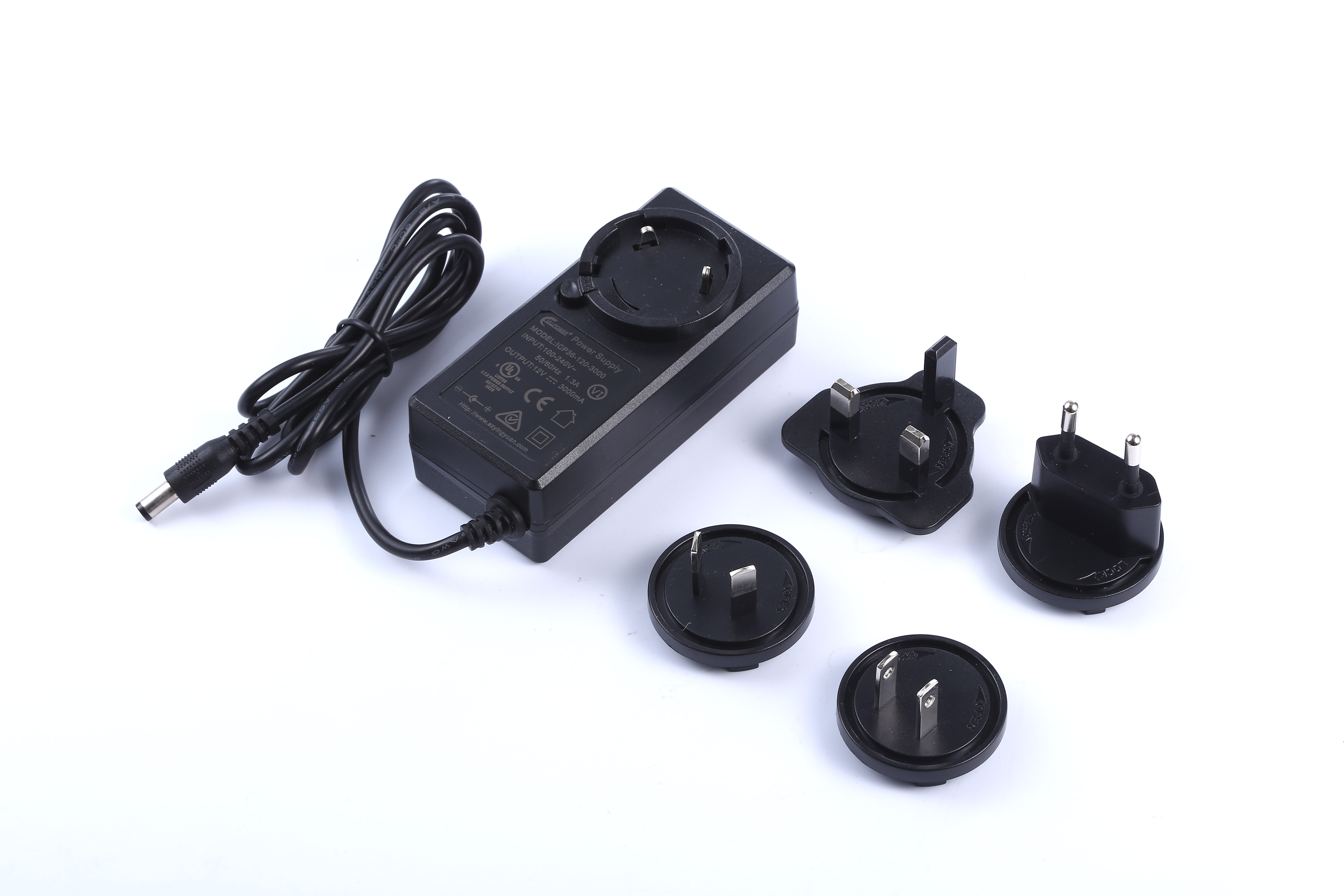

36W 9v Ac Dc Power Adapter Ac Dc Power Adapter 12v Ac Dc 7.5 V Power Adapter 6v Ac Dc

FEATURES			SAFETIES APPROVALS		PRODUCTS PICTURE
v EFFICIENCY VI v 30-36 WATT OUTPUT POWER v OVERCURRENT PROTECTION v SHORT CIRCUIT PROTECTION v INPUT PROTECTION v ROHS COMPLIANT			Desktop Type v UL, FCC v CB, CE, UKCA v CCC, KC, PSE v SAA v REACH, ROHS
TYPICAL MODEL LIST
I/P Voltage	Typical model		Output Voltage	Output Current	Ripple & noise		Efficiency Level
90 - 264V 47 - 63HZ	CGSW36-050-5000		5V	5000mA	90mV		L 6.00 VI
	CGSW36-090-3000		9V	3000mA	90mV		L 6.00 VI
	CGSW36-120-3000		12V	3000mA	120mV		L 6.00 VI
	CGSW36-150-2400		15V	2400mA	120mV		L 6.00 VI
	CGSW36-180-2000		18V	2000mA	150mV		L 6.00 VI
	CGSW36-240-1500		24V	1500mA	150mV		L 6.00 VI
INPUT SPECIFICATIONS				GENERAL SPECIFICATIONS
Input Voltage		90〜264VAC		Primary to Secondary		50MΩ MIN
Input Frequency		47〜63Hz		Efficiency		VI
Input Current		1.2A Max		Standby Power		0.30W MAX
Inrush Current		40.0A Max		Leakage Current		0.25mA MAX
OUTPUT SPECIFICATIONS				ENVIRONMENTAL SPECIFICATIONS
Output Voltage Range		5V-36.0V		Operating Temperature		10°C~40°C
Output Current Range		100mA-5000mA		Cooling		Convection
Output Power Range		36.0W Max		Temperature Coefficient		0.05%/°C
Short Circuit Protection		Automatic Recovery		Humidity		5~95%RH(non-condensing)
Over-Current Protection		Automatic Recovery		Storage Temperature		-20°C~+80%°C
Ripple and Noise		100mVp-p max		PHYSICAL SPECIFICATIONS
Turn On Time		20-30mS normal		Physical Specifications		97.6mm *45.6mm *32.6mm
Line Regulation		1% max		SAFETIES STANDARD
Output Regulation		±5%		Safeties Standard		62368 / 60950/ 60335/ 61558/ 60065

Certification

Delivery Way

FQA:

1.Q: Are you a factory or trading company?

A: We are manufacturer.

2.Q: How can I get some samples?

A: We are honored to offer you samples, pls contact our staff and leave detailed contact information, we promise to keep your information confidential.

3.Q: How does your factory do regarding quality control?

A: Quality is the priority. We always attach great importance to quality controlling from the start to the end. All our products have gained CE, FCC, certification.

4.Q:What can you do?

A: 1.All of our products have proceeded aging test before shipment and we guarantee safety while using our products.

2.Support imprint your logo on products and let your logo shine anywhere.

3.OEM/ODM orders are warmly welcomed!

5.Q:Warranty and return:

A:1.All products and accessories have been tested by 3 times before ship out.

2.We own the best after-sale service team, if any problem happens, our team will do our best to solve it for you.

We are specialized in the design, manufacture of 5W to 120W power supplies, vehicle power adapters, USB chargers, and 100W to 3600W battery chargers. Almost all our products are with safety approvals such as UL, CE, GS, RCM, PSE, KC, KCC, BS, CCC, and so on. Our customers are from all over the world including the United States, Canada, Europe, Japan, Korea, and so on.

Our R& D department has more than 30 professional technicians and engineers. During these years, we have developed hundreds of products and obtained more than 30 patents. Our battery charger and usb charger factory is equipped with a total of 8 automatic production lines. And thanks to modern production and testing devices, our factory stable output can reach 2.4Millions units/ month.

Always attaching great importance to product quality and environmental protection, we are approved by the ISO9001 quality management system and ISO14001 environment management system. Over the years, our factory has won credibility from numerous Chinese and international customers. Our ideas are Integrity, Dedication, Practicability, innovation and to be one of the leaders in this industry. Warmly welcome you to visit us and make win-win cooperation!
