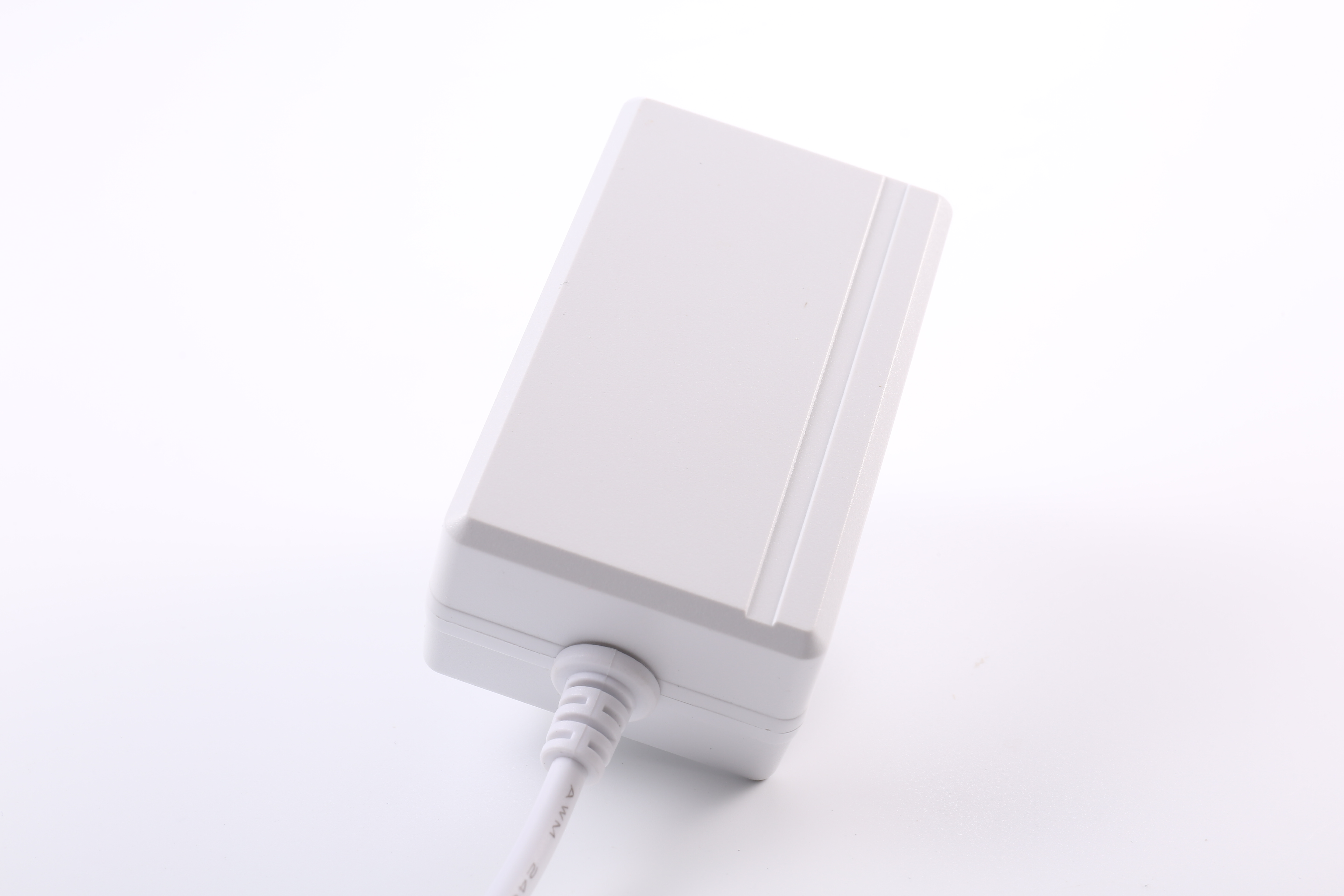

30W 6v Ac Dc Power Adapter 5 Volt Ac Dc Power Adapter Ac Dc Power Supply Wall Adapter

About Yingyuan

Yingyuan was founded in 2006 and is an ODM/OEM manufacturer of battery chargers and power supplies located in Shen-zhen city China.
Since its inception, we aim to provide innovative, clean and energy-ef-ficient power adapter and battery chargers which are fully compliant

withUL,CB,CE,FCC,SAA,KC,PSE,RoHS. We develop new products or introducemodifications in order to improve the existing range of products

of ourcustomers.ln addition, we provide custom solution for customers whohave special requirements for battery chargers or power supplies.
Our enterprise mission is create value for customers and produce greenpower, we seek to establish a long-term business relationships with

ourcustomers all overthe world.

FEATURES			SAFETIES APPROVALS		PRODUCTS PICTURE
v EFFICIENCY VI v 12-30 WATT OUTPUT POWER v OVERCURRENT PROTECTION v SHORT CIRCUIT PROTECTION v INPUT PROTECTION v ROHS COMPLIANT			Desktop Type v UL, FCC v CB, CE, UKCA v CCC, KC, PSE v SAA v REACH, ROHS
TYPICAL MODEL LIST
I/P Voltage	Typical model		Output Voltage	Output Current	Ripple & noise		Efficiency
90 - 264V 47 - 63HZ	CGSW30-090-2000		9V	2000mA	90mV		VI Level 6
	CGSW30-090-3000		9V	3000mA	90mV		VI Level 6
	CGSW30-120-2000		12V	2000mA	120mV		VI Level 6
	CGSW30-120-2500		12V	2500mA	120mV		VI Level 6
	CGSW30-180-1000		18V	1000mA	150mV		VI Level 6
	CGSW30-240-1000		24V	1000mA	150mV		VI Level 6
INPUT SPECIFICATIONS				GENERAL SPECIFICATIONS
Input Voltage		90〜264VAC		Primary to Secondary		50MΩ MIN
Input Frequency		47〜63Hz		Efficiency		VI
Input Current		0.8A Max		Standby Power		0.2W MAX
Inrush Current		40A Max		Leakage Current		0.25mA MAX
OUTPUT SPECIFICATIONS				ENVIRONMENTAL SPECIFICATIONS
Output Voltage Range		5.0V-48.0V		Operating Temperature		10°C~40°C
Output Current Range		100mA-3500mA		Cooling		Convection
Output Power Range		30.00W Max Power		Temperature Coefficient		0.05%/°C
Short Circuit Protection		Automatic Recovery		Humidity		5~95%RH(non-condensing)
Over-Current Protection		Automatic Recovery		Storage Temperature		-20°C~+80%°C
Ripple and Noise		100mVp-p max		PHYSICAL SPECIFICATIONS
Turn On Time		20-30mS normal		Physical Specifications		71.4mm *43.4mm *29.4mm
Line Regulation		1% max		SAFETIES STANDARD
Output Regulation		±5%		Safeties Standard		62368 / 60950/ 60335/ 61558/ 60065

Certification

Delivery Way

FQA:

1.What's Your Moq?
A:Small order can be accepted if we have in stock.The MOQ for OEM order is 1000PCS.

We are specialized in the design, manufacture of 5W to 120W power supplies, vehicle power adapters, USB chargers, and 100W to 3600W battery chargers. Almost all our products are with safety approvals such as UL, CE, GS, RCM, PSE, KC, KCC, BS, CCC, and so on. Our customers are from all over the world including the United States, Canada, Europe, Japan, Korea, and so on.

Our R& D department has more than 30 professional technicians and engineers. During these years, we have developed hundreds of products and obtained more than 30 patents. Our battery charger and usb charger factory is equipped with a total of 8 automatic production lines. And thanks to modern production and testing devices, our factory stable output can reach 2.4Millions units/ month.

Always attaching great importance to product quality and environmental protection, we are approved by the ISO9001 quality management system and ISO14001 environment management system. Over the years, our factory has won credibility from numerous Chinese and international customers. Our ideas are Integrity, Dedication, Practicability, innovation and to be one of the leaders in this industry. Warmly welcome you to visit us and make win-win cooperation!
