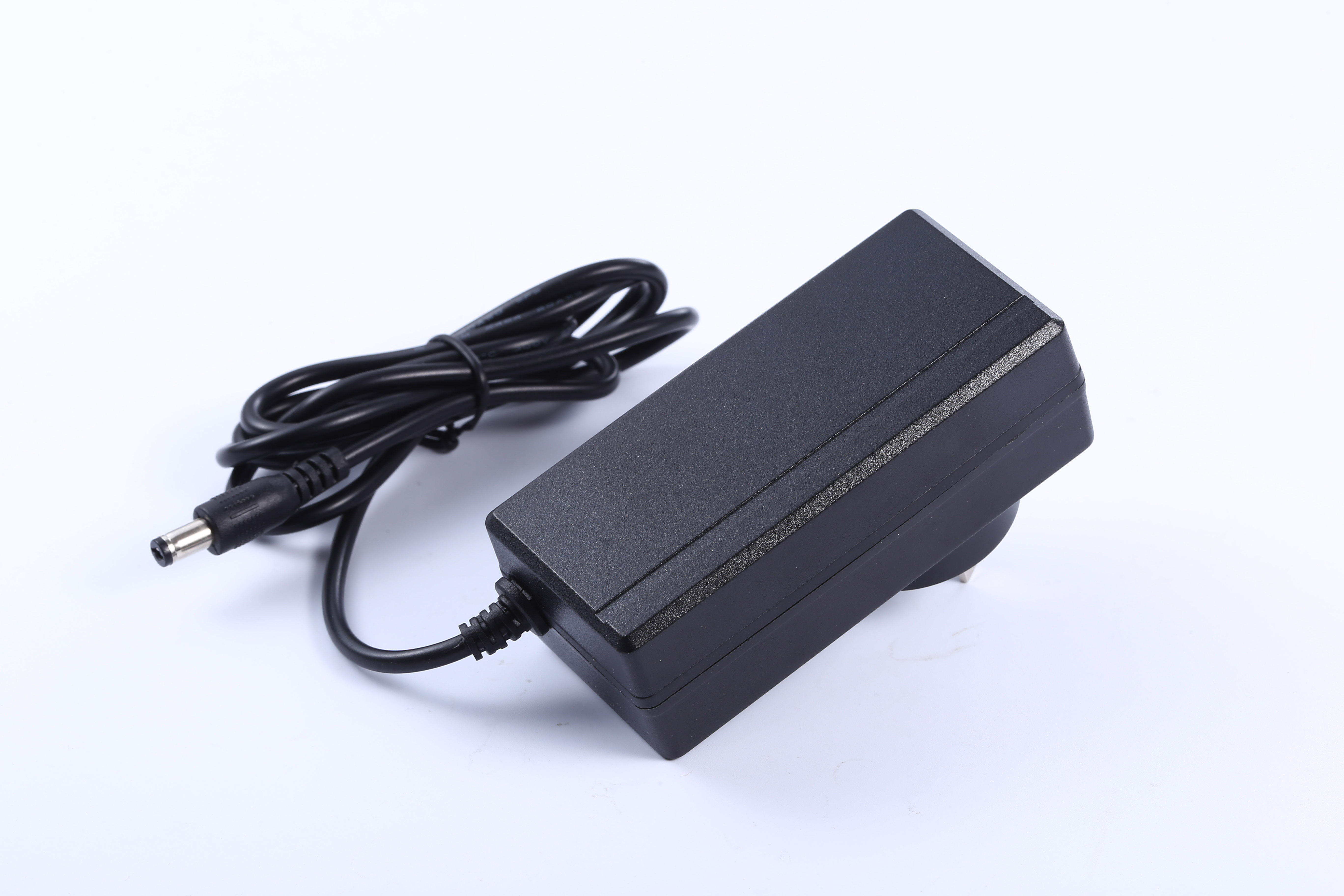

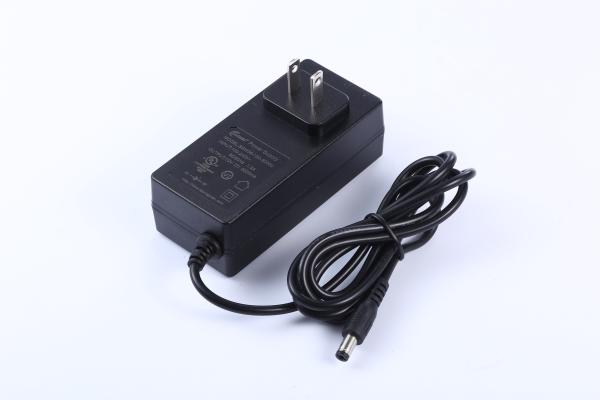

36W 24v 6a Power Adapter 12 Volt Power Supply Adapter Universal Ac Dc Power Adapter

Our service:

1. Large-scale production line, rapid delivery

2. Custom made as per your design in different size, color, logo

3. You are buying a 100% Brand New Product.

4. We are committed to offering high-quality and low-cost

5. Professional manufacturer for adapter/charger with quality guarantee and factory outlet price

6. Full products lines: power adapter/wall plug charger/desktop adapter both original and replacement adapter

7. Best after-sale service

8. Trial order is welcome

9. 100% aging test+droping test before shipment

10. 12 months quality warranty,be replaced freely in 1 year if non-artificial damage

FEATURES			SAFETIES APPROVALS		PRODUCTS PICTURE
v EFFICIENCY VI v 30-36 WATT OUTPUT POWER v OVERCURRENT PROTECTION v SHORT CIRCUIT PROTECTION v INPUT PROTECTION v ROHS COMPLIANT			Desktop Type v UL, FCC v CB, CE, UKCA v CCC, KC, PSE v SAA v REACH, ROHS
TYPICAL MODEL LIST
I/P Voltage	Typical model		Output Voltage	Output Current	Ripple & noise		Efficiency Level
90 - 264V 47 - 63HZ	CGSW36-050-5000		5V	5000mA	90mV		L 6.00 VI
	CGSW36-090-3000		9V	3000mA	90mV		L 6.00 VI
	CGSW36-120-3000		12V	3000mA	120mV		L 6.00 VI
	CGSW36-150-2400		15V	2400mA	120mV		L 6.00 VI
	CGSW36-180-2000		18V	2000mA	150mV		L 6.00 VI
	CGSW36-240-1500		24V	1500mA	150mV		L 6.00 VI
INPUT SPECIFICATIONS				GENERAL SPECIFICATIONS
Input Voltage		90〜264VAC		Primary to Secondary		50MΩ MIN
Input Frequency		47〜63Hz		Efficiency		VI
Input Current		1.2A Max		Standby Power		0.30W MAX
Inrush Current		40.0A Max		Leakage Current		0.25mA MAX
OUTPUT SPECIFICATIONS				ENVIRONMENTAL SPECIFICATIONS
Output Voltage Range		5V-36.0V		Operating Temperature		10°C~40°C
Output Current Range		100mA-5000mA		Cooling		Convection
Output Power Range		36.0W Max		Temperature Coefficient		0.05%/°C
Short Circuit Protection		Automatic Recovery		Humidity		5~95%RH(non-condensing)
Over-Current Protection		Automatic Recovery		Storage Temperature		-20°C~+80%°C
Ripple and Noise		100mVp-p max		PHYSICAL SPECIFICATIONS
Turn On Time		20-30mS normal		Physical Specifications		97.6mm *45.6mm *32.6mm
Line Regulation		1% max		SAFETIES STANDARD
Output Regulation		±5%		Safeties Standard		62368 / 60950/ 60335/ 61558/ 60065

AC DC Plug

FQA:

Q1:Are you a trading company or a manufacturer?

A1:we are a manufacturer of more than 16 years' experiences

Q2:Do you have OEMIODM service? Can I have my own logo on the products ?

A2:OEM/ODM is available.For logo, we can do laser and Screen print or print your logo on the label.Q3:How to get a sample?

A3.We offer 1-2 free samples for you to test once all details parameters confirmed,while you just need to pay for the freightQ4: How does your factory do related quality control?

A4: Quality is top priority, we have QC team comply with TQM to ensure the qualiy ,each step is in compliance to the standards5: What is the warranty of your products?

A5.The warranty is 24 months; if the products do not work in the warranty period, please let us know them in detail and show usthe relative picture, we will give after-sale service according to the situation.

6:Which payment terms do you offer?

A6:T/T & western union & Paypal

Q7:What is the lead time ?

A7:The lead time depends on the order quantities ,generally 7-30 days after receiving payment

We are specialized in the design, manufacture of 5W to 120W power supplies, vehicle power adapters, USB chargers, and 100W to 3600W battery chargers. Almost all our products are with safety approvals such as UL, CE, GS, RCM, PSE, KC, KCC, BS, CCC, and so on. Our customers are from all over the world including the United States, Canada, Europe, Japan, Korea, and so on.

Our R& D department has more than 30 professional technicians and engineers. During these years, we have developed hundreds of products and obtained more than 30 patents. Our battery charger and usb charger factory is equipped with a total of 8 automatic production lines. And thanks to modern production and testing devices, our factory stable output can reach 2.4Millions units/ month.

Always attaching great importance to product quality and environmental protection, we are approved by the ISO9001 quality management system and ISO14001 environment management system. Over the years, our factory has won credibility from numerous Chinese and international customers. Our ideas are Integrity, Dedication, Practicability, innovation and to be one of the leaders in this industry. Warmly welcome you to visit us and make win-win cooperation!
