90W 24v 3a Power Adapter 24v 6a Power Adapter 12v 5a Power Adapter 48v Power Adapter

About our company:

Shenzhen Yingyuan electronics Co.,Ltd. was builde in 2006 and has passed ISO9001 : 2000international quality system certification.
We specialize in developing , producing and exporting switch-ing power supply, power adapters ,wall mounted charger andother related accessories .

The range of our products' power isfrom 5W to 6ooW, the voltage is 5~50V, the electric current is0.5A~50A.
All the products are 100%aging test,with CE. FCC,RoHS,SAA,ETL,PSE,MEPS.REACH,Medical certification andMeet DOE efficiency Level Vl.

OEM and ODM orders arewelcome.
Let real full power of "power supply"be your most trustedpartner.

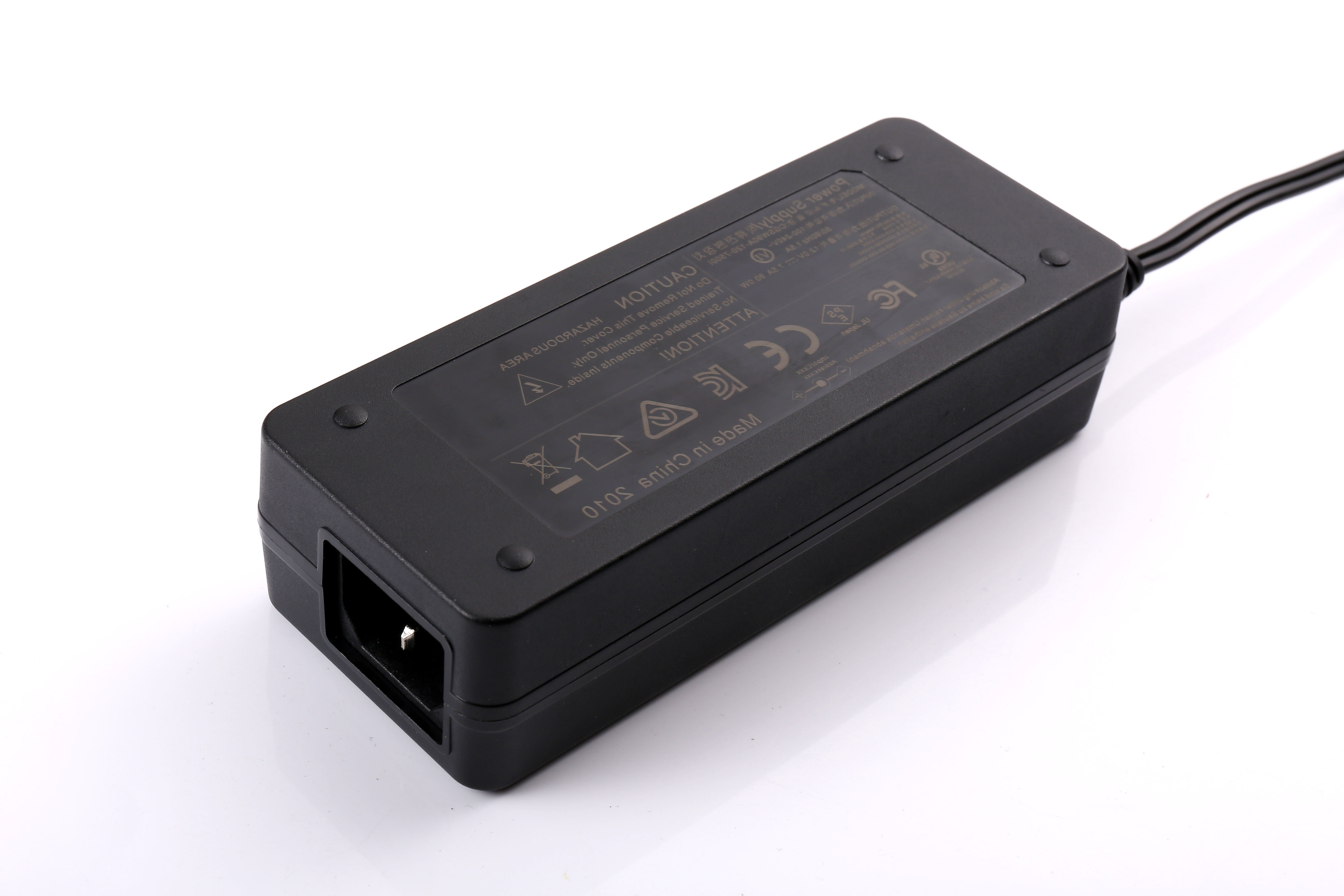

FEATURES			SAFETIES APPROVALS		PRODUCTS PICTURE
v EFFICIENCY VI v 90W WATT OUTPUT POWER v OVERCURRENT PROTECTION v SHORT CIRCUIT PROTECTION v INPUT PROTECTION v ROHS COMPLIANT			Desktop Type v UL, FCC v CB, CE, UKCA v CCC, KC, PSE v SAA v REACH, ROHS
TYPICAL MODEL LIST
I/P Voltage	Typical model		Output Voltage	Output Current	Ripple & noise		Efficiency Level
90 - 264V 47 - 63HZ	CGSW90F-120-7500		12V	7500mA	30mV		6 Level
	CGSW90F-150-6000		15V	6000mA	40mV		6 Level
	CGSW90F-240-3750		24V	3750mA	50mV		6 Level
	CGSW90F-240-4000		24V	4000mA	70mV		6 Level
	CGSW90F-480-2000		48V	2000mA	50mV		6 Level
	CGSW90F-480-1500		48V	1500mA	50mV		6 Level
INPUT SPECIFICATIONS				GENERAL SPECIFICATIONS
Input Voltage		90〜264VAC		Primary to Secondary		50MΩ MIN
Input Frequency		47〜63Hz		Efficiency		VI
Input Current		1.5A Max		Standby Power		0.5W MAX
Inrush Current		40A Max		Leakage Current		0.25mA MAX
OUTPUT SPECIFICATIONS				ENVIRONMENTAL SPECIFICATIONS
Output Voltage Range		12.0V-48.0V		Operating Temperature		10°C~40°C
Output Current Range		100mA-7500mA		Cooling		Convection
Output Power Range		96.0W Max		Temperature Coefficient		0.05%/°C
Short Circuit Protection		Automatic Recovery		Humidity		5~95%RH(non-condensing)
Over-Current Protection		Automatic Recovery		Storage Temperature		-20°C~+80%°C
Ripple and Noise		100mVp-p max		PHYSICAL SPECIFICATIONS
Turn On Time		20-30mS normal		Physical Specifications		150.2mm *50.3mm *25.5mm
Line Regulation		1% max		SAFETIES STANDARD
Output Regulation		±5%		Safeties Standard		62368 / 60950 / 60335 / 61558 / 60065 / UL1310

AC DC Plug

Application

LOGISTICS

FAQ:

Q:Are you manufacturer?

We are specialized in the design, manufacture of 5W to 120W power supplies, vehicle power adapters, USB chargers, and 100W to 3600W battery chargers. Almost all our products are with safety approvals such as UL, CE, GS, RCM, PSE, KC, KCC, BS, CCC, and so on. Our customers are from all over the world including the United States, Canada, Europe, Japan, Korea, and so on.

Our R& D department has more than 30 professional technicians and engineers. During these years, we have developed hundreds of products and obtained more than 30 patents. Our battery charger and usb charger factory is equipped with a total of 8 automatic production lines. And thanks to modern production and testing devices, our factory stable output can reach 2.4Millions units/ month.

Always attaching great importance to product quality and environmental protection, we are approved by the ISO9001 quality management system and ISO14001 environment management system. Over the years, our factory has won credibility from numerous Chinese and international customers. Our ideas are Integrity, Dedication, Practicability, innovation and to be one of the leaders in this industry. Warmly welcome you to visit us and make win-win cooperation!
