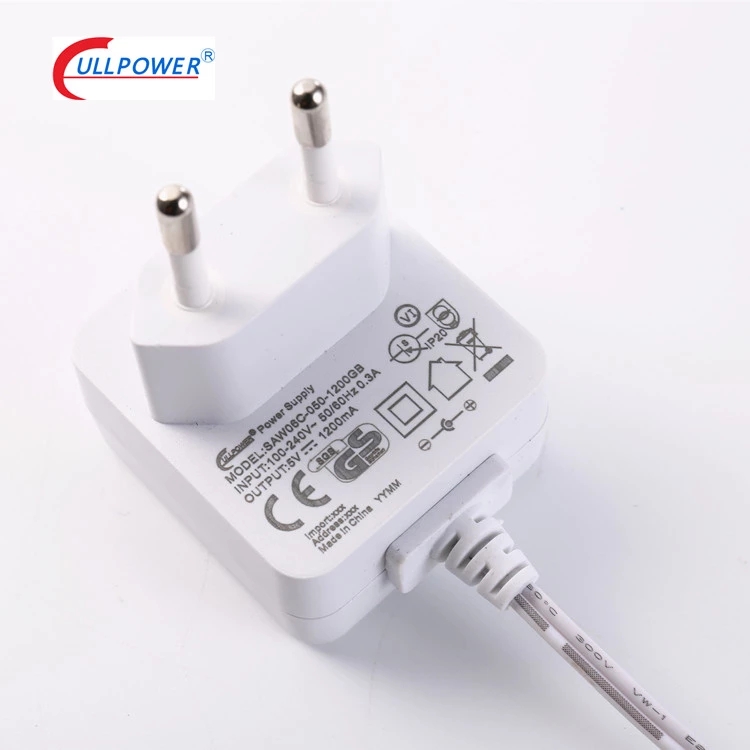

6W Series Wall-mount Power Adapter

Features:

* Latest design, beautiful appearance, fashionable and lightness, practicality convenient USB charger.
* Environmental protection flame retardant material, excellent insulating capability, strong wear resistance.
* Built-in IC chip and safety fuse, over-current, over-voltage and short-circuit protection, etc.
* Using for mobile phones.

FEATURES			SAFETIES APPROVALS		PRODUCTS PICTURE
v EFFICIENCY VI v 1-6 WATT OUTPUT POWER v OVERCURRENT PROTECTION v SHORT CIRCUIT PROTECTION v INPUT PROTECTION v ROHS COMPLIANT			US Type v UL v FCC v ROHS v REACH
TYPICAL MODEL LIST
I/P Voltage	Typical model		Output Voltage	Output Current	Ripple & noise		Efficiency Level
90 - 264V 47 - 63HZ	SAW06A3-050-0500		5V	500mA	30mV		6 VI
	SAW06A3-050-1000		5V	1000mA	40mV		6 VI
	SAW06A3-050-1200		5V	1200mA	50mV		6 VI
	SAW06A3-090-0500		9V	670mA	70mV		6 VI
	SAW06A3-120-0500		12V	500mA	50mV		6 VI
	SAW06A3-240-0250		24V	250mA	50mV		6 VI
INPUT SPECIFICATIONS				GENERAL SPECIFICATIONS
Input Voltage		90〜264VAC		Primary to Secondary		50MΩ MIN
Input Frequency		47〜63Hz		Efficiency		VI
Input Current		0.3A Max		Standby Power		0.1W MAX
Inrush Current		40A Max		Leakage Current		0.25mA MAX
OUTPUT SPECIFICATIONS				ENVIRONMENTAL SPECIFICATIONS
Output Voltage Range		5V-24V		Operating Temperature		10°C~40°C
Output Current Range		100mA-1200mA		Cooling		Convection
Output Power Range		6.00W Max		Temperature Coefficient		0.05%/°C
Short Circuit Protection		Automatic Recovery		Humidity		5~95%RH(non-condensing)
Over-Current Protection		Automatic Recovery		Storage Temperature		-20°C~+80%°C
Ripple and Noise		100mVp-p max		PHYSICAL SPECIFICATIONS
Turn On Time		20-30mS normal		Physical Specifications		43.4mm *40.4mm *22.4mm
Line Regulation		1% max		SAFETIES STANDARD
Output Regulation		±5%		Safeties Standard		62368 / 60950/ 60335/ 61558/ 60065

FQA:

Q1. Payment Terms
1. We can accept T/ T , Western Union, Paypal, Alibaba Trade Insurance and RMB Money order, you can choose by yourself. If you want other payment terms,please kindly let us know.
2. OEM 30% T/T deposit, 70% balance before shipment.
Q2. Shipping
1. Sample order will be set out around 2-3 days
2. Bulk order will be depend on the order quantity, usually 15-20 working days.
Q3. Return and Warranty Policy
1. All the goods are inspected according to FQA level before shipping.
2. All the goods are 3 year warranty.
Q4. Feedback
1. Customers early confirmation will be highly appreciated .
2. Your feedback is very important to our business's development, we sincerely invite you leave feedback to us in you are satisfied with our product and service.

We are specialized in the design, manufacture of 5W to 120W power supplies, vehicle power adapters, USB chargers, and 100W to 3600W battery chargers. Almost all our products are with safety approvals such as UL, CE, GS, RCM, PSE, KC, KCC, BS, CCC, and so on. Our customers are from all over the world including the United States, Canada, Europe, Japan, Korea, and so on.

Our R& D department has more than 30 professional technicians and engineers. During these years, we have developed hundreds of products and obtained more than 30 patents. Our battery charger and usb charger factory is equipped with a total of 8 automatic production lines. And thanks to modern production and testing devices, our factory stable output can reach 2.4Millions units/ month.

Always attaching great importance to product quality and environmental protection, we are approved by the ISO9001 quality management system and ISO14001 environment management system. Over the years, our factory has won credibility from numerous Chinese and international customers. Our ideas are Integrity, Dedication, Practicability, innovation and to be one of the leaders in this industry. Warmly welcome you to visit us and make win-win cooperation!
