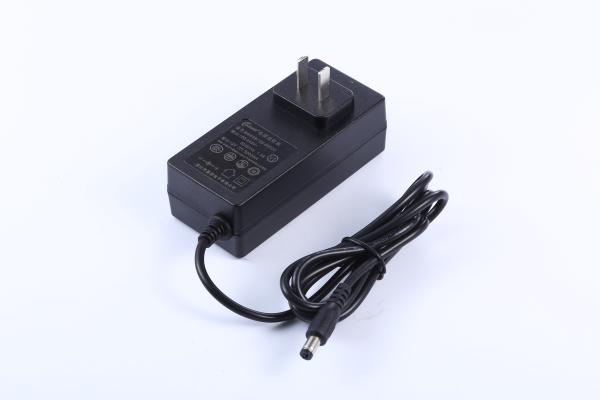

5V5A 9V3A 12V3A 18V2A 24V1.5A Wall-Mount Power Adapter AU EU US UK KR JP CN Plugs 2.1*5.5 2.5*5.5 Connector

FEATURES			SAFETIES APPROVALS		PRODUCTS PICTURE
v EFFICIENCY VI v 30-36 WATT OUTPUT POWER v OVERCURRENT PROTECTION v SHORT CIRCUIT PROTECTION v INPUT PROTECTION v ROHS COMPLIANT			Desktop Type v UL, FCC v CB, CE, UKCA v CCC, KC, PSE v SAA v REACH, ROHS
TYPICAL MODEL LIST
I/P Voltage	Typical model		Output Voltage	Output Current	Ripple & noise		Efficiency Level
90 - 264V 47 - 63HZ	CGSW36-050-5000		5V	5000mA	90mV		L 6.00 VI
	CGSW36-090-3000		9V	3000mA	90mV		L 6.00 VI
	CGSW36-120-3000		12V	3000mA	120mV		L 6.00 VI
	CGSW36-150-2400		15V	2400mA	120mV		L 6.00 VI
	CGSW36-180-2000		18V	2000mA	150mV		L 6.00 VI
	CGSW36-240-1500		24V	1500mA	150mV		L 6.00 VI
INPUT SPECIFICATIONS				GENERAL SPECIFICATIONS
Input Voltage		90〜264VAC		Primary to Secondary		50MΩ MIN
Input Frequency		47〜63Hz		Efficiency		VI
Input Current		1.2A Max		Standby Power		0.30W MAX
Inrush Current		40.0A Max		Leakage Current		0.25mA MAX
OUTPUT SPECIFICATIONS				ENVIRONMENTAL SPECIFICATIONS
Output Voltage Range		5V-36.0V		Operating Temperature		10°C~40°C
Output Current Range		100mA-5000mA		Cooling		Convection
Output Power Range		36.0W Max		Temperature Coefficient		0.05%/°C
Short Circuit Protection		Automatic Recovery		Humidity		5~95%RH(non-condensing)
Over-Current Protection		Automatic Recovery		Storage Temperature		-20°C~+80%°C
Ripple and Noise		100mVp-p max		PHYSICAL SPECIFICATIONS
Turn On Time		20-30mS normal		Physical Specifications		97.6mm *45.6mm *32.6mm
Line Regulation		1% max		SAFETIES STANDARD
Output Regulation		±5%		Safeties Standard		62368 / 60950/ 60335/ 61558/ 60065

Logistic shipping

Why choose us?

1.High quality: Products all with high quality material. And factory established a strict quality control system,assigning specific persons in charge of each part of production,from raw material purchase to assembly.

2. Professional R&D: Employed engineers with over 10 years working experiences in charging industry. Released with many innovation and

popular products. OEM and ODM are warmly welcomed.

3. Fast dispatch: AlI products with short time delivery

4. Export Capability: Over 10years export experiences to offer with professional export advices.

Over the past 12 years of production,management and exploration, E-STRONG set up its own quality management system. At the same time, E STRONG keeps independent innovation all the time and aims the products to the diversified development to provide customers with competitive, reliable products, solutions and services.

We are specialized in the design, manufacture of 5W to 120W power supplies, vehicle power adapters, USB chargers, and 100W to 3600W battery chargers. Almost all our products are with safety approvals such as UL, CE, GS, RCM, PSE, KC, KCC, BS, CCC, and so on. Our customers are from all over the world including the United States, Canada, Europe, Japan, Korea, and so on.

Our R& D department has more than 30 professional technicians and engineers. During these years, we have developed hundreds of products and obtained more than 30 patents. Our battery charger and usb charger factory is equipped with a total of 8 automatic production lines. And thanks to modern production and testing devices, our factory stable output can reach 2.4Millions units/ month.

Always attaching great importance to product quality and environmental protection, we are approved by the ISO9001 quality management system and ISO14001 environment management system. Over the years, our factory has won credibility from numerous Chinese and international customers. Our ideas are Integrity, Dedication, Practicability, innovation and to be one of the leaders in this industry. Warmly welcome you to visit us and make win-win cooperation!
