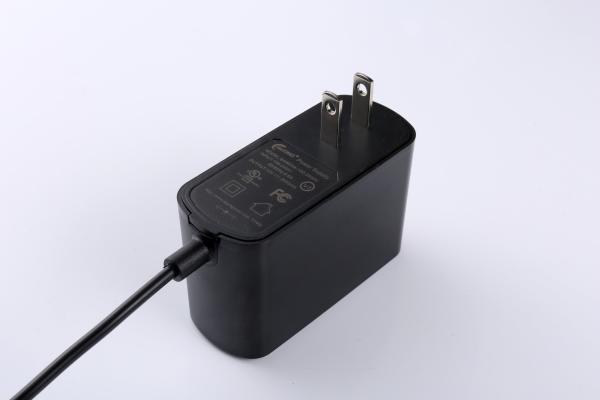

30W Series Wall-mount Power Adapter

Advantage:

A. Original Fullpower Brand new Products for our order

B. Sample order available for OEM

C. Customized logo for Sample without extra cost

D. Free Design service for Packaging if request

E. Professional Manufacture and shipping experience

F. Fast Shipping

FEATURES			SAFETIES APPROVALS		PRODUCTS PICTURE
v EFFICIENCY VI v 12-30 WATT OUTPUT POWER v OVERCURRENT PROTECTION v SHORT CIRCUIT PROTECTION v INPUT PROTECTION v ROHS COMPLIANT			US Type v UL v CB v FCC v ROHS v REACH
TYPICAL MODEL LIST
I/P Voltage	Typical model		Output Voltage	Output Current	Ripple & noise		Efficiency
90 - 264V 47 - 63HZ	SAW30F1-090-2000		9V	2000mA	90mV		6
	SAW30F1-090-3000		9V	3000mA	90mV		6
	SAW30F1-120-2000		12V	2000mA	120mV		6
	SAW30F1-120-2500		12V	2500mA	120mV		6
	SAW30F1-180-1000		18V	1000mA	150mV		6
	SAW30F1-240-1000		24V	1000mA	150mV		6
INPUT SPECIFICATIONS				GENERAL SPECIFICATIONS
Input Voltage		90〜264VAC		Primary to Secondary		50MΩ MIN
Input Frequency		47〜63Hz		Efficiency		VI
Input Current		0.8A Max		Standby Power		0.3W MAX
Inrush Current		40A Max		Leakage Current		0.25mA MAX
OUTPUT SPECIFICATIONS				ENVIRONMENTAL SPECIFICATIONS
Output Voltage Range		9V-36V		Operating Temperature		10°C~40°C
Output Current Range		100mA-3000mA		Cooling		Convection
Output Power Range		30W Max		Temperature Coefficient		0.05%/°C
Short Circuit Protection		Automatic Recovery		Humidity		5~95%RH(non-condensing)
Over-Current Protection		Automatic Recovery		Storage Temperature		-20°C~+80%°C
Ripple and Noise		100mVp-p max		PHYSICAL SPECIFICATIONS
Turn On Time		20-30mS normal		Physical Specifications		71.1mm *43.1mm *29.1mm
Line Regulation		1% max		SAFETIES STANDARD
Output Regulation		±5%		Safeties Standard		62368 / 60950/ 60335/ 61558/ 60065

SHIPPING WAY

FQA:

1. The products you sell in your store are genuine and original Yingyuan?

Yes, what we offered are 100% official yingyuan products.

2. Can you ship the order with my own forwarder?

Yes, we can ship the order by your own forwarder or recommended by our side.

3. Could you offer dropshopping service to our customer?

Yes, we can offer dropshopping service, no matter wholesale or retail order.

4. I sell in Amazon,could you ship to FBA warehouse?

Yes, if you are allowed to sell Joyroom products or oem products in Amazon, we can offer FBA service to you.

5. Do you have any certification of your products?

CE,ROHS are available.Other certifications could be provide as customer required.

6. Do you have any guarantee for your products?

Any product issues during the one-year warranty period, please feel free to contact us for satisfied solution.

We are specialized in the design, manufacture of 5W to 120W power supplies, vehicle power adapters, USB chargers, and 100W to 3600W battery chargers. Almost all our products are with safety approvals such as UL, CE, GS, RCM, PSE, KC, KCC, BS, CCC, and so on. Our customers are from all over the world including the United States, Canada, Europe, Japan, Korea, and so on.

Our R& D department has more than 30 professional technicians and engineers. During these years, we have developed hundreds of products and obtained more than 30 patents. Our battery charger and usb charger factory is equipped with a total of 8 automatic production lines. And thanks to modern production and testing devices, our factory stable output can reach 2.4Millions units/ month.

Always attaching great importance to product quality and environmental protection, we are approved by the ISO9001 quality management system and ISO14001 environment management system. Over the years, our factory has won credibility from numerous Chinese and international customers. Our ideas are Integrity, Dedication, Practicability, innovation and to be one of the leaders in this industry. Warmly welcome you to visit us and make win-win cooperation!
