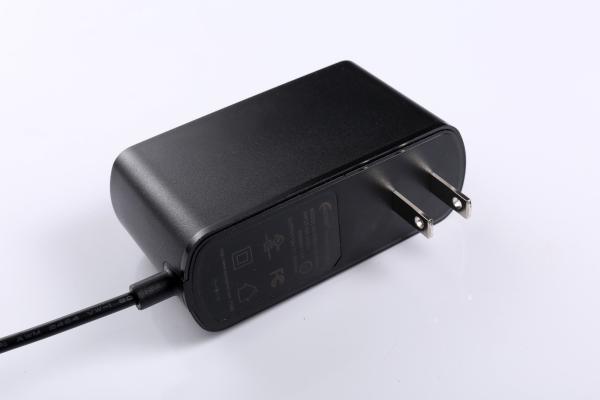

5V4A 5V5A 5V6A 6V5A 9V4A 12V3A 18V2A 24V1.5A Wall-Mount Power Adapter 2.1*5.5 2.5*5.5 Connector

About Yingyuan:

Shenzhen Yingyuan Electronics Co. Ltd ,established in the year of 2006 , specalize in designing, manufacturing wall charger, car charger, power strip and a series of high-performance electronic transformers, inductors . switching power supplies and adapters. Factory is located in Shenzhen City, Guangdong Province, we have branch offices in Shenzhen and Huizhou

FEATURES			SAFETIES APPROVALS		PRODUCTS PICTURE
v EFFICIENCY VI v 30-36 WATT OUTPUT POWER v OVERCURRENT PROTECTION v SHORT CIRCUIT PROTECTION v INPUT PROTECTION v ROHS COMPLIANT			US Type v UL v CB v FCC v ROHS v REACH
TYPICAL MODEL LIST
I/P Voltage	Typical model		Output Voltage	Output Current	Ripple & noise		Efficiency Level
90 - 264V 47 - 63HZ	SAW36C3-050-4000		5V	4000mA	90mV		VI Level
	SAW36C3-050-5000		5V	5000mA	90mV		VI Level
	SAW36C3-050-6000		5V	6000mA	120mV		VI Level
	SAW36C3-180-2000		18V	2000mA	120mV		VI Level
	SAW36C3-120-3000		12V	3000mA	150mV		VI Level
	SAW36C3-240-1500		24V	1500mA	150mV		VI Level
INPUT SPECIFICATIONS				GENERAL SPECIFICATIONS
Input Voltage		90〜264VAC		Primary to Secondary		50MΩ MIN
Input Frequency		47〜63Hz		Efficiency		VI
Input Current		1.3A Max		Standby Power		0.3W MAX
Inrush Current		40A Max		Leakage Current		0.25mA MAX
OUTPUT SPECIFICATIONS				ENVIRONMENTAL SPECIFICATIONS
Output Voltage Range		5V-48V		Operating Temperature		10°C~40°C
Output Current Range		100mA-6000mA		Cooling		Convection
Output Power Range		48.0W Max		Temperature Coefficient		0.05%/°C
Short Circuit Protection		Automatic Recovery		Humidity		5~95%RH(non-condensing)
Over-Current Protection		Automatic Recovery		Storage Temperature		-20°C~+80%°C
Ripple and Noise		100mVp-p max		PHYSICAL SPECIFICATIONS
Turn On Time		20-30mS normal		Physical Specifications		97.2mm *50.2mm *32.2mm
Line Regulation		1% max		SAFETIES STANDARD
Output Regulation		±5%		Safeties Standard		62368 / 60950/ 60335/ 61558/ 60065

FQA:

1.Q:Are you a factory or trading company?
A:We are professional factory and manufacturer,we have our own mould, R&D,engineer, production, and QC department. Our products have very competitive advantage in price, quality,and lead time.

2.Could you print my logo on products?
B:OEM/ODM service is accepted, we can print your logo on both adapter and package for free.

3.How long would i get the sample?
C:Normally Delivery date 5 to 7 days upon paymentDepend on models.

4. What is your terms of delivery?
D: EXW or FOB Shenzhen/Ningbo/shanghai.You can choose different shipment ways at your request.

5.What certifications do you have?
A: We have approved ISO9001,CE ROHS SGS etc certification.

We are specialized in the design, manufacture of 5W to 120W power supplies, vehicle power adapters, USB chargers, and 100W to 3600W battery chargers. Almost all our products are with safety approvals such as UL, CE, GS, RCM, PSE, KC, KCC, BS, CCC, and so on. Our customers are from all over the world including the United States, Canada, Europe, Japan, Korea, and so on.

Our R& D department has more than 30 professional technicians and engineers. During these years, we have developed hundreds of products and obtained more than 30 patents. Our battery charger and usb charger factory is equipped with a total of 8 automatic production lines. And thanks to modern production and testing devices, our factory stable output can reach 2.4Millions units/ month.

Always attaching great importance to product quality and environmental protection, we are approved by the ISO9001 quality management system and ISO14001 environment management system. Over the years, our factory has won credibility from numerous Chinese and international customers. Our ideas are Integrity, Dedication, Practicability, innovation and to be one of the leaders in this industry. Warmly welcome you to visit us and make win-win cooperation!
