30W 10 Volt AC DC 9 Volt Adapter Doe Vi Level 12V 800ma Power Adapter

Shenzhen Ying Yuan Electronics Co., Ltd.
Contact Now
    Buy cheap 30W 10 Volt AC DC 9 Volt Adapter Doe Vi Level 12V 800ma Power Adapter from wholesalers

    Buy cheap 30W 10 Volt AC DC 9 Volt Adapter Doe Vi Level 12V 800ma Power Adapter from wholesalers
    • Buy cheap 30W 10 Volt AC DC 9 Volt Adapter Doe Vi Level 12V 800ma Power Adapter from wholesalers
    • Buy cheap 30W 10 Volt AC DC 9 Volt Adapter Doe Vi Level 12V 800ma Power Adapter from wholesalers
    • Buy cheap 30W 10 Volt AC DC 9 Volt Adapter Doe Vi Level 12V 800ma Power Adapter from wholesalers

    30W 10 Volt AC DC 9 Volt Adapter Doe Vi Level 12V 800ma Power Adapter

    Ask Lasest Price
    Brand Name : Fullpower
    Model Number : 19020
    Certification : FCC,UL,CE,UKCA,SAA,KC,PSE,CCC,etc
    Payment Terms : T/T, Western Union
    Supply Ability : 100000PCS/Day
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    30W 10 Volt AC DC 9 Volt Adapter Doe Vi Level 12V 800ma Power Adapter

    30W 10 Volt Dc Power Adapter Ac Dc 9 Volt Adapter Ac Dc Adapter 12v 800ma Doe Vi Level


    About Yingyuan

    Shenzhen Yingyuan Electronics Technology Co., Ltd. Our company was founded in 2006 in Shenzhen, We are one of the leading laptop

    component distributors in China and have many years of experience in the laptop component ,our products has won wide popularity in

    many parts of the world.such as India,Iran,Spain,France,Saudi Arabia ,Malaysia and etc. We specialized in the export of laptop adapter,

    laptop motherboard,Laptop LCD,VGA board, keyboard,battery,BGA Chips and so on.we also provide laptop repair service online. There

    are over ten famous brand products and keeps 10,000 pcs in stock.Each order tested ok before


    Data-sheet

    FEATURESSAFETIES APPROVALSPRODUCTS PICTURE

    v EFFICIENCY VI

    v 12-30 WATT OUTPUT POWER

    v AU US UK EU CN JP KR Plugs

    v OVERCURRENT PROTECTION

    v SHORT CIRCUIT PROTECTION

    v INPUT PROTECTION

    v ROHS COMPLIANT

    Multi-blade Type


    v UL,FCC

    v CB,CE,UKCA

    v SAA,PSE,CCC,KC,BIS,BSMI

    v REACH, ROHS

    TYPICAL MODEL LIST
    I/P VoltageTypical modelOutput VoltageOutput CurrentRipple & noiseEfficiency

    90 - 264V

    47 - 63HZ

    ICP30-090-20009V2000mA90mVLevel 6 VI
    ICP30-090-30009V3000mA90mVLevel 6 VI
    ICP30-120-200012V2000mA120mVLevel 6 VI
    ICP30-120-250012V2500mA120mVLevel 6 VI
    ICP30-180-100018V1000mA150mVLevel 6 VI
    ICP30-240-100024V1000mA150mVLevel 6 VI
    INPUT SPECIFICATIONSGENERAL SPECIFICATIONS
    Input Voltage90〜264VACPrimary to Secondary50MΩ MIN
    Input Frequency47〜63HzEfficiencyVI
    Input Current0.8A MaxStandby Power0.2W MAX
    Inrush Current40A MaxLeakage Current0.25mA MAX
    OUTPUT SPECIFICATIONSENVIRONMENTAL SPECIFICATIONS
    Output Voltage Range5.0V-48.0VOperating Temperature10°C~40°C
    Output Current Range100mA-3500mACoolingConvection
    Output Power Range30.0W Max PowerTemperature Coefficient0.05%/°C
    Short Circuit ProtectionAutomatic RecoveryHumidity5~95%RH(non-condensing)
    Over-Current ProtectionAutomatic RecoveryStorage Temperature-20°C~+80%°C
    Ripple and Noise100mVp-p maxPHYSICAL SPECIFICATIONS
    Turn On Time20-30mS normalPhysical Specifications71.4mm *43.4mm *29.4mm
    Line Regulation1% maxSAFETIES STANDARD
    Output Regulation±5%Safeties Standard62368 / 60950/ 60335/ 61558/ 60065 / UL1310

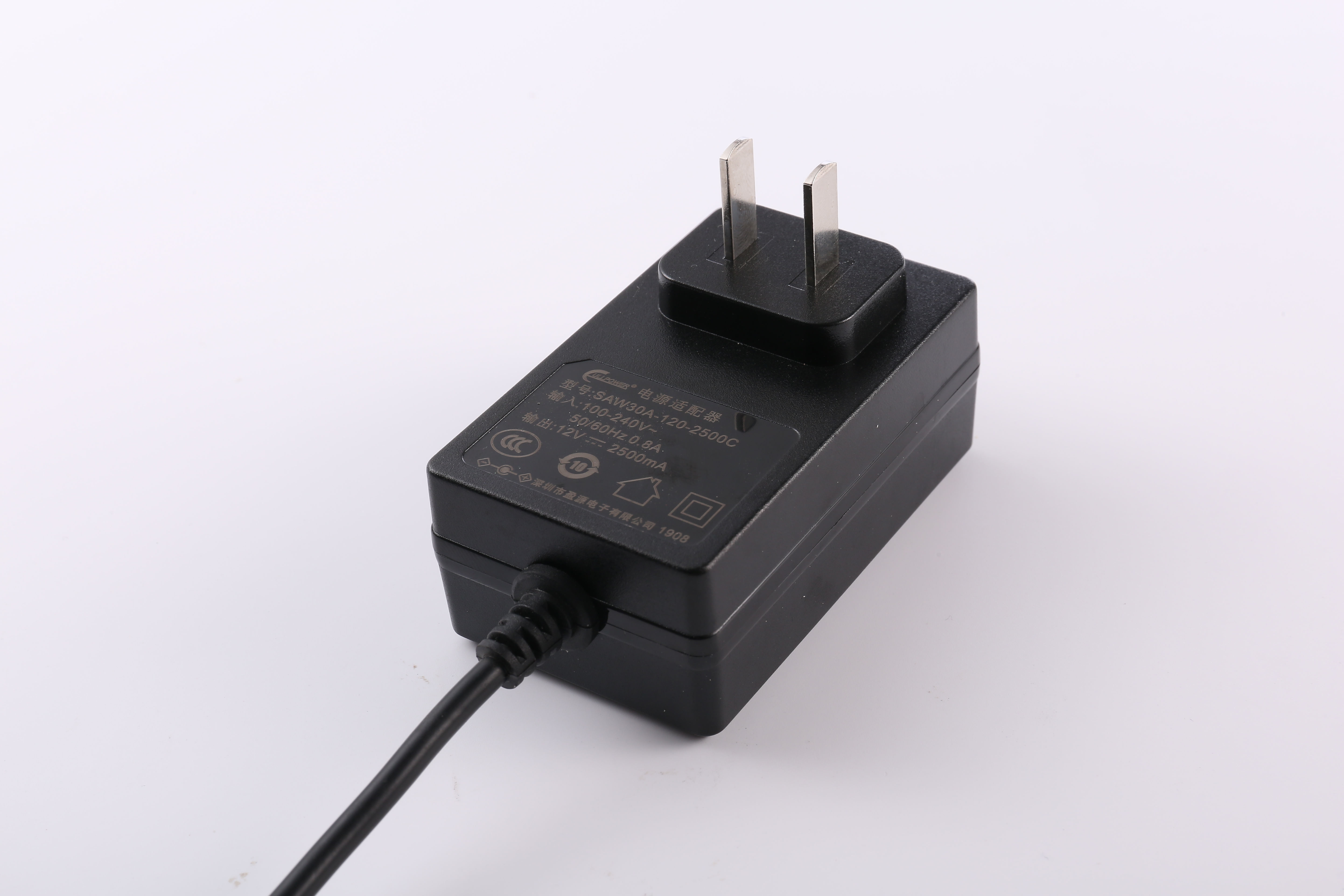

    Photo of product


    Application

    Packing


    FQA:

    Q1: What is your MOQ?
    A: 1K. For first trial or test order, we could accept 501pcs as a support.

    Q2: How about your lead time?
    A: 5-7 days for samples. For first new order, lead time 22-25 days; 20-22 days for repeat order. No stock available no matter for samples or mass order, to ensure the quality.

    Q3: Can you accept customer Logo?
    A : Sure! If you have no request on this, we do our own logo SIMSUKIAN on the adapters.

    Q4: What is your package for the goods?
    A: If no additional request, we have our standard package, packed with PE or CPE bag then into cartons.

    Q5: How long is your burn-in time?
    A: 2-4 hours aging for all the products before delivery.

    Q6: What is your defective rate and warranty policy?
    A: 1-3‰, two years warranty, free replacement in next new order to cover your loss.

    Q7: Can you also provide AC cable?
    A: Sorry, as we are not professional in AC cable field, we advise you buy it directly from a profeesional manufacturer.
