5V2A 5V2.5A 12V1A 12V1.25A Wall mount Power Adapter AU EU US UK Plugs 2.1*5.5 2.5*5.5 DC Plug UL CE

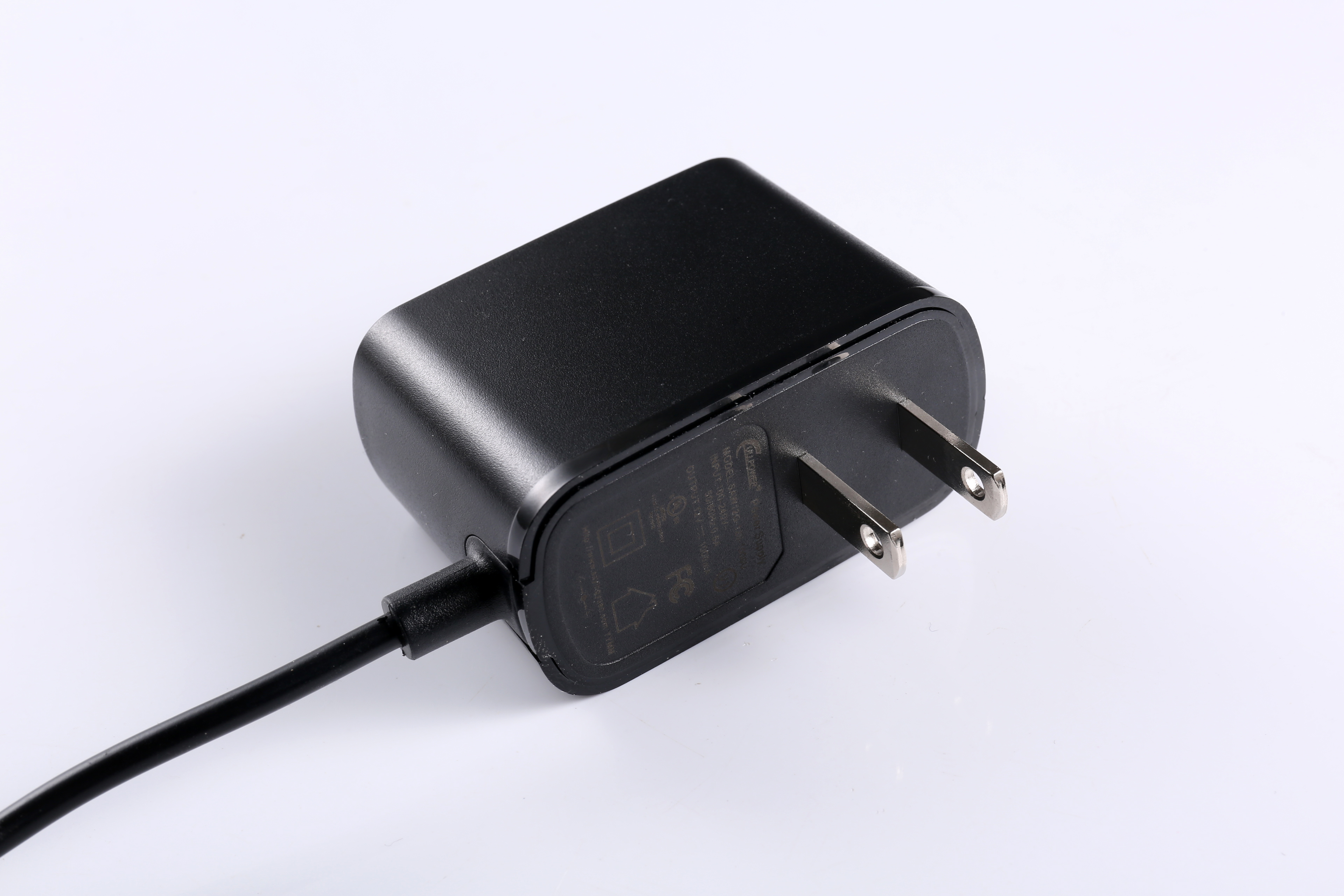

FEATURES			SAFETIES APPROVALS		PRODUCTS PICTURE
v EFFICIENCY VI v 12-15 WATT OUTPUT POWER v OVERCURRENT PROTECTION v SHORT CIRCUIT PROTECTION v INPUT PROTECTION v ROHS COMPLIANT			US Type v UL v CB v FCC v ROHS v REACH
TYPICAL MODEL LIST
I/P Voltage	Typical model		Output Voltage	Output Current	Ripple & noise		Efficiency
90 - 264V 47 - 63HZ	SAW15-050-2000		5V	2000mA	60mV		VI
	SAW15-050-2500		5V	2500mA	60mV		VI
	SAW15-120-1000		12V	1000mA	60mV		VI
	SAW15-120-1250		12V	1250mA	60mV		VI
	SAW15-150-1000		15V	1000mA	60mV		VI
	SAW15-240-1600		24V	1600mA	60mV		VI
INPUT SPECIFICATIONS				GENERAL SPECIFICATIONS
Input Voltage		90〜264VAC		Primary to Secondary		50MΩ MIN
Input Frequency		47〜63Hz		Efficiency		VI
Input Current		1.2A Max		Standby Power		0.1W MAX
Inrush Current		40A Max		Leakage Current		0.25mA MAX
OUTPUT SPECIFICATIONS				ENVIRONMENTAL SPECIFICATIONS
Output Voltage Range		3.60V-36.00V		Operating Temperature		10°C~40°C
Output Current Range		100mA-2500mA		Cooling		Convection
Output Power Range		15W Max		Temperature Coefficient		0.05%/°C
Short Circuit Protection		Automatic Recovery		Humidity		5~95%RH(non-condensing)
Over-Current Protection		Automatic Recovery		Storage Temperature		-20°C~+80%°C
Ripple and Noise		100mVp-p max		PHYSICAL SPECIFICATIONS
Turn On Time		20-30mS normal		Physical Specifications		~mm *~mm *~mm
Line Regulation		1% max		SAFETIES STANDARD
Output Regulation		±5%		Safeties Standard		62368 / 60950/ 60335/ 61558/ 60065

About packing delivery:

1. We can ship to Worldwide except the listed exclusions countries .

2. The item will be sent to your address listed in the PayPal.the shipping address as according to your paypal address, Make sure
your shipping address is right ,We don't accept the worry shipping address for our item is free ship.

3. Usually the delivery time is 5-16 business days (USA. AU. CA ).8-20 business days( European, not UK).To other places worldwide
maybe cost more than 20 business days. (Except the Standard Int'l Shipping),Since the delivery time can vary from country to
country, if you would like an update on the shipping status of your item(s), please email us before ordering and we will reply you
within 24 hours.days to arrive South America .

4. Any import tax charge or fee at destination country is buyer's responsibility, pls note it. Also the buyer need to pay remote
fees if the deliver address is remote area in DHL/UPS/TNT or Fedex's (express shipping) systerm.

5. You will be notified once the shipment has been made.The packages are safe with signature-required. if None sign for the
package, it will be return ,please pick it up in your local post office. .

6. We offer shipping discount for combined shipping.Please contact with us.
Sorry for local pick up is not available.

We are specialized in the design, manufacture of 5W to 120W power supplies, vehicle power adapters, USB chargers, and 100W to 3600W battery chargers. Almost all our products are with safety approvals such as UL, CE, GS, RCM, PSE, KC, KCC, BS, CCC, and so on. Our customers are from all over the world including the United States, Canada, Europe, Japan, Korea, and so on.

Our R& D department has more than 30 professional technicians and engineers. During these years, we have developed hundreds of products and obtained more than 30 patents. Our battery charger and usb charger factory is equipped with a total of 8 automatic production lines. And thanks to modern production and testing devices, our factory stable output can reach 2.4Millions units/ month.

Always attaching great importance to product quality and environmental protection, we are approved by the ISO9001 quality management system and ISO14001 environment management system. Over the years, our factory has won credibility from numerous Chinese and international customers. Our ideas are Integrity, Dedication, Practicability, innovation and to be one of the leaders in this industry. Warmly welcome you to visit us and make win-win cooperation!
