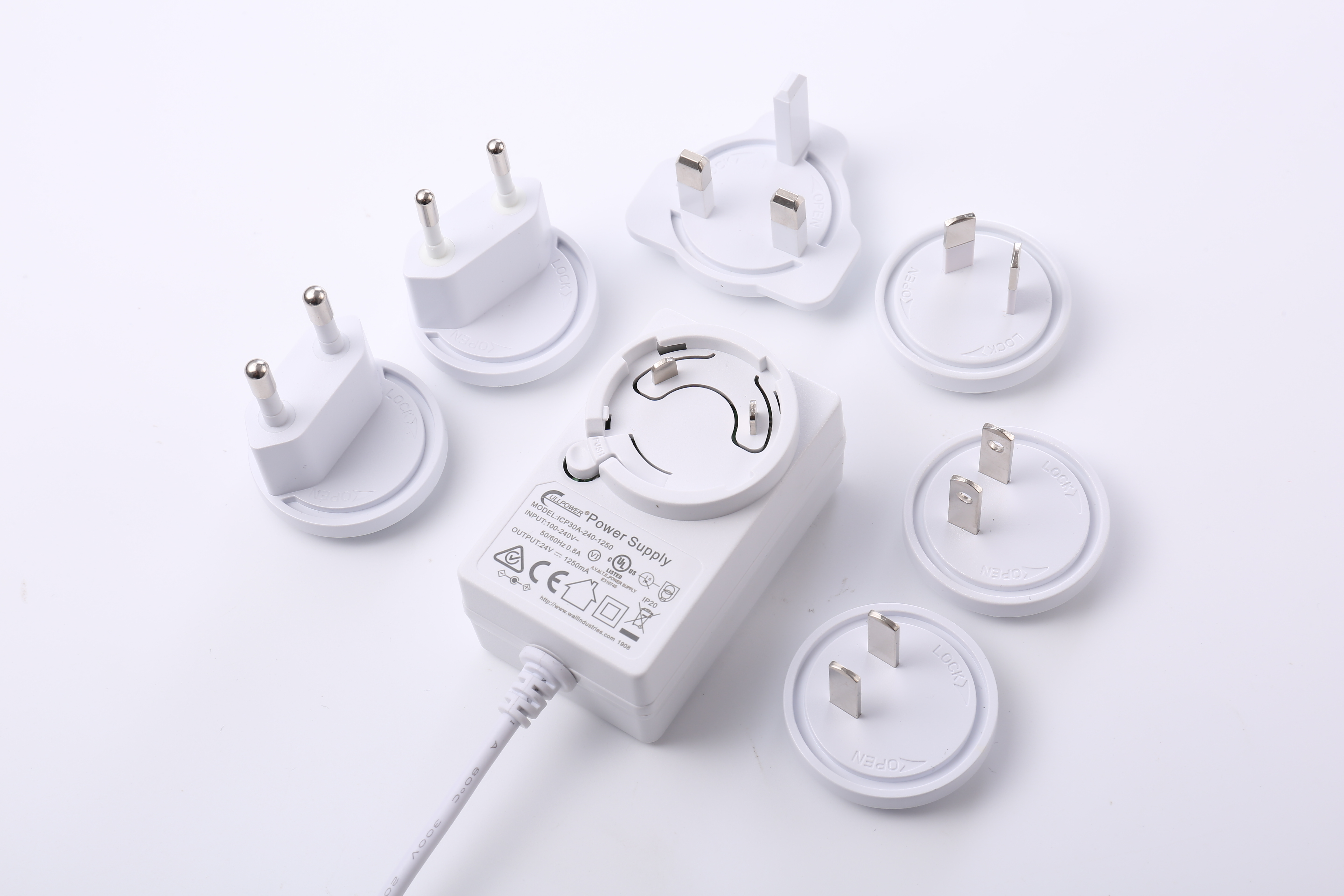

30W 5V3A 12V2.5A 12V2A 24V1A Interchangeable Plug

Why choose us ?

1>Reasonable price ! High Quality! Kindly Service!

2>Flexible payment accept:T/T, Western uion , Paypal,Alibaba Assurance

3>Different kinds of shipping Mothod, by air , by boat!

FEATURES			SAFETIES APPROVALS		PRODUCTS PICTURE
v EFFICIENCY VI v 12-30 WATT OUTPUT POWER v AU US UK EU CN JP KR Plugs v OVERCURRENT PROTECTION v SHORT CIRCUIT PROTECTION v INPUT PROTECTION v ROHS COMPLIANT			Multi-blade Type v UL,FCC v CB,CE,UKCA v SAA,PSE,CCC,KC,BIS,BSMI v REACH, ROHS
TYPICAL MODEL LIST
I/P Voltage	Typical model		Output Voltage	Output Current	Ripple & noise		Efficiency
90 - 264V 47 - 63HZ	ICP30-090-2000		9V	2000mA	90mV		Level 6 VI
	ICP30-090-3000		9V	3000mA	90mV		Level 6 VI
	ICP30-120-2000		12V	2000mA	120mV		Level 6 VI
	ICP30-120-2500		12V	2500mA	120mV		Level 6 VI
	ICP30-180-1000		18V	1000mA	150mV		Level 6 VI
	ICP30-240-1000		24V	1000mA	150mV		Level 6 VI
INPUT SPECIFICATIONS				GENERAL SPECIFICATIONS
Input Voltage		90〜264VAC		Primary to Secondary		50MΩ MIN
Input Frequency		47〜63Hz		Efficiency		VI
Input Current		0.8A Max		Standby Power		0.2W MAX
Inrush Current		40A Max		Leakage Current		0.25mA MAX
OUTPUT SPECIFICATIONS				ENVIRONMENTAL SPECIFICATIONS
Output Voltage Range		5.0V-48.0V		Operating Temperature		10°C~40°C
Output Current Range		100mA-3500mA		Cooling		Convection
Output Power Range		30.0W Max Power		Temperature Coefficient		0.05%/°C
Short Circuit Protection		Automatic Recovery		Humidity		5~95%RH(non-condensing)
Over-Current Protection		Automatic Recovery		Storage Temperature		-20°C~+80%°C
Ripple and Noise		100mVp-p max		PHYSICAL SPECIFICATIONS
Turn On Time		20-30mS normal		Physical Specifications		71.4mm *43.4mm *29.4mm
Line Regulation		1% max		SAFETIES STANDARD
Output Regulation		±5%		Safeties Standard		62368 / 60950/ 60335/ 61558/ 60065 / UL1310

About us:

Yingyuan Electronics Co.,Limited an enterprise who sells charger power supply power adapter Electronics products. We are specialized in the sales of Laptop Adapter, Universal Laptop Adapter, Laptop Car Charger, Laptop Battery and Laptop charger . As we know, Health and Low Carton Electronics has been accepted by more and more people in the world. So Health and Electronics products will be focused on R&D products by our company. Since our founding, Yingyuan Electronics has been winning the trust of customers with its excellent products and services. We have our own Independent R&D department devoted in environmental protection, health and portable electronic product development. Most of our Health and Low Carbon Electronics have been passed CE UL KC FCC Certification, some are ROHS Certificated. SPECIAL Electronics applies scientific management concepts in its daily operations. Our clients enjoy professional

We are specialized in the design, manufacture of 5W to 120W power supplies, vehicle power adapters, USB chargers, and 100W to 3600W battery chargers. Almost all our products are with safety approvals such as UL, CE, GS, RCM, PSE, KC, KCC, BS, CCC, and so on. Our customers are from all over the world including the United States, Canada, Europe, Japan, Korea, and so on.

Our R& D department has more than 30 professional technicians and engineers. During these years, we have developed hundreds of products and obtained more than 30 patents. Our battery charger and usb charger factory is equipped with a total of 8 automatic production lines. And thanks to modern production and testing devices, our factory stable output can reach 2.4Millions units/ month.

Always attaching great importance to product quality and environmental protection, we are approved by the ISO9001 quality management system and ISO14001 environment management system. Over the years, our factory has won credibility from numerous Chinese and international customers. Our ideas are Integrity, Dedication, Practicability, innovation and to be one of the leaders in this industry. Warmly welcome you to visit us and make win-win cooperation!
