180W Battery Charger

• Max Output Power: 180W

• Typical output: 12V12A, 24V6A, 36V4A, 48V3A etc

• UL,FCC,CE,CB,UKCA,SAA,KC,PSE,CCC,EAC etc for different countries

• Meet the US DoE level VI, EU CoC Tier 2 efficiency standards

• Certificate standard contain IEC60950, IEC61558, IEC62368, IEC60335, IEC60065 etc

深圳市盈源电子有限公司 Shenzhen YingYuan Electronics Co., Ltd Address:The 4-7th Floor, Building 8, HongYe Industrial Park, XiXiang Town, BaoAn District, ShenZhen, China

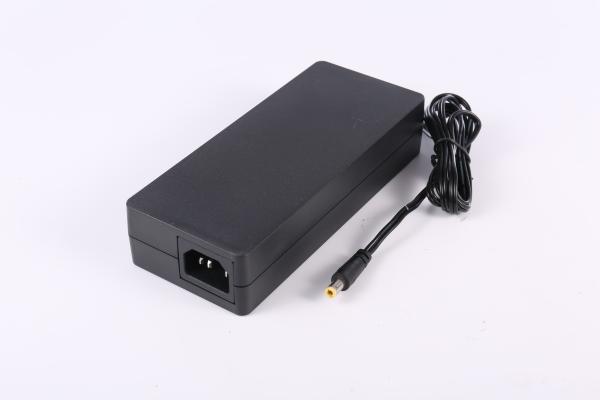

Specifications			PRODUCTS PICTURE
180W BATTERY CHAEGER l AC Input Voltage Range:AC100V- AC 240V l AC Input Frequency: 45～65HZ l AC Power Factor Correction: ≥0.98 l Output Voltage:12V～60V l Output Current:12A(Max) l Full Load Efficiency: ≥90% l Shock & Vibration: 10～50HZ 2G 10 minutes,X,Y,Z /60 minutes l Operating Temperature: -20ºC～+45ºC(-20ºF～+113ºF) l Storage Temperature: -40ºC～+85ºC(-40ºF～+185ºF) l Dimensions (mm):(L)190х(W)80х(H)42 l Net Weight: 0.54kg
TYPICAL MODEL LIST
Charger Model	Rated Input Voltage	Barrery Standard Voltage	Maximum charging Current	Maximum charging Current
AP-PN180CH01460120	100-240	12	14.6	12
AP-PN180CH02920060	100-240	24	29.2	6
AP-PN180CH04200040	100-240	36	42	4
AP-PN180CH05460030	100-240	48	54.6	3
AP-PN180CH01200120	100-240	12	14.7	12
AP-PN180CH02400060	100-240	24	29.4	6
AP-PN180CH03600040	100-240	36	42	4
AP-PN180CH04800030	100-240	48	58.8	3
SPECIFICATIONS
AC Input Voltage Range:	AC100V- AC 240V	Shock & Vibration:	10～50HZ 2G 10 minutes,X,Y,Z /60 minutes
AC Input Frequency:	45～65HZ	Operating Temperature:	-20ºC～45ºC(-20ºF～+113ºF)
AC Power Factor Correction:	≥0.98	Storage Temperature:	-40ºC～+85ºC(-40ºF～185ºF)
Output Voltage:	12V～60V	Dimensions (mm):	(L)190х(W)80х(H)42
Output Current:	12A(Max)	Net Weigh:	0.54kg
Full Load Efficiency:	≥90%	certifications	UL CE FCC RoHs
Protections	Thermal Self-Protection Charger will be stopped automatically when reaches to Maximum temperature , LED light will be red to warn it
	Short- circuit Protection When Short Circuit happened ,charger will turn off
	Reverse Connection Protection When the battery is polarity reversed ,the charger will cut off the connection between the circuit and the battery
	Battery Broken protection When some battery broke ,battery can not reach 100% full-charged ,charger will be shut down automatically
Application	Electric Bicycles/Tricycles/Scooters /Power tools and other electric-related equipment

This product can use different charging modes according to different types of battery and can trace the charging process correctly. Main application of Alrightpower 72 volt battery charger: e bike, tricycles, scooters, power tools forklift, ground washer, electric motorcycle, electric motorcycle, golf cart, sightseeing car, cleaning car, low speed car and other kinds of devices need charge the battery.
