65W Rechargeable Aa Battery Charger Torch Battery Charger For Rechargeable Batteries

FEATURES		SAFETIES APPROVALS		PRODUCTS PICTURE

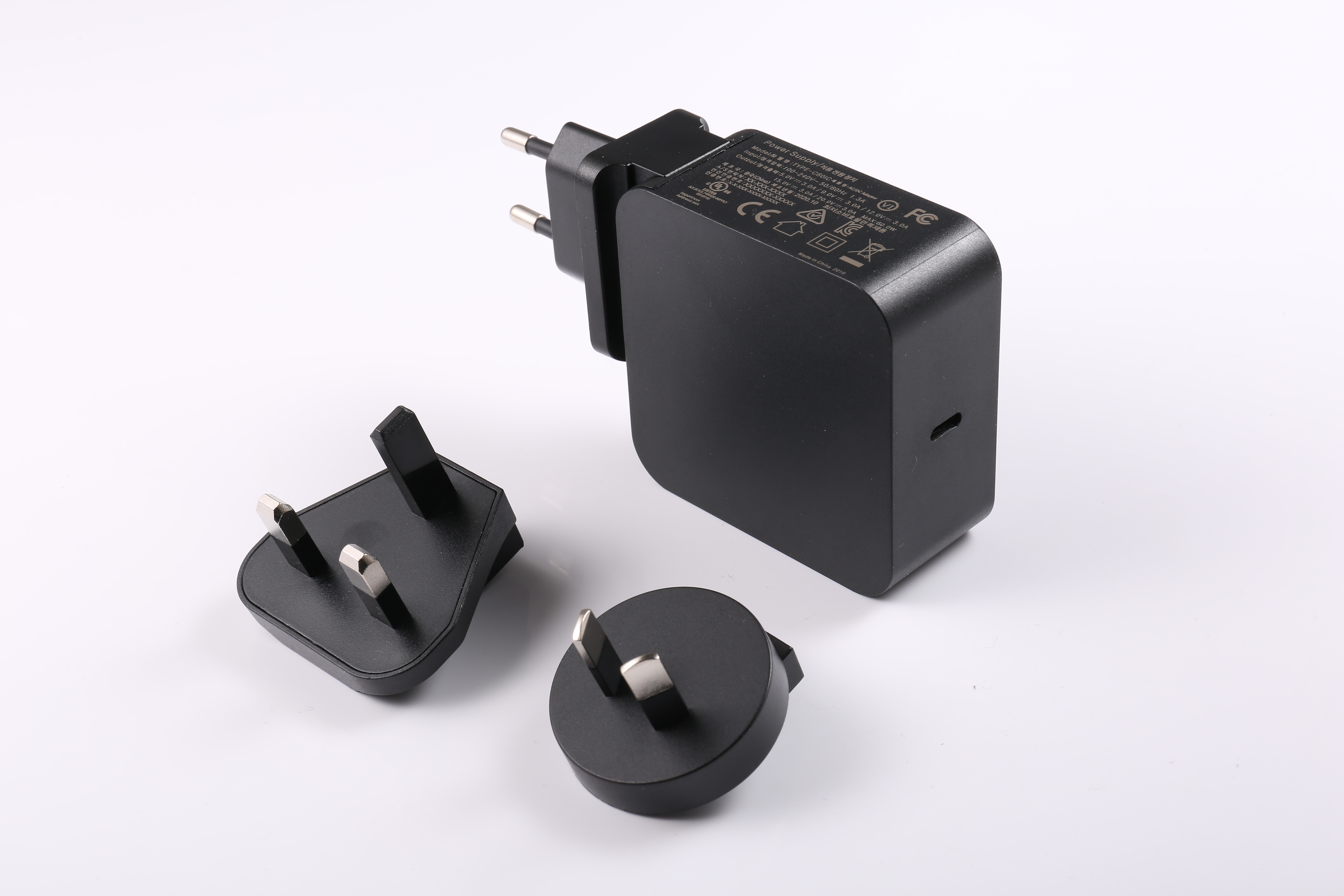

v EFFICIENCY VI v 65W PD OUTPUT POWER v OVERCURRENT PROTECTION v SHORT CIRCUIT PROTECTION v INPUT PROTECTION v Interchangeable AC plugs		Interchangeable Plug v UL,FCC v CB,CE,UKCA v SAA,PSE, CCC,KC v REACH, ROHS
TYPICAL MODEL LIST
I/P Voltage	Typical model	Output Voltage	Output Current	Ripple & noise		Efficiency
90 - 264V 47 - 63HZ	C804	5V	3000mA	30mV		VI Level
	C804	9V	3000mA	30mV		VI Level
	C804	12V	3000mA	40mV		VI Level
	C804	15V	3000mA	40mV		VI Level
	C804	20V	3250mA	50mV		VI Level
	C804	5V	3000mA	50mV		VI Level
INPUT SPECIFICATIONS			GENERAL SPECIFICATIONS
Input Voltage		90〜264VAC	Primary to Secondary		50MΩ MIN
Input Frequency		47〜63Hz	Efficiency		VI
Input Current		0.5A Max	Standby Power		0.2W MAX
Inrush Current		40A Max	Leakage Current		0.25mA MAX
OUTPUT SPECIFICATIONS			ENVIRONMENTAL SPECIFICATIONS
Output Voltage Range		5V/ 9V/ 12V/ 15V/ 20V	Operating Temperature		10°C~40°C
Output Current Range		100mA-3000mA	Cooling		Convection
Output Power Range		65W Max	Temperature Coefficient		0.05%/°C
Short Circuit Protection		Automatic Recovery	Humidity		5~95%RH(non-condensing)
Over-Current Protection		Automatic Recovery	Storage Temperature		-20°C~+80%°C
Ripple and Noise		100mVp-p max	PHYSICAL SPECIFICATIONS
Turn On Time		20-30mS normal	Physical Specifications		66mm *66mm *29mm
Line Regulation		1% max	SAFETIES STANDARD
Output Regulation		±5%	Safeties Standard		62368 / 60950 / 61558
