OEM 20W PD Type C Fast Charger 5V 3A 9V 2.22A 12V 1.67A USB C Gan Wall Charger

Shenzhen Ying Yuan Electronics Co., Ltd.
Contact Now
    Buy cheap OEM 20W PD Type C Fast Charger 5V 3A 9V 2.22A 12V 1.67A USB C Gan Wall Charger from wholesalers

    Buy cheap OEM 20W PD Type C Fast Charger 5V 3A 9V 2.22A 12V 1.67A USB C Gan Wall Charger from wholesalers
    • Buy cheap OEM 20W PD Type C Fast Charger 5V 3A 9V 2.22A 12V 1.67A USB C Gan Wall Charger from wholesalers
    • Buy cheap OEM 20W PD Type C Fast Charger 5V 3A 9V 2.22A 12V 1.67A USB C Gan Wall Charger from wholesalers
    • Buy cheap OEM 20W PD Type C Fast Charger 5V 3A 9V 2.22A 12V 1.67A USB C Gan Wall Charger from wholesalers

    OEM 20W PD Type C Fast Charger 5V 3A 9V 2.22A 12V 1.67A USB C Gan Wall Charger

    Ask Lasest Price
    Brand Name : Fullpower
    Model Number : C2102
    Certification : FCC,UL,CE,UKCA,SAA,KC,PSE,CCC,etc
    Payment Terms : T/T, Western Union
    Supply Ability : 100000PCS/Day
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    OEM 20W PD Type C Fast Charger 5V 3A 9V 2.22A 12V 1.67A USB C Gan Wall Charger

    US AU UK EU Standard 20W Type-C PD USB Fast Charge Gan Wall Charger USB-C Charger


    Our service:

    1. Your inquiry related to our products or prices will be replied in 24hrs.
    2. Well-trained and experienced staffs to answer all your enquires in fluent English
    3. OEM&ODM.Make your own logo on product and packaging.
    4. Distributership are offered for your unique design and some of our current models
    5. Protection of your sales area, ideas of design and all your private information


    Data-sheet

    FEATURESSAFETIES APPROVALSPRODUCTS PICTURE

    v EFFICIENCY VI

    v 20W PD OUTPUT POWER

    v OVERCURRENT PROTECTION

    v SHORT CIRCUIT PROTECTION

    v INPUT PROTECTION

    v Interchangeable AC plugs


    v UL,FCC

    v CB,CE,UKCA

    v SAA,PSE,CCC,KC

    v REACH, ROHS


    TYPICAL MODEL LIST
    I/P VoltageTypical modelOutput VoltageOutput CurrentRipple & noiseEfficiency Level

    90 - 264V

    47 - 63HZ

    C21025V3000mA30mV6 L
    C21025V3000mA30mV6 L
    C21029V2220mA40mV6 L
    C21029V2220mA40mV6 L
    C210212V1670mA50mV6 L
    C210212V1670mA50mV6 L
    INPUT SPECIFICATIONSGENERAL SPECIFICATIONS
    Input Voltage90〜264VACPrimary to Secondary50MΩ MIN
    Input Frequency47〜63HzEfficiencyVI
    Input Current0.5A MaxStandby Power0.2W MAX
    Inrush Current40A MaxLeakage Current0.25mA MAX
    OUTPUT SPECIFICATIONSENVIRONMENTAL SPECIFICATIONS
    Output Voltage Range5V / 9V / 12VOperating Temperature10°C~40°C
    Output Current Range100mA-3000mACoolingConvection
    Output Power Range20W MaxTemperature Coefficient0.05%/°C
    Short Circuit ProtectionAutomatic RecoveryHumidity5~95%RH(non-condensing)
    Over-Current ProtectionAutomatic RecoveryStorage Temperature-20°C~+80%°C
    Ripple and Noise100mVp-p maxPHYSICAL SPECIFICATIONS
    Turn On Time20-30mS normalPhysical Specifications43.3mm *40.3mm *22.3mm
    Line Regulation1% maxSAFETIES STANDARD
    Output Regulation±5%Safeties Standard62368 / 60950 / 61558

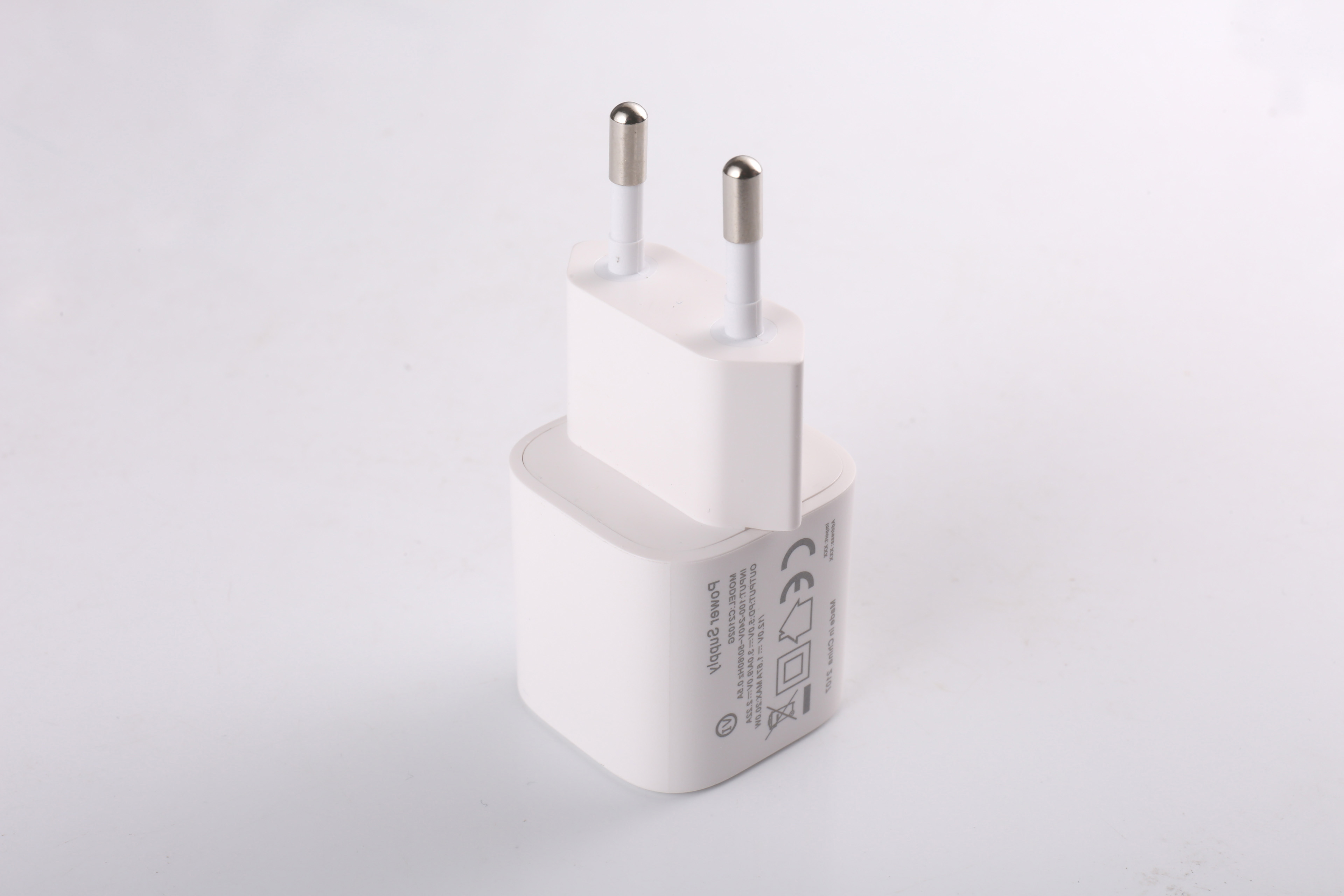

    Product Pictures


    Certification

    FQA:

    Q1. Are you manufacturer? If yes, in which city?
    A1:Yes, our factory located at Shenzhen city. Warmly welcome your visiting. Please kindly tell me your schedule before you come here, we will prepare to pick you up.


    Q2. What are your major products? And what is the warranty for your products?
    A2: Our major products are phone charger,usb cables,earphones,speaker and power
    bank.All our products have 12-24 months warranty.


    Q3. Do you offer free samples?
    A3: Yes. Free samples are available,you can contact us to get free sample now.


    Q4. Does the products are original?
    A4: Yes, all of our chargers are 100% original brand new.


    Q5. Do you provide high copy items?
    A5: Yes, we provide all brand original and OEM products to meet different requirements
    from different buyers.


    Q6. What is your delivery date?
    A6: Within 7 days for OEM ODM products fastest.
