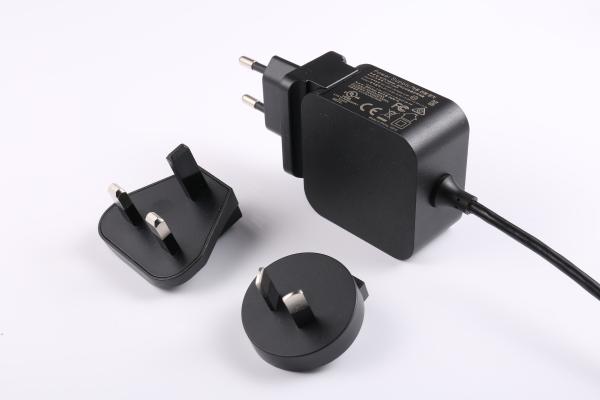

45W USB-C Power Adapter 5V3A 12V3A 15V3A 20V2.25A Or Fixed Output AU EU UK US Plugs

About Yingyuan:

Yingyuan is a high-tech cellphone accesso-ries manufacture focused on design,pro-duction and application of high perfor-mance.Yingyuan factory

was established in 2006,located in Shenzhen City,Guang-dong Province, More than 16 year experience inmobile phone accessories industry,Shenzhen

Yingyuan electronics Co.,Ltd has been dedicated for Manufacturing and Sourcing quality products with very compet-itive price for customers in

more than 80 countries:mainly trading company,whole-saler,on-line & off-line store owners from USA.Canada,Germany,Italy,Australia,Mexi-co.Peru.

Russia.Ukrain etc.

FEATURES		SAFETIES APPROVALS		PRODUCTS PICTURE
v EFFICIENCY VI v 45W PD OUTPUT POWER v OVERCURRENT PROTECTION v SHORT CIRCUIT PROTECTION v INPUT PROTECTION v Interchangeable AC plugs		Interchangeable Plug v UL,FCC v CB,CE,UKCA v SAA,PSE,CCC,KC v REACH, ROHS
TYPICAL MODEL LIST
I/P Voltage	Typical model	Output Voltage	Output Current	Ripple & noise		Efficiency
90 - 264V 47 - 63HZ	C803	5V	3000mA	30mV		6 Level
	C803	9V	3000mA	30mV		6 Level
	C803	12V	3000mA	40mV		6 Level
	C803	15V	3000mA	40mV		6 Level
	C803	20V	2250mA	50mV		6 Level
	C803	5V	3000mA	50mV		6 Level
INPUT SPECIFICATIONS			GENERAL SPECIFICATIONS
Input Voltage		90〜264VAC	Primary to Secondary		50MΩ MIN
Input Frequency		47〜63Hz	Efficiency		VI
Input Current		0.5A Max	Standby Power		0.2W MAX
Inrush Current		40A Max	Leakage Current		0.25mA MAX
OUTPUT SPECIFICATIONS			ENVIRONMENTAL SPECIFICATIONS
Output Voltage Range		5V/ 9V/ 12V/ 15V/ 20V	Operating Temperature		10°C~40°C
Output Current Range		100mA-3000mA	Cooling		Convection
Output Power Range		45W Max	Temperature Coefficient		0.05%/°C
Short Circuit Protection		Automatic Recovery	Humidity		5~95%RH(non-condensing)
Over-Current Protection		Automatic Recovery	Storage Temperature		-20°C~+80%°C
Ripple and Noise		100mVp-p max	PHYSICAL SPECIFICATIONS
Turn On Time		20-30mS normal	Physical Specifications		58mm *58mm *29mm
Line Regulation		1% max	SAFETIES STANDARD
Output Regulation		±5%	Safeties Standard		62368 / 60950 / 61558

FQA:
1. Q: How does your company do regarding quality control?
A: We do 5 times strict quality control inspection before shipment to assure best quality.
2. Q: I'd like to visit your latest products and quotations, how can I get them?
A: Welcome to contact us directly by online messenger, Trademanager or Whatsapp for latest catalogues. Send us inquiry or direct email is welcome too.
3. Q: Can you accept small orders?
A: Yes, small orders are accepted. Just let us know how many pieces you need.
4. Q: Can you do OEM & ODM?
A: Yes, we do OEM & ODM orders. Just give us your design. We will make samples for you soon.
5. Q: Can you supply me samples?
A: Yes, we can. Welcome to contact us for further information.
6. Q: What is the packaging for your product?
A: Our product have retail packaging with good quality, and we also can do customized packaging for our OEM customer. Please contact us and inform the packing details you like.Packing sample takes 7 days. Thanks.

We are specialized in the design, manufacture of 5W to 120W power supplies, vehicle power adapters, USB chargers, and 100W to 3600W battery chargers. Almost all our products are with safety approvals such as UL, CE, GS, RCM, PSE, KC, KCC, BS, CCC, and so on. Our customers are from all over the world including the United States, Canada, Europe, Japan, Korea, and so on.

Our R& D department has more than 30 professional technicians and engineers. During these years, we have developed hundreds of products and obtained more than 30 patents. Our battery charger and usb charger factory is equipped with a total of 8 automatic production lines. And thanks to modern production and testing devices, our factory stable output can reach 2.4Millions units/ month.

Always attaching great importance to product quality and environmental protection, we are approved by the ISO9001 quality management system and ISO14001 environment management system. Over the years, our factory has won credibility from numerous Chinese and international customers. Our ideas are Integrity, Dedication, Practicability, innovation and to be one of the leaders in this industry. Warmly welcome you to visit us and make win-win cooperation!
