OCP OLP OVP DC 180W Battery Charger For Ebike Electric Vehicle Scooter

180W Battery Charger For Ebike Electric Vehicle Scooter Charger Golf Car Robot EV E-Bike Charger

深圳市盈源电子有限公司 Shenzhen YingYuan Electronics Co., Ltd Address:The 4-7th Floor, Building 8, HongYe Industrial Park, XiXiang Town, BaoAn District, ShenZhen, China
Specifications			PRODUCTS PICTURE
180W BATTERY CHAEGER l AC Input Voltage Range:AC100V- AC 240V l AC Input Frequency: 45～65HZ l AC Power Factor Correction: ≥0.98 l Output Voltage:12V～60V l Output Current:12A(Max) l Full Load Efficiency: ≥90% l Shock & Vibration: 10～50HZ 2G 10 minutes,X,Y,Z /60 minutes l Operating Temperature: -20ºC～+45ºC(-20ºF～+113ºF) l Storage Temperature: -40ºC～+85ºC(-40ºF～+185ºF) l Dimensions (mm):(L)190х(W)80х(H)42 l Net Weight: 0.54kg
TYPICAL MODEL LIST
Charger Model	Rated Input Voltage	Barrery Standard Voltage	Maximum charging Current	Maximum charging Current
AP-PN180CH01460120	100-240	12	14.6	12
AP-PN180CH02920060	100-240	24	29.2	6
AP-PN180CH04200040	100-240	36	42	4
AP-PN180CH05460030	100-240	48	54.6	3
AP-PN180CH01200120	100-240	12	14.7	12
AP-PN180CH02400060	100-240	24	29.4	6
AP-PN180CH03600040	100-240	36	42	4
AP-PN180CH04800030	100-240	48	58.8	3
SPECIFICATIONS
AC Input Voltage Range:	AC100V- AC 240V	Shock & Vibration:	10～50HZ 2G 10 minutes,X,Y,Z /60 minutes
AC Input Frequency:	45～65HZ	Operating Temperature:	-20ºC～45ºC(-20ºF～+113ºF)
AC Power Factor Correction:	≥0.98	Storage Temperature:	-40ºC～+85ºC(-40ºF～185ºF)
Output Voltage:	12V～60V	Dimensions (mm):	(L)190х(W)80х(H)42
Output Current:	12A(Max)	Net Weigh:	0.54kg
Full Load Efficiency:	≥90%	certifications	UL CE FCC RoHs
Protections	Thermal Self-Protection Charger will be stopped automatically when reaches to Maximum temperature , LED light will be red to warn it
	Short- circuit Protection When Short Circuit happened ,charger will turn off
	Reverse Connection Protection When the battery is polarity reversed ,the charger will cut off the connection between the circuit and the battery
	Battery Broken protection When some battery broke ,battery can not reach 100% full-charged ,charger will be shut down automatically
Application	Electric Bicycles/Tricycles/Scooters /Power tools and other electric-related equipment

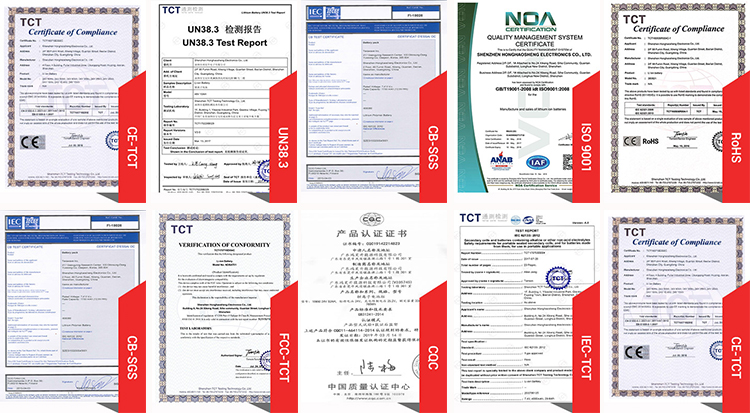

Certification

Application

We are specialized in the design, manufacture of 5W to 120W power supplies, vehicle power adapters, USB chargers, and 100W to 3600W battery chargers. Almost all our products are with safety approvals such as UL, CE, GS, RCM, PSE, KC, KCC, BS, CCC, and so on. Our customers are from all over the world including the United States, Canada, Europe, Japan, Korea, and so on.

Our R& D department has more than 30 professional technicians and engineers. During these years, we have developed hundreds of products and obtained more than 30 patents. Our battery charger and usb charger factory is equipped with a total of 8 automatic production lines. And thanks to modern production and testing devices, our factory stable output can reach 2.4Millions units/ month.

Always attaching great importance to product quality and environmental protection, we are approved by the ISO9001 quality management system and ISO14001 environment management system. Over the years, our factory has won credibility from numerous Chinese and international customers. Our ideas are Integrity, Dedication, Practicability, innovation and to be one of the leaders in this industry. Warmly welcome you to visit us and make win-win cooperation!
