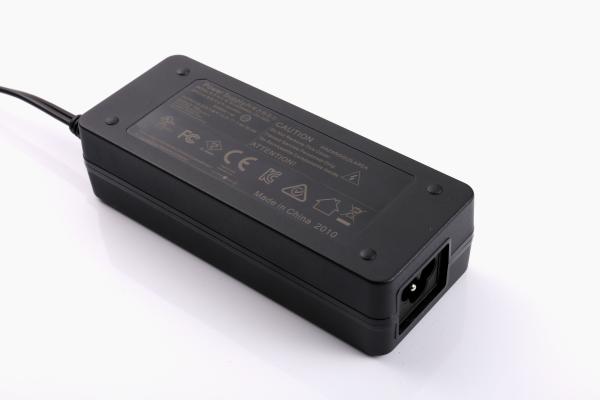

120W Scooter E BIKE Charger For Lithium Ion Battery 12V 20V 40V 50V

E-BIKE Charger Scooter Electric Bike Battery Charger For Lithium Ion Battery 12V 20V 40V 50V

FEATURES			SAFETIES APPROVALS		PRODUCTS PICTURE
v EFFICIENCY VI v 100-120W OUTPUT POWER v OVERCURRENT PROTECTION v SHORT CIRCUIT PROTECTION v INPUT PROTECTION v ROHS COMPLIANT			Desktop Type v UL, FCC v CB, CE, UKCA v CCC, KC, PSE v SAA v REACH, ROHS
TYPICAL MODEL LIST
I/P Voltage	Typical model		Output Voltage	Output Current	Ripple & noise		Efficiency Level
90 - 264V 47 - 63HZ	CGSW120D-120-10000		12V	10000mA	30mV		6 Level VI
	CGSW120D-150-8000		15V	8000mA	40mV		6 Level VI
	CGSW120D-180-6666		18V	6666mA	50mV		6 Level VI
	CGSW120D-200-6000		20V	6000mA	70mV		6 Level VI
	CGSW120D-360-3333		36V	3333mA	50mV		6 Level VI
	CGSW120D-480-2500		48V	2500mA	50mV		6 Level VI
INPUT SPECIFICATIONS				GENERAL SPECIFICATIONS
Input Voltage		90〜264VAC		Primary to Secondary		50MΩ MIN
Input Frequency		47〜63Hz		Efficiency		VI
Input Current		1.5A Max		Standby Power		0.5W MAX
Inrush Current		40A Max		Leakage Current		0.25mA MAX
OUTPUT SPECIFICATIONS				ENVIRONMENTAL SPECIFICATIONS
Output Voltage Range		12.00V-48.00V		Operating Temperature		10°C~40°C
Output Current Range		100mA-10000mA		Cooling		Convection
Output Power Range		120W Max		Temperature Coefficient		0.05%/°C
Short Circuit Protection		Automatic Recovery		Humidity		5~95%RH(non-condensing)
Over-Current Protection		Automatic Recovery		Storage Temperature		-20°C~+80%°C
Ripple and Noise		100mVp-p max		PHYSICAL SPECIFICATIONS
Turn On Time		20-30mS normal		Physical Specifications		172.4mm *72.4mm *33.4mm
Line Regulation		1% max		SAFETIES STANDARD
Output Regulation		±5%		Safeties Standard		62368 / 60950 / 60335 / 61558 / 60065 / UL1310

Certification

ABOUT Yingyuan:
Shenzhen Yingyuan co., Ltd. is a professional manufacturer of lithium battery charger, adjustable power supply, power adapters and other products. Covers an area of 12000 square meters, has 600 skilled workers and 16 years of production experience! From the selection of qualified materials to strict mass production testing, our quality control department pays attention to every detail to ensure that the products are qualified. With excellent quality, competitive price and excellent service, our products have been accepted by users and sold well in Europe, America, the Middle East and Asia! With strict quality management system and sincere service, we make steady progress in the current fierce competition. "Customer first, quality first, win-win cooperation" is our mission. Warmly welcome your presence and cooperation. We hope customers at home and abroad will pay attention to our products. If you require further information, please contact us directly. We can do more than you expect!

Q1. Can I have a sample order?
Yes. Mixed samples are also acceptable.

We are specialized in the design, manufacture of 5W to 120W power supplies, vehicle power adapters, USB chargers, and 100W to 3600W battery chargers. Almost all our products are with safety approvals such as UL, CE, GS, RCM, PSE, KC, KCC, BS, CCC, and so on. Our customers are from all over the world including the United States, Canada, Europe, Japan, Korea, and so on.

Our R& D department has more than 30 professional technicians and engineers. During these years, we have developed hundreds of products and obtained more than 30 patents. Our battery charger and usb charger factory is equipped with a total of 8 automatic production lines. And thanks to modern production and testing devices, our factory stable output can reach 2.4Millions units/ month.

Always attaching great importance to product quality and environmental protection, we are approved by the ISO9001 quality management system and ISO14001 environment management system. Over the years, our factory has won credibility from numerous Chinese and international customers. Our ideas are Integrity, Dedication, Practicability, innovation and to be one of the leaders in this industry. Warmly welcome you to visit us and make win-win cooperation!
