OCP OLP OVP EV Battery Charger For Aircraft Electric Washing Golf Cars

600W Battery Charger For Aircraft Electric Washing Golf Cars 12V 24V 36V 48V 60V 72V

深圳市盈源电子有限公司 Shenzhen YingYuan Electronics Co., Ltd Address:The 4-7th Floor, Building 8, HongYe Industrial Park, XiXiang Town, BaoAn District, ShenZhen, China
Specifications			PRODUCTS PICTURE
600W BATTERY CHAEGER l AC Input Voltage Range: AC100V/AC220V l AC Input Frequency: 45～65HZ l AC Power Factor Correction: ≥0.55 l Output Voltage:12V～90V l Output Current:25A(Max) l Full Load Efficiency: ≥90% l Shock & Vibration: 10～50HZ 2G 10 minutes,X,Y,Z /60 minutes l Operating Temperature: -20ºC～+45ºC(-20ºF～+113ºF) l Storage Temperature: -40ºC～+85ºC(-40ºF～+185ºF) l Dimensions (mm):(L)204х(W)100х(H)55 l Net Weight: 1.8kg
TYPICAL MODEL LIST
Charger Model	Rated Input Voltage	Battery Standard Voltage	Maximum charging Current	Maximum charging Current
AP-H/LF600CH01460250	110/220	12	14.6	25
AP-H/LF600CH02920200	110/220	24	29.2	20
AP-H/LF600CH04200150	110/220	36	42	15
AP-H/LF600CH05460120	110/220	48	54.6	12
AP-H/LF600CH07140100	110/220	60	71.4	10
AP-H/LF600CH08400080	110/220	72	84	8
AP-H/LF600CH01200250	110/220	12	14.7	25
AP-H/LF600CH02400200	110/220	24	29.4	20
AP-H/LF600CH03600150	110/220	36	44.1	15
AP-H/LF600CH04800120	110/220	48	58.8	12
AP-H/LF600CH06000100	110/220	60	73.5	10
AP-H/LF600CH07200080	110/220	72	88.2	8
SPECIFICATIONS
AC Input Voltage Range:	AC100V/AC220V	Shock & Vibration:	10～50HZ 2G 10 minutes,X,Y,Z /60 minutes
AC Input Frequency:	45～65HZ	Operating Temperature:	-20ºC～45ºC(-20ºF～+113ºF)
AC Power Factor Correction:	≥0.55	Storage Temperature:	-40ºC～+85ºC(-40ºF～185ºF)
Output Voltage:	12V～90V	Dimensions (mm):	(L)203х(W)100х(H)55
Output Current:	25A(Max)	Net Weigh:	1.8kg
Full Load Efficiency:	≥90%	certifications	UL CE FCC RoHs
Protections	Thermal Self-Protection Charger will be stopped automatically when reaches to Maximum temperature , LED light will be red to warn it
	Short- circuit Protection When Short Circuit happened ,charger will turn off
	Reverse Connection Protection When the battery is polarity reversed ,the charger will cut off the connection between the circuit and the battery
	Battery Broken protection When some battery broke ,battery can not reach 100% full-charged ,charger will be shut down automatically
Application	Forklift/ground washer/electric motorcycle and so on

MECHANICAL SPECIFICATION

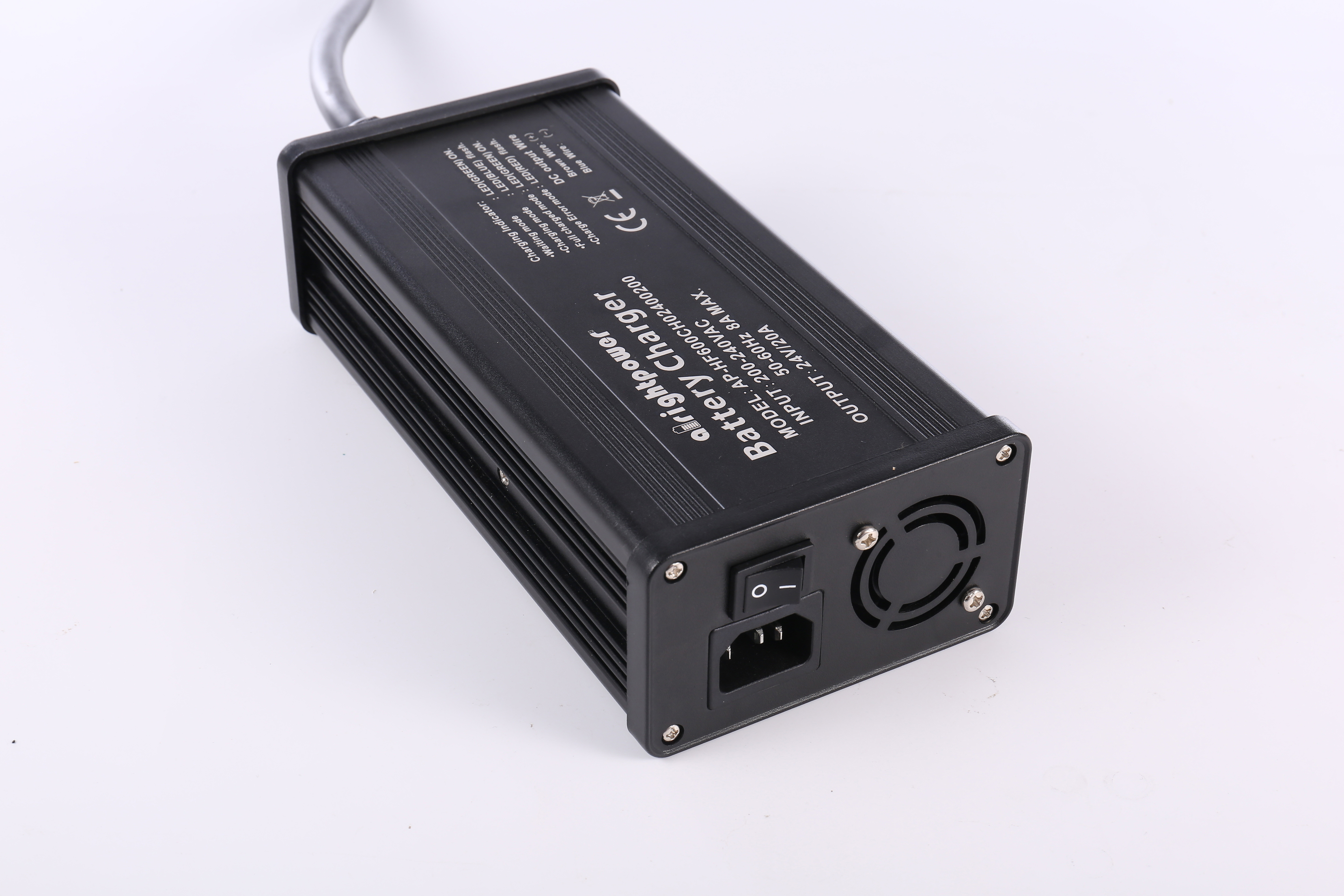

Picture Of Product

AC Plug

Certification

1) Thermal Self-Protection

Charger will be stopped automatically when reaches to Maximum temperature , LED light will be red to warn it

2) Short- circuit Protection

When Short Circuit happened ,charger will turn off

3) Reverse Connection Protection

When the battery is polarity reversed ,the charger will cut off the connection between the circuit and the battery

4) Battery Broken protection

When open circuit happened ,the battery can not be 100% full-charged,charger will be shut down automatically

Advantage

ØFull automatic transition of cc cv and float / cut-off , Precise limit of voltage & current

ØHigh efficiency ≥ 90% , high performance , stable and durable

ØUsing three-stage charging mode : cc-cv-floating , charging more intelligent and safety, High saturation and lower calorie.

ØMulti-protection functions : protection for short circuit , over voltage, over-temperature, reverse polarity protections

ØAluminium black and silver housing, light weight portable and reliable
